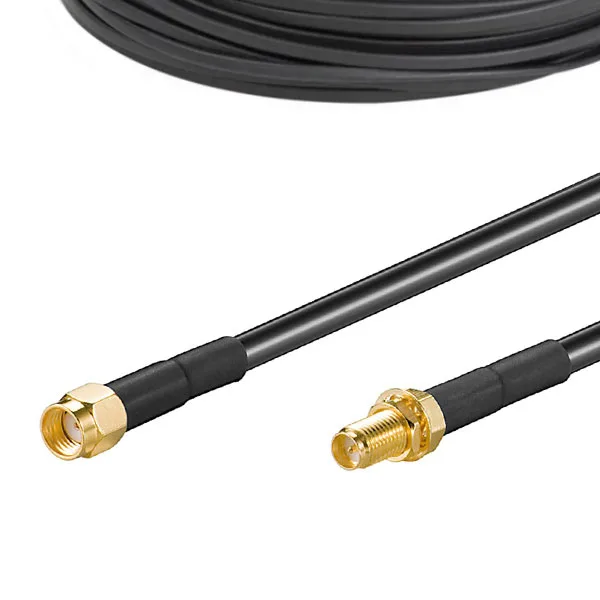

WLAN Antenna Extension Cable RP-SMA Male/RP-SMA Female – 1 m
Extension cable RP-SMA male to RP-SMA female, 1 m for WLAN antennas, low-loss, compatible with 2.4 and 5.8 GHz frequencies.
SKU 8228-WT51675EAN 4040849512179Item type: AssembledGSM/GPRS
Description
|

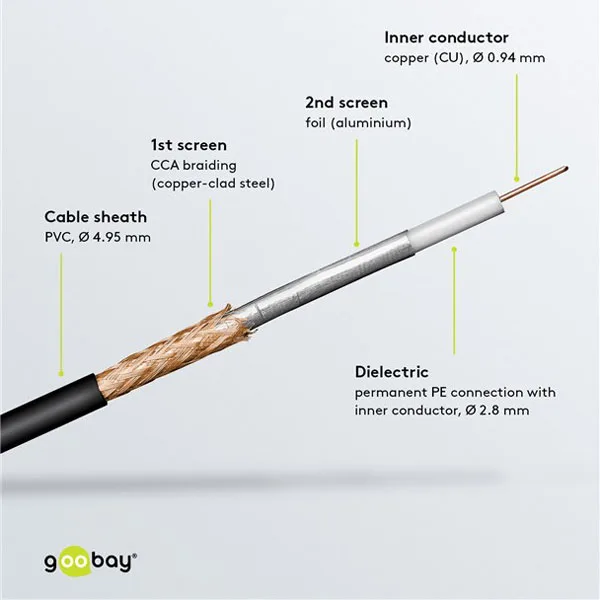

1-metre extension cable for WLAN antennas con connettori RP-SMA male / RP-SMA female, designed to position the antenna in the optimal spot and improve network coverage. The coaxial cable LMR 195 ensures low loss and reduced attenuation in the 2.4 GHz and 5 GHz bands. The copper (CU) conductor and gold-plated connectors ensure minimum transmission resistance, while the Ø 4.95 mm PVC sheath and high-quality SMA connectors provide strength and long service life. Maximum operating frequency: 5.8 GHz.
|

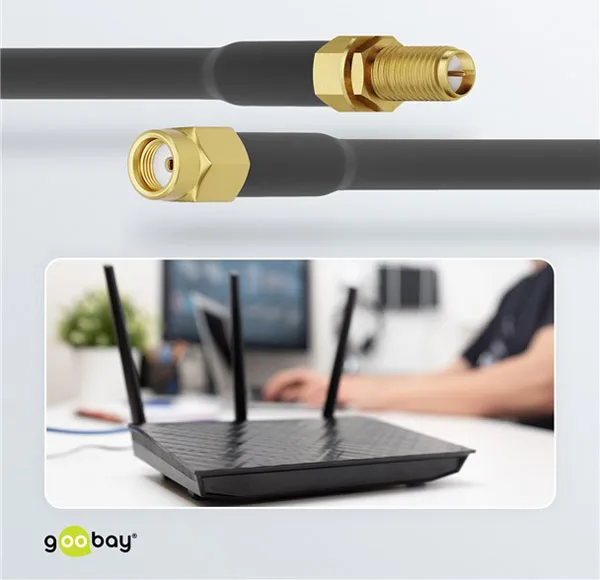

| High flexibility for positioning the antenna in the optimal spot for reception |
|
|
Technical details
| Connector 1 | RP-SMA plug |
|---|---|
| Connector 2 | RP-SMA socket |
| Cable type | LMR 195 |
| Length | 1 m |
| Inner conductor material | Copper (CU) |
| Impedance | 50 Ω |
| Colour | Black |
| Operating temperature | -20 °C ~ 80 °C |
