4×4 matrix keypad with 8 LEDs

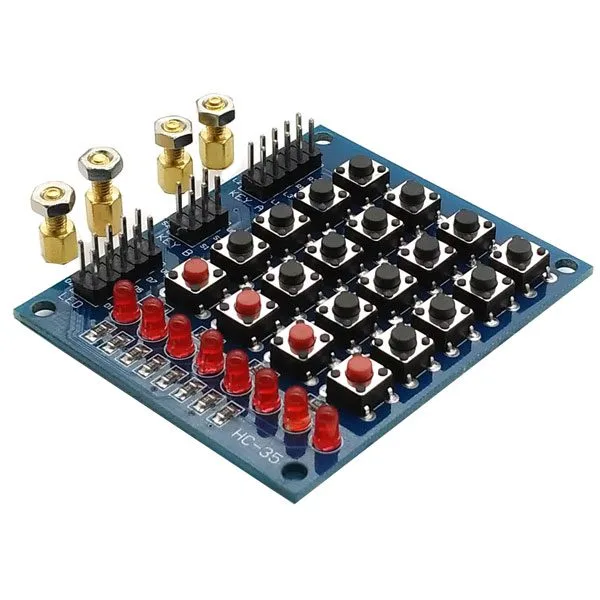

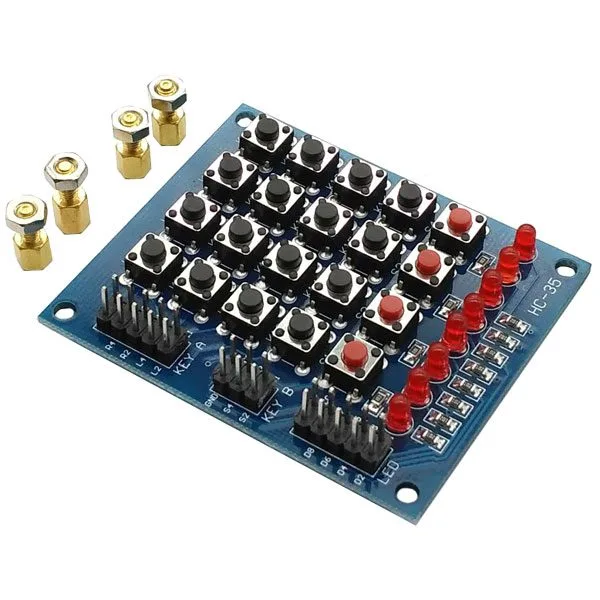

A simple, handy board with 16 push-buttons wired as a matrix (4x4), 4 push-buttons with pull-up resistors (1 kohm), 8 LEDs with their current-limiting resistors and connectors to get at the pins
4x4 matrix keypad with 8 LEDs - Image 1
4x4 matrix keypad with 8 LEDs - Image 3

SKU 8300-TST4X4M8LEDEAN 8219671115605Lighting: LEDItem type: Keypad, Shields & add-ons

Description

A simple, handy board with 16 push-buttons wired as a matrix (4×4), 4 push-buttons with pull-up resistors (1 kohm), 8 LEDs with their current-limiting resistors and connectors to get at the pins. Particularly suited to experimenting with Arduino, Fishino, Raspberry Pi and the like. Dimensions (mm): 60.3×50.8×11.3; weight: 16 grams. The pack contains: the board, 4 male-female hex spacers and 4 nuts.
