555 Square Wave Generator – 1 Hz to 200 kHz
Simple square wave signal generator from 1 Hz to 200 kHz based on the 555 chip
SKU 8300-YXA143EAN 8219671114745Brand: VariousItem type: KitProduct type: Oscilloscopes & signal analysisFunction generators
Description

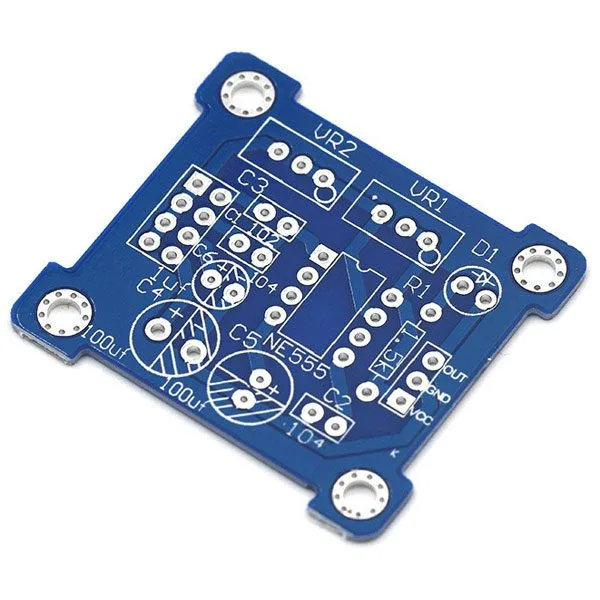

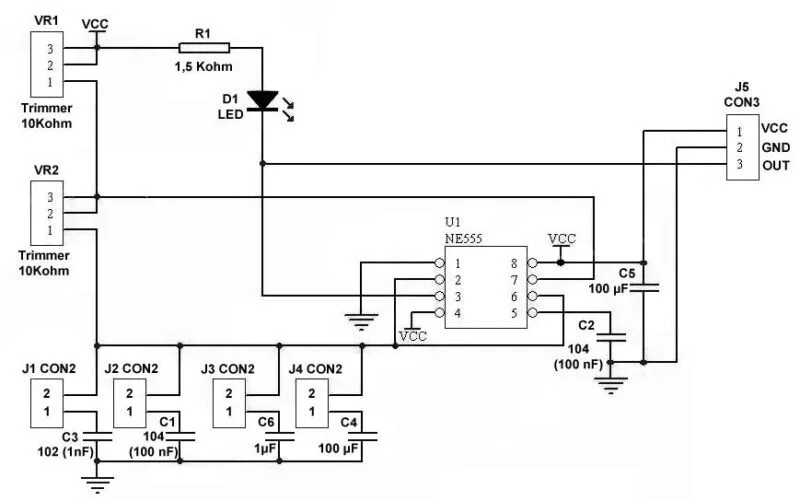

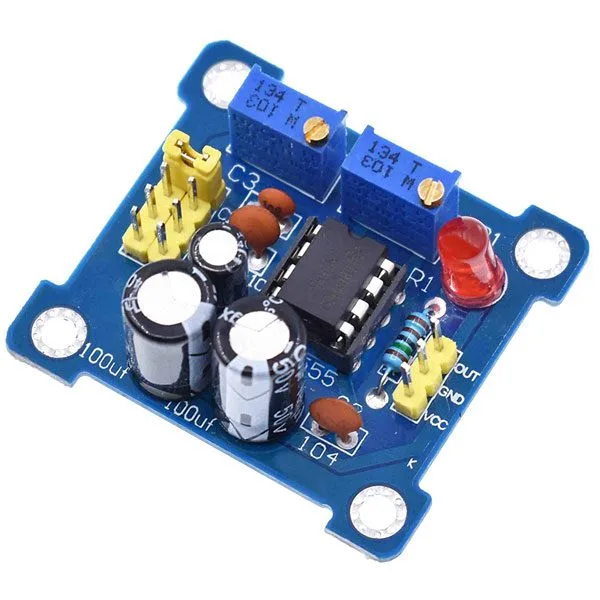

Simple square-wave signal generator from 1 Hz to 200 kHz based on the 555 chip. It features two trimmers for adjusting duty cycle and frequency, an LED that blinks according to the output frequency, and a 4×2 male pin connector for selecting the output frequency via a jumper.
Instructions in Italian
Technical specifications
- Maximum output current:
> = 15 mA (5 V supply, Vpp greater than 50%)
> = 35 mA (12 V supply, Vpp greater than 50%) - Frequency range (adjustable based on jumper position):
– from 1 Hz to 50 Hz
– from 50 Hz to 1 kHz
– from 1 kHz to 10 kHz
– from 10 kHz to 200 kHz
Technical details
| Supply voltage | 5 to 15 VDC |
|---|---|
| Current draw | max. 35 mA |
| Output amplitude | from 4.2 Vpp to 11.4 Vpp (depending on input voltage) |
| Dimensions (mm) | 40.6 x 36.4 x 15 |
