999-second timer with display – assembled

999-second countdown timer with a 3-digit red LED display

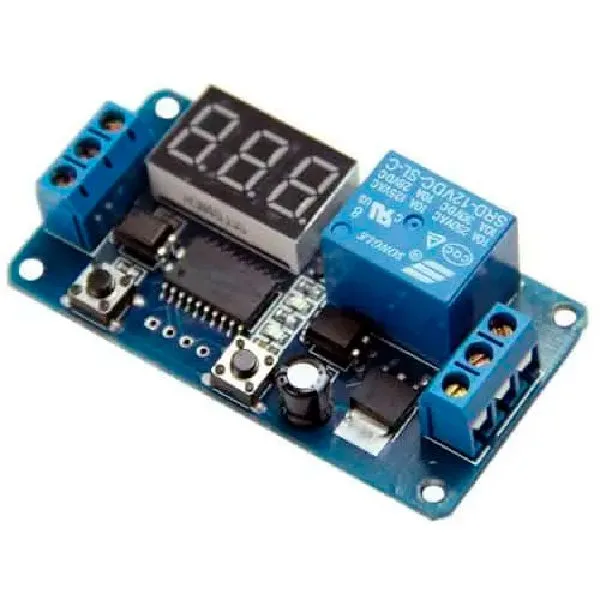

999-second timer with display - assembled - Image 1

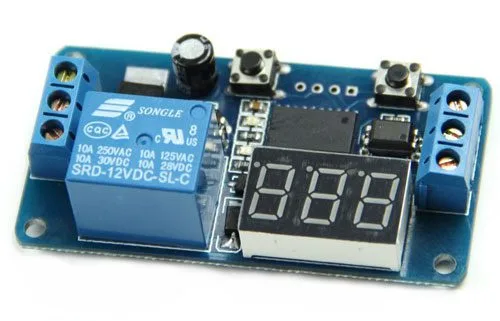

999-second timer with display - assembled - Image 3

SKU 2846-TIMER999EAN 8219671063562Item type: Assembled

Description

999-second countdown timer with a 3-digit red LED display. It has 2 buttons to set the time, 2 status LEDs and 1 output relay able to switch loads up to 250 Vac/2 A and 30 Vdc / 10 A. The set time is kept even if the power fails. The countdown starts when +12 Vdc is applied to the “IN” pin. Power supply: 12 Vdc, size (mm): 67x36x17.5 mm.

Technical details

Power supply 12 Vdc
size (mm) 67x36x17.5 mm
