Adjustable DC-DC Step-Down Module 4.5-28 V 3 A

Step-Down DC/DC converter with a particularly compact footprint (22.3x17x4.4 mm), able to convert a DC input voltage between 4.5 and 28 volts into an adjustable output voltage between 0.8 and 25 volts

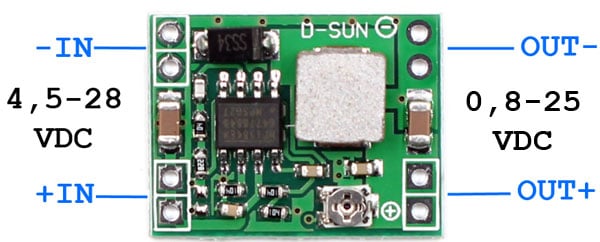

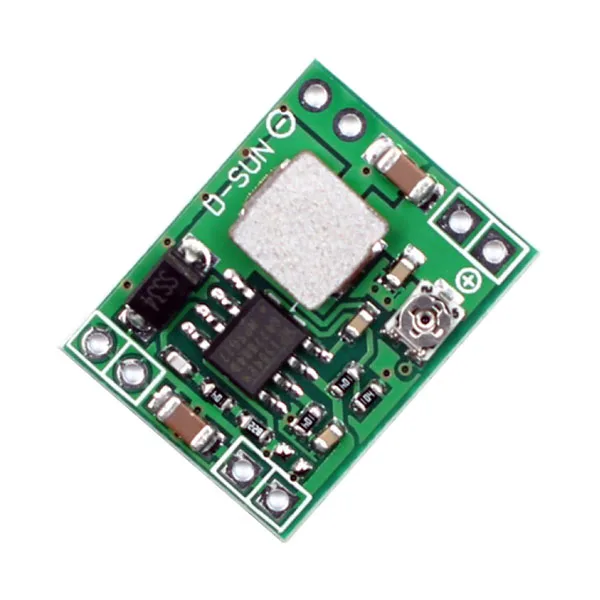

Adjustable DC-DC Step-Down Module 4.5-28 V 3 A - Image 1

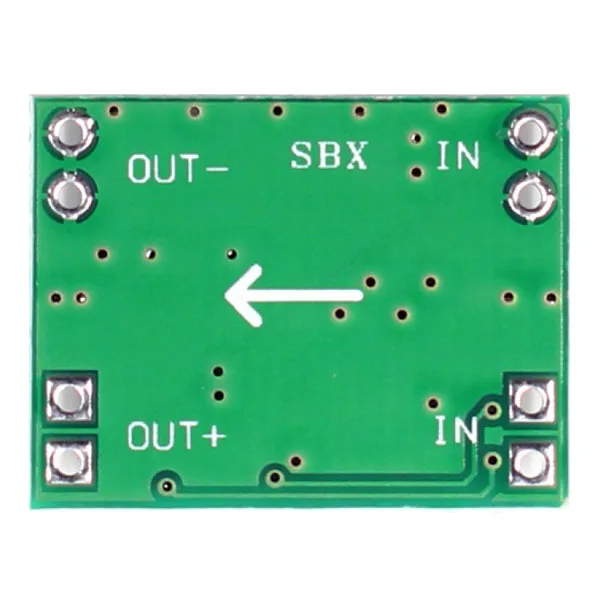

Adjustable DC-DC Step-Down Module 4.5-28 V 3 A - Image 3

SKU 3085-MP1584ADJEAN 8219671113625Output voltage: Manually adjustableItem type: AssembledConversion type: Step-down

Description

Step-Down DC/DC converter with a particularly compact footprint (22.3x17x4.4 mm), able to convert a DC input voltage between 4.5 and 28 volts into an adjustable output voltage between 0.8 and 25 volts. The maximum available current is about 3 A.
Technical specifications
Documentation and useful links

Technical details

Input voltage 4.5 VDC to 28 VDC
Output voltage adjustable from 0.8 to 25 VDC
Maximum current 3 A
Efficiency 96%
Dimensions (mm) 22.3x17x4.4
