Adjustable Laboratory Bench Power Supply 0-30V / 0-10A

Laboratory power supply with voltage adjustable up to 30V and current up to 10A. LED display for precise monitoring and overload protection.

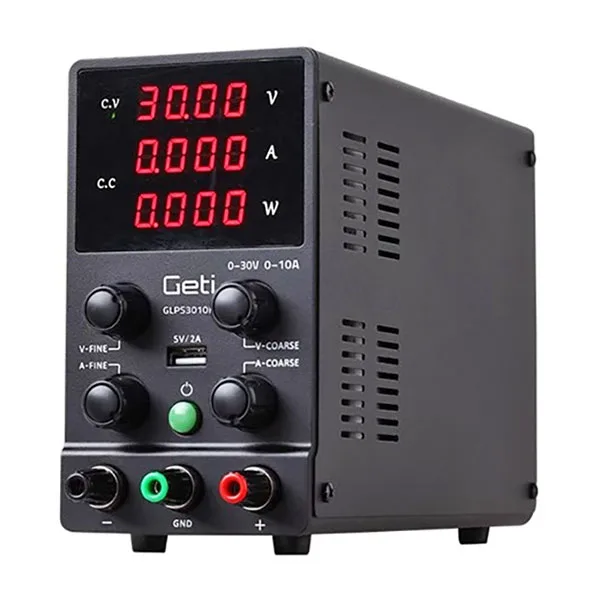

Adjustable Laboratory Bench Power Supply 0-30V / 0-10A - Image 1
Adjustable Laboratory Bench Power Supply 0-30V / 0-10A - Image 3
Adjustable Laboratory Bench Power Supply 0-30V / 0-10A - Image 4
Adjustable Laboratory Bench Power Supply 0-30V / 0-10A - Image 5
Adjustable Laboratory Bench Power Supply 0-30V / 0-10A - Image 6
Adjustable Laboratory Bench Power Supply 0-30V / 0-10A - Image 7

SKU 8240-GLPS3010HEAN 8219671110556Output voltage: Manually adjustable

Description

This laboratory power supply gives precise adjustment of the voltage from 0 to 30V and of the current up to 10A, to suit a wide range of electronics applications. Coarse and fine adjustment controls let you set the values you want with the greatest precision.

The backlit LED display shows voltage, current and power in real time, for immediate, accurate monitoring. Overload and short-circuit protection keeps use safe, protecting both the user and the connected devices.

Compact and rugged, it is ideal for laboratories, workshops, production lines and schools. The 5V/2A USB output also powers extra devices, which makes it even more versatile.

Reliable, stable and safe, this power supply is the perfect answer for testing, repair work and electronics experiments.
Key features
  • Single-channel DC power supply
  • Adjustable voltage and current

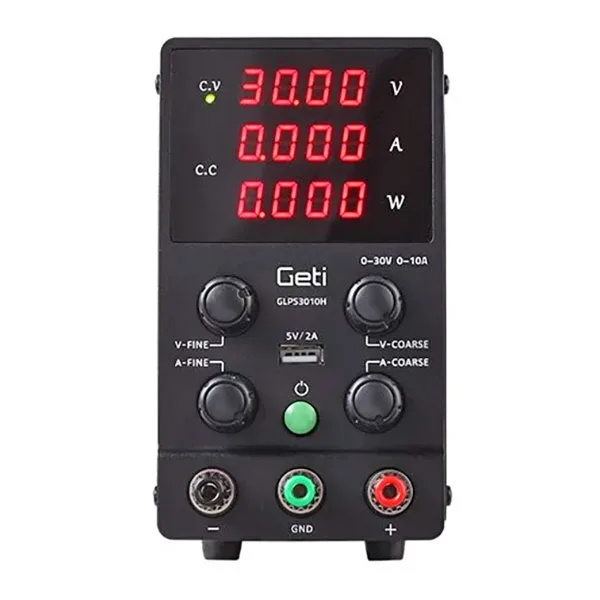

  • Backlit three-section LED display for U(V), I(A) and P(W)
  • Compact, high-quality design
  • Overload protection
  • USB output 5V / 2A
Technical specifications
  • Load stability: ≤0.2% ± 3 mA
  • Ripple and noise: ≤20mAms
  • Display resolution: current 0.001 A / 0.01 A
  • Dimensions: 220 x 85 x 150 mm
What is in the box
  • Bench power supply 0-30Vdc / 0-10A

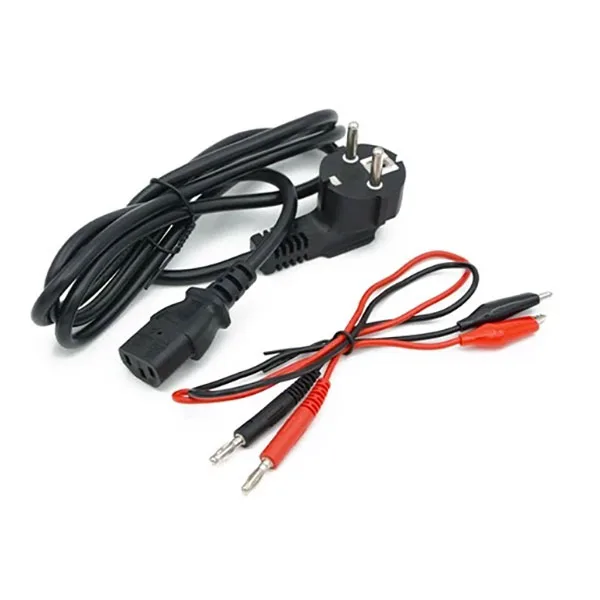

  • Mains cable with Schuko plug
  • Lead with crocodile clips
  • User manual in English

Technical details

Output voltage range 0 - 30 Vdc, coarse and fine adjustment
Output current range 0 - 10 A, coarse and fine adjustment
Mains supply voltage 220-230V AC, 50 Hz
Voltage stability ≤0.2% ± 3 mV
Minimum voltage 0.3 - 0.4% ± 3 mV
Load stability ≤0.5% ± 3 mV
Ripple and noise ≤150mVp-p
Current stability ≤0.2% ± 3 mA
Display accuracy 0.5% ± 2 digits
Display resolution voltage 0.01 V / 0.01 V
Operating temperature 0 °C - 40 °C
Operating humidity <80% RH
Standard fuse T5A
Weight 1.4 kg
