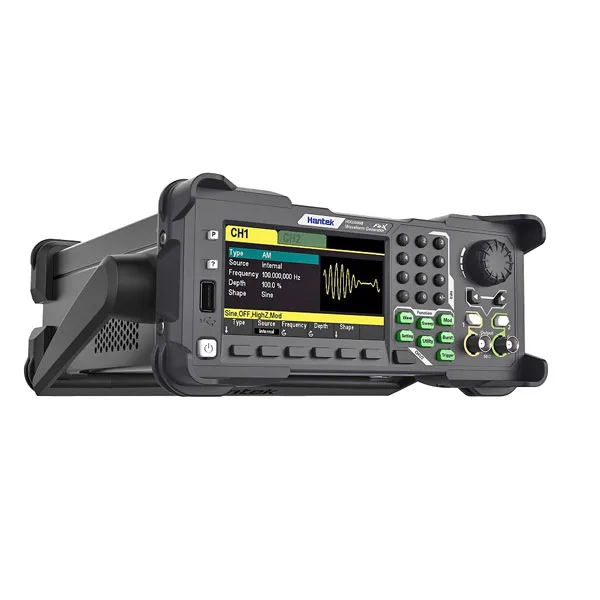

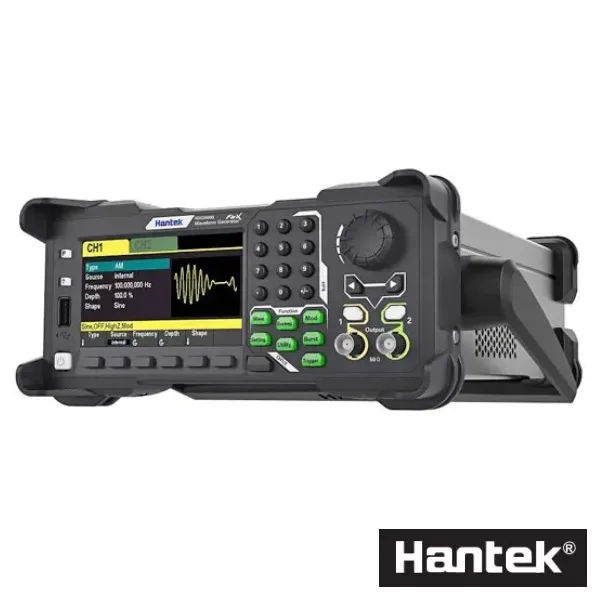

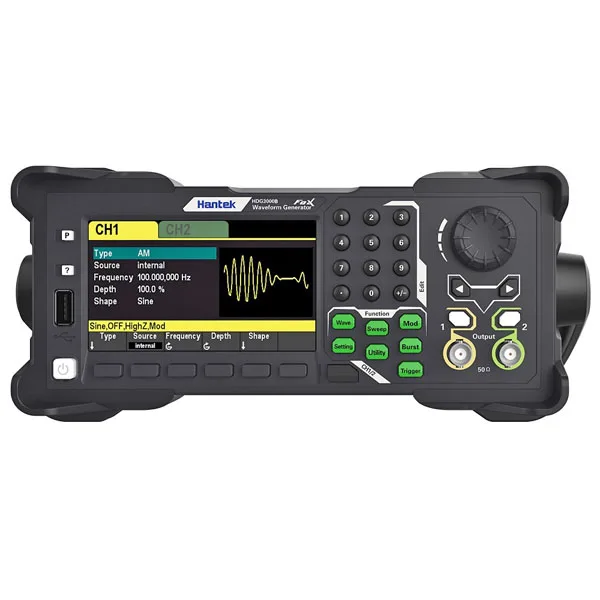

Arbitrary Waveform Generator – 2 Channels 25 MHz

• Sampling rate up to 300 MSa/s, no distortion of analogue waveforms.
• 16 bit vertical resolution guarantees waveform amplitude accuracy.
• Twin channels with identical performance, equivalent to two independent signal sources.
• Memory depth up to 2 Mpts allows more waveform cycles and finer waveform detail.
• 4.3 inch colour TFT LCD screen, clear and intuitive user interface.
• Comprehensive modulation, supporting AM, DSB – AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
• Frequency resolution 1 μHz.
• Built-in 80 MHz high-resolution frequency counter.
• Standard communication interface: high-speed USB 2.0 on the front (USB host) and full-speed USB 2.0 on the rear (USB device).
• Over 160 types of arbitrary signal, such as: exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.

• • Channels: 2
  • Record length: 2 Mpts
  • Frequency range: 25 MHz
  • Sampling rate: 300 MSa/s
  • Voltage resolution: 16 Bits
  • Waveform:

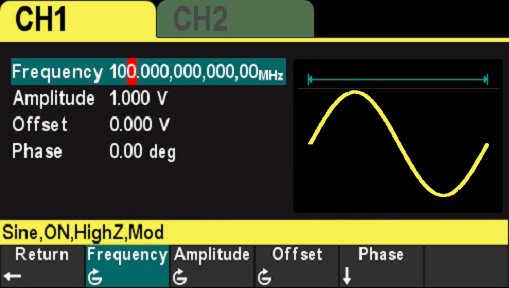

    Standard waveform output: sine, square, triangle, pulse, noise, harmonics.
    Arbitrary waveform output: 160 types of arbitrary waveform, including: exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage, etc.
  • Waveform frequency:
    Harmonic: 1 μHz ~ 10 MHZ
  • Noise (3 db): Bandwidth 100 MHz
  • Arbitrary wave: 1 μHz ~ 15 MHZ
  • Resolution: 1 μHz
  • Accuracy: ±1 ppm, 18~28℃

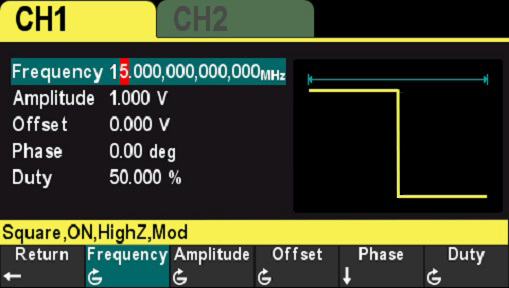

  • Square wave properties:
    Rise/Fall time: Typical (1 kHz, 1 Vpp) / ≤9ns
    Overshoot: Typical (100 kHz, 1 Vpp) / ≤5%
    Duty cycle: 0.001% ~ 99.999%; The range varies with the frequency
    Asymmetry: 1% of the period plus 4ns

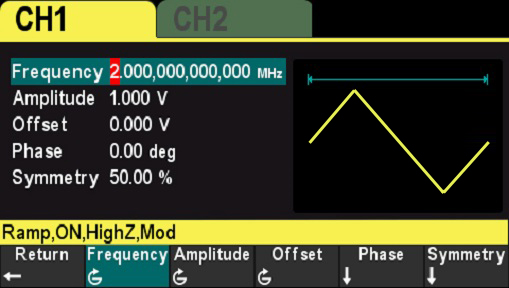

  • Triangle wave properties:
    Linear: ≤ 1% of peak output (typical, 1 kHz, 1 Vpp, symmetry 100%)
    Symmetry: 0% ~ 100%
  • Pulse wave properties:
    Cycle: 67 ns~1 Ms
    Pulse: ≥16 ns
  • Rise/Fall time: ≥ 9 ns
  • Overshoot: Typical (1kHz, 1Vpp) / ≤5%

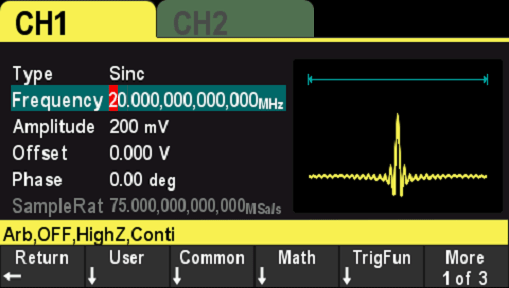

  • Arbitrary wave properties:
    Wavelength: 2M
    Vertical resolution: 16 Bits
    Sampling rate: 1μSa/s~62.5 MSa/s, resolution 1μSa/s
    Time of rise/fall: Ns of 9 or higher
    Overshoot: Typical (1Vpp) / ≤5%
  • Harmonic properties:
    Harmonic order: ≤16
    Harmonic type: even harmonics, odd harmonics, all harmonics
    Harmonic amplitude: the amplitude of every harmonic can be set.
    Harmonic phase: the amplitude of every harmonic can be set.
  • Amplitude properties (50Ω termination):
    Amplitude range: ≤10MHz: 1mVpp ~ 10Vpp; ≤55MHz: 1mVpp ~ 5.5Vpp; ≤80MHz:1mVpp ~ 3.5Vpp; ≤100MHz:1mVpp ~ 2Vpp;
  • Accuracy: Typical (1kHz sine wave, 0V offset, > 10mVPP) /± 1% setting value ± 5mVpp
  • Units: Vpp, mVpp, Vrms, dBm (50Ω impedance)
  • Resolution: 1mVpp
  • Offset properties (50Ω termination):
    Range: ±5Vpkac+cc
    Accuracy: ±(1% of the set value + 5mV + 1% of the amplitude)
  • Waveform output: Impedance: 50 Ω
  • Modulation type: AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM
    AM:
    Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
    Modulation source: internal, external and other channels
    Signal modulation: sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
    Modulation frequency: 2 mHz to 1 MHz
    Modulation depth: 0% ~ 120%DSB-AM:
    Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
    Modulation source: internal, external and other channelsSignal modulation: sine, square, triangle waves, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
    Modulation frequency: 2 mHz to 1 MHz
    Modulation depth: 0% ~ 120%FM:
    Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
    Modulation source: internal, external and other channelsSignal modulation: sine, square, triangle waves, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
    Modulation frequency: 2 mHz to 1 MHz

PM:
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source: internal, external and other channels
Signal modulation: sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
Modulation frequency: 2 mHz to 1 MHz
Phase deviation: 0° to 360°

ASK:
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source: internal and external
Signal modulation: 50% duty cycle square wave
Modulation frequency: 2 mHz to 1 MHz

FSK
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source: internal and external
Signal modulation: 50% duty cycle square wave
Modulation frequency: 2 mHz to 1 MHz

PSK
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source: internal and external
Signal modulation: 50% duty cycle square wave
Modulation frequency: 2 mHz to 1 MHz

BPSK
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source: internal and external
Data source: PN15, PN21, 01, 10
Modulation frequency: 2 mHz to 1 MHz

QPSK
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source: internal
Data source: PN15, PN21
Modulation frequency: 2 mHz to 1 MHz

3FSK
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source: internal
Signal modulation: 50% duty cycle square wave
Modulation frequency: 2 mHz to 1 MHz

4FSK
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Modulation source: internal
Signal modulation: 50% duty cycle square wave
Modulation frequency: 2 mHz to 1 MHz

OSK
Carrier: sine wave
Modulation source: internal and external
Shock time: 8 ns – 4.99975 ms
Frequency: 2 mHz to 1 MHz

PWM
Carrier: sine wave
Modulation source: internal, external and other channels
Signal modulation: sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
Frequency: 2 mHz to 50 kHz
Duty cycle deviation: 0% ~ 50%

External modulation input
Input range: AM, DSB-AM, FM, PM, OSK, PWM: 75mVRMS ~ ± 5Vac +dc / ASK, FSK, PSK: TTL level
Input bandwidth: 50 KHz
Input impedance: 10 KΩ

Frequency sweep properties
Carrier: sine wave, square wave, triangle wave, pulse wave, harmonic wave, arbitrary wave (except DC)
Type: linear
Direction: up
Frequency sweep time: 1 ms ~ 50 Ks
Hold/return time: 0ms ~ 50Ks
Trigger source: internal, external, manual

Frequency counter
Measurement functions: frequency, period, positive/negative pulse width, duty cycle
Frequency: 1 μHz ~ 80 MHZ
Gate time: 10ms~16s
Input signal range: 0 ~ 3.3 V

Trigger properties
Trigger input
Level: TTL compatible
Slope: rising or falling (selectable)
Pulse width: >100ns

Trigger output
Level: TTL compatible
Pulse width: >60ns
Maximum frequency: 1MHz

Reference clock
External reference input
Lock range: 10 MHz ± 50 Hz
Level: low level: 0 ~ 400 mV, high level: 2.5 V ~ 5 V
Locking time: <2s
Input impedance: 50 Ω, DC coupling

Internal reference output
Frequency: 10 MHz + 50 Hz
Level: 3.3 Vpp
Output impedance (typical): 50 Ω, DC coupling

Sync output:
Level: TTL compatible
Impedance: 50Ω, nominal

• • Interface: USB host, USB device
  • Display: 4.3 inch colour TFT LCD
  • Power supply:
    100-120VACRMS (±10%),45Hz to 440Hz, CATⅡ
    120-240VACRMS (±10%),45Hz to 66Hz, CATⅡ
  • Power consumption: <30 W
  • Fuse: T, 0.5 A, 250 V, 5 x20 mm
  • Operating temperature: 10℃ ~ 40℃
  • Storage temperature: -20℃ ~ 60℃
  • Dimensions (WxHxD): 308 mm x 232 mm x 110 mm
  • Weight: 3.09 kg
