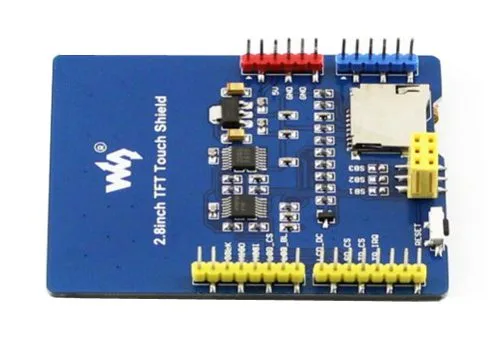

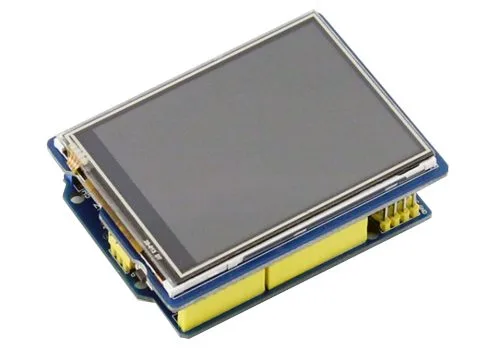

Arduino TFT touch screen shield 2.8”
Arduino shield made up of a 2.8" TFT LCD display with resistive touch screen, ST7789V graphics controller, 320x240 pixel resolution, 262,000 colors, white LED backlight, SD card slot and SPI interface
SKU 2850-2.8INCHSHIELDEAN 8219671077262Item type: Assembled, Shields & add-onsArduino, Arduino compatible
Description
Shield for Arduino consisting of a 2.8″ TFT LCD display with resistive touch screen, ST7789V graphics controller, 320×240 pixel resolution, 262,000 colors, white LED backlight, SD card slot, and SPI interface. Ideal for applications that need to display data, photos, and videos; it can be interfaced with PIC microcontrollers, Arduino, etc. The package includes only the shield with touch screen display.
N.B. As of September 2023, the managed version is Rev 2.1, which uses an ST7789V LCD controller, while previous revisions used HX8347D.
Technical specifications
- Display: TFT LCD with resistive touch screen
Documentation and useful links
Technical details
| Interface | LCD |
|---|---|
| LCD controller | ST7789V |
| Touch screen controller | XPT2046 |
| RGB colors | 262,000 |
| Resolution | 320x240 (pixels) |
| Display area dimensions (mm) | 57.6x43.2 |

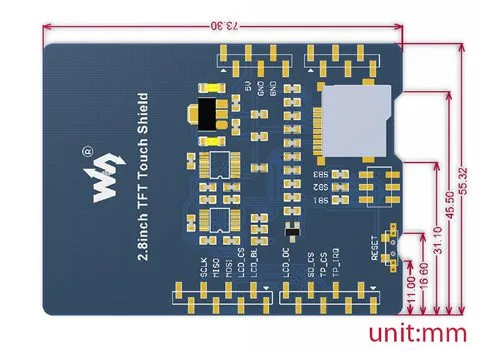

| Dimensions (mm) | 73.3x55.3 |
| I/O voltage | 3.3 V / 5 V |
