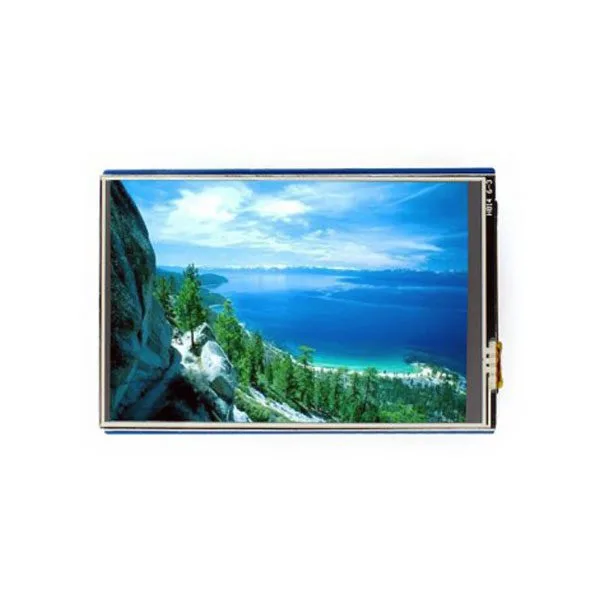

Arduino TFT Touch Screen Shield 3.5”

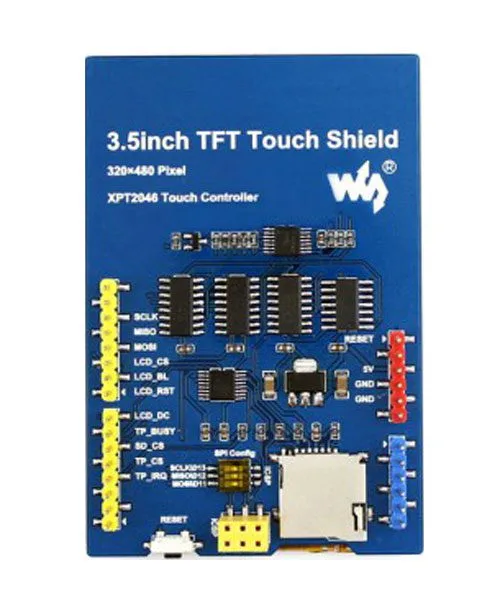

Shield for Arduino Uno built around a 3.5" TFT LCD display with resistive touch screen, ILI9486 graphics controller, 480x320 pixel resolution, 65,000 colours, white LED backlight, SD card slot and SPI interface
SKU 2850-3.5INCHSHIELDEAN 8219671111348Item type: Assembled, Shields & add-onsArduino, Arduino compatible, Displays
Description

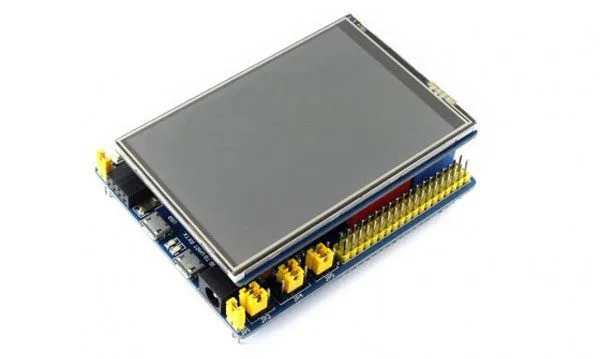

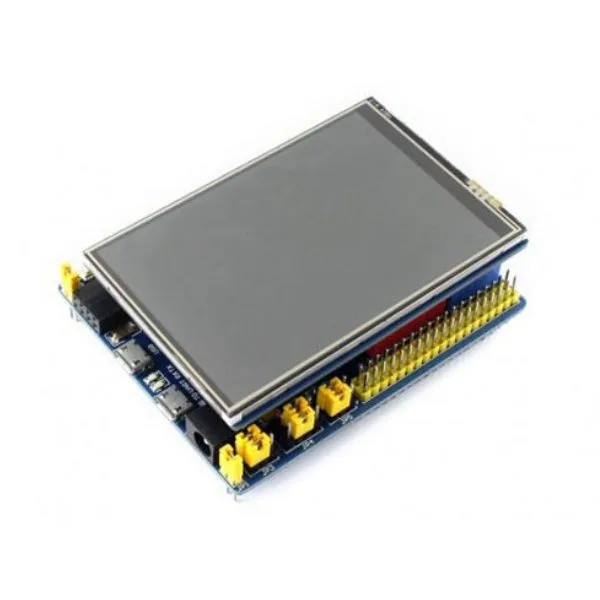

Shield for Arduino Uno consisting of a 3.5″ TFT LCD display with resistive touch screen, ILI9486 graphics controller, 480×320 pixel resolution, 65,000 colors, white LED backlight, SD card slot, and SPI interface. Ideal for applications that need to display data, photos, and videos. Designed to interface with Arduino Uno/Mega, it is also compatible with Fishino, Nucleo, Xnucleo, MAKERUNO, and UNO PLUS (see related products).
Note: the package includes only the shield with the touch screen display.
Technical Specifications
- Display: TFT LCD with resistive touch screen
Dimensions
Technical details
| Interface | SPI |
|---|---|
| LCD Controller | ILI9486 |
| Touch Screen Controller | XPT2046 |
| RGB Colors | 65,000 |
| Resolution | 480x320 (pixels) |
| Display Area Dimensions (mm) | 74.2x49.8 |
| I/O Voltage | 3.3 V / 5 V |
| Dimensions (mm) | 86x57.2x18 |
