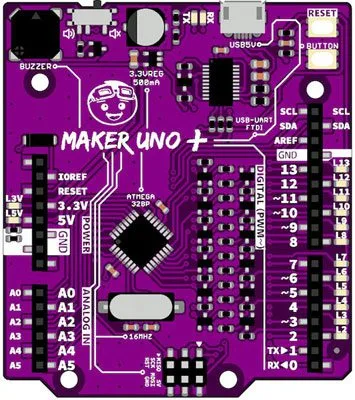

Maker UNO Plus

It is particularly suited to makers, students and hobbyists who have little grounding in basic electronics, or who want to start programming straight away without wasting time wiring up LEDs, pushbuttons and buzzers.

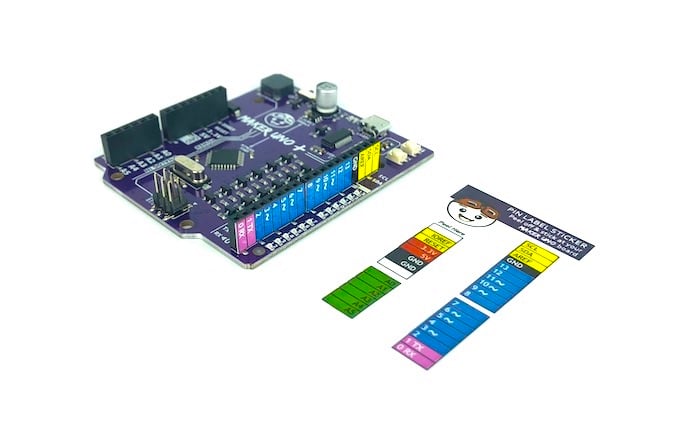

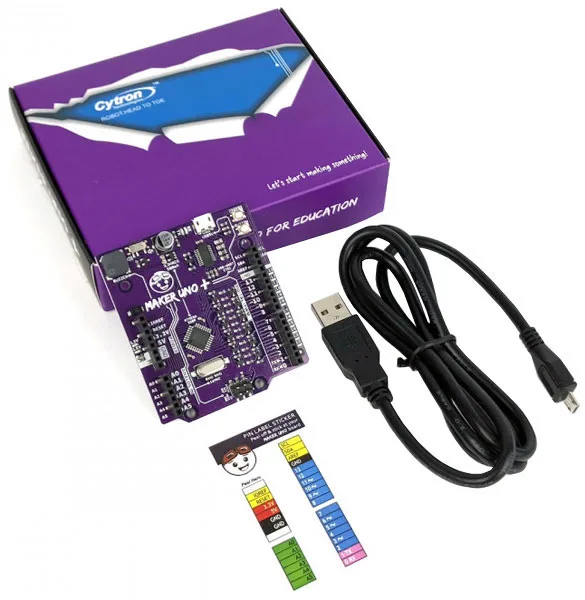

Besides the Maker UNO Plus and the USB-to-micro USB cable, the pack also includes stickers that let you identify the pins at a glance.

• Digital levels:
  – 5 Volt
• Controller:
  – ATmega 328P SMD
• Clock:
  – 16 MHz
• Memory:
  – 32 KBytes Flash
  – 2 KBytes RAM
  – 1 KBytes EEPROM
• Available ports:
  – 14 digital, 6 of them PWM
  – 6 analogue
• Available interfaces:
  – 1 x SPI
  – 1 x I2C

• Manual
• Schematic
