Arduino Uno Rev 3 with USB Cable

Set made up of the ARDUINO UNO Rev.3 board and a USB A/B cable, 1.5 m

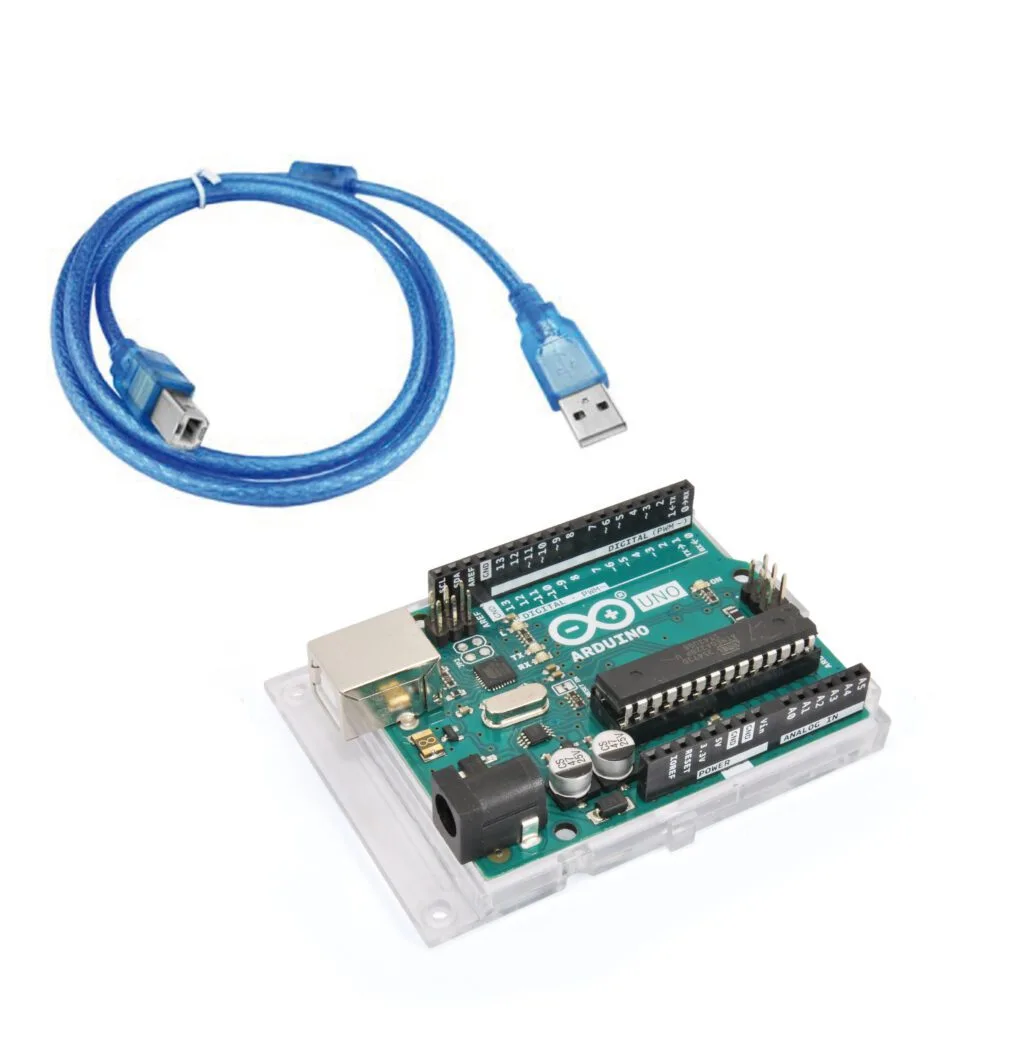

Arduino Uno Rev 3 with USB Cable - Image 1

SKU 8500-COMB06GEAN 8219671072229Item type: Assembled, Starter kit

Description

ARDUINO UNO REV3 with Atmega328
Arduino Uno Rev3 is a board built around the Atmega328 microcontroller (datasheet). It has 14 digital inputs/outputs (6 of which can be used as PWM outputs), 6 analogue inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header and a reset button.
It has everything needed to support the microcontroller; to get started, just connect it to a computer with a USB cable or power it from an AC/DC adapter or a battery.Technical characteristics
  • Power supply:
    – 7 to 12 V (through the plug)
    – 5 V (through the USB port)
  • DC current for the 3.3 V pin: 50 mA
USB CABLE
USB 2.0 cable with a male type (A) connector at one end and a male type (B) connector at the other. Length: 1.5 m.



Technical details

Microcontroller ATmega328
Operating voltage 5 V
Supply voltage (limits) 6-20V
Digital inputs/outputs 14 (6 of which can be used as PWM outputs)
Analogue inputs 6
DC current per I/O pin 40 mA
Flash memory 32 kB (0.5 kB of which used by the bootloader)
SRAM 2 kB
EEPROM 1 kB
Clock speed 16 MHz
Length 1.5 m
