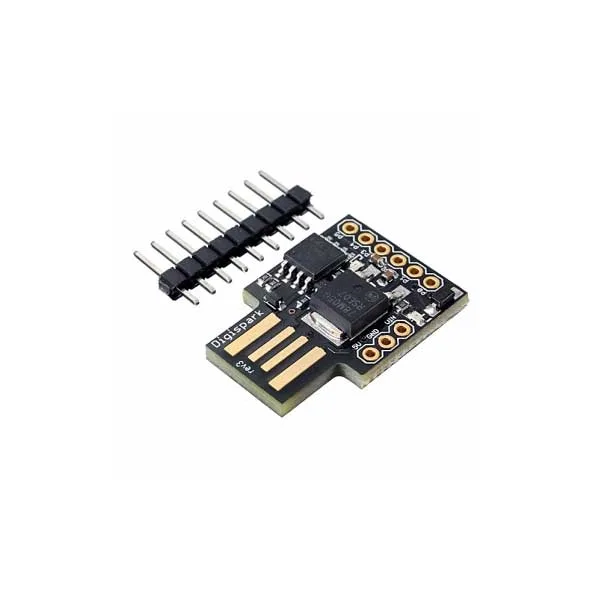

ATTINY85 USB BOARD
Very small board based on the ATtiny85 microcontroller
SKU 1606-ATTINY85USBEAN 8219671090940Item type: Assembled, BoardArduino compatible
Description
Very small electronic board based on the ATtiny85 microcontroller. Supplied with bootloader and programmable via the Arduino IDE, it has 6 I/O pins (3 with PWM function and 4 as analog inputs), maximum clock rate 20 MHz (default 16 MHz). It is indicated as a low-cost solution for disposable projects, such as DIY projects, workshops, gift projects, etc. Power supply: 5 V via USB or external from 7 V to 35 V (integrated voltage regulator: 5V – 500 mA), dimensions (mm): 26.7x19x4.8.
Technical specifications
- Power supply: 5 V via USB or external from 7 V to 35 V (integrated voltage regulator: 5V – 500 mA)
- I/O: 6 (2 are used for USB communication, if not used all 6 pins can be used)
- SPI/USI interface
- Supports Arduino IDE 1.0 or higher (OSX / Windows / Linux)
Documentation and useful links
Technical details
| Microcontroller | ATtiny85 |
|---|---|
| Flash Memory | 8 KB (2 KB used for the bootloader) |
| Clock Speed | 20 MHz |
| PWM | on 3 pins |
| ADC | on 4 pins |
| Dimensions (mm) | 26.7x19x4.8 |
| Weight | 4 grams |
