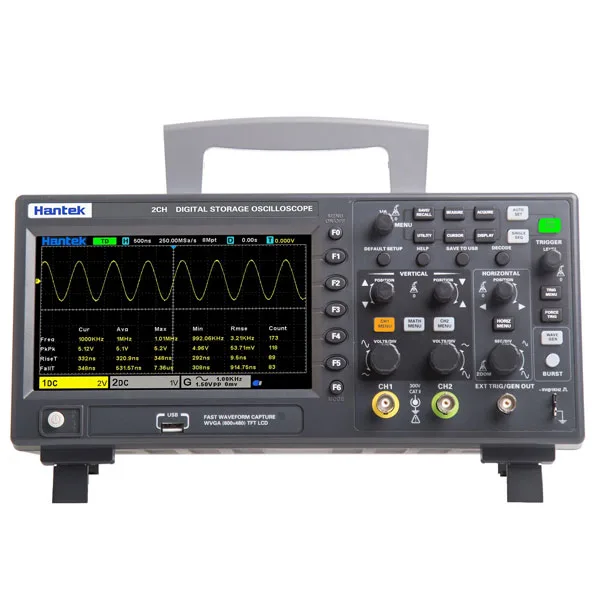

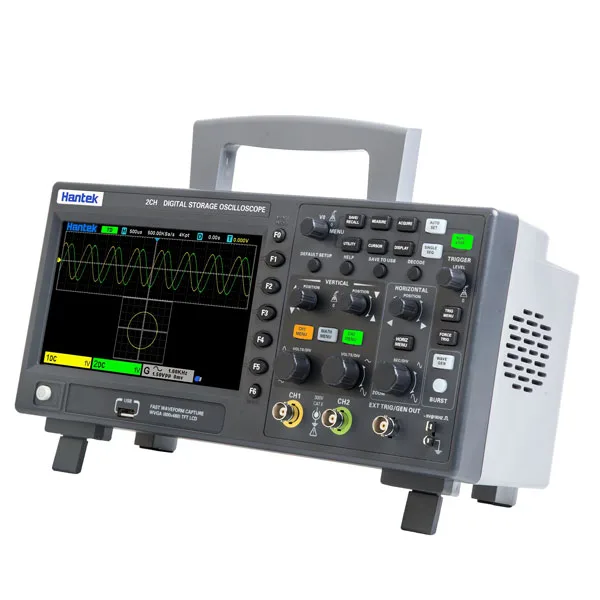

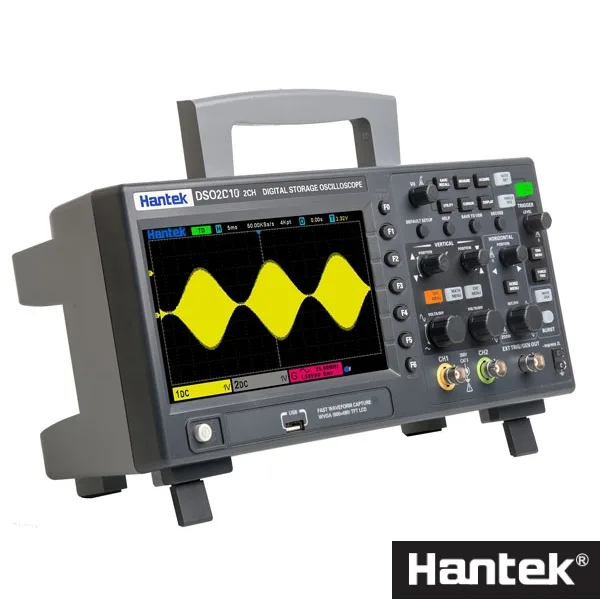

Bench Oscilloscope, 2 Channels, 100 MHz

Package contents: oscilloscope, CD with software and manual (in English), 1 x 100 MHz probe, USB cable, power cable, BNC-to-2-alligator-clips cable.

• 7″ TFT display (resolution: 800×480)
• Built-in FFT (Fast Fourier Transform) function
• Software for real-time analysis on a PC
• Port USB Host, USB Device

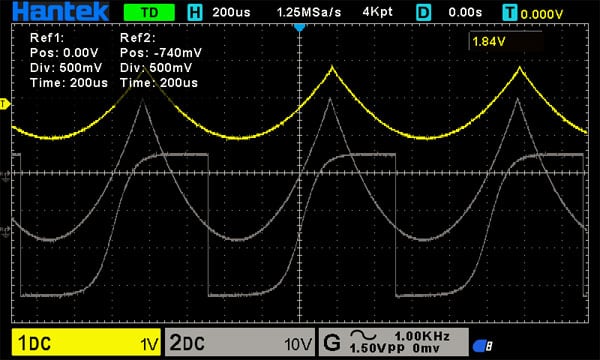

• Data can be saved in several formats, such as settings, waveforms, reference waveforms, CSV and images
• It also features a 3-digit digital voltmeter and a 6-digit hardware frequency counter

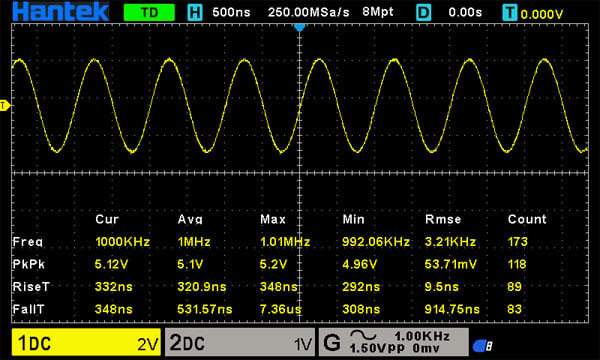

• 32 types of automatic measurement with statistics, real-time statistics of maximum, minimum, standard deviation and so on.
• Four maths functions, including FF

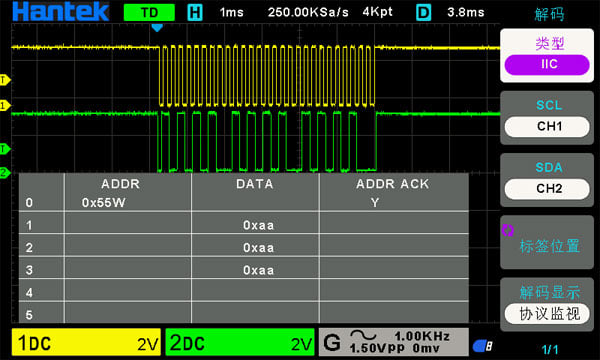

• Trigger modes: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
• Package contents: oscilloscope, CD with software and manual (in English), 1 x 100 MHz probe, USB cable, power cable, BNC-to-2-alligator-clips cable

• Acquisition modes: Normal, Peak-to-peak value, Average, High resolution

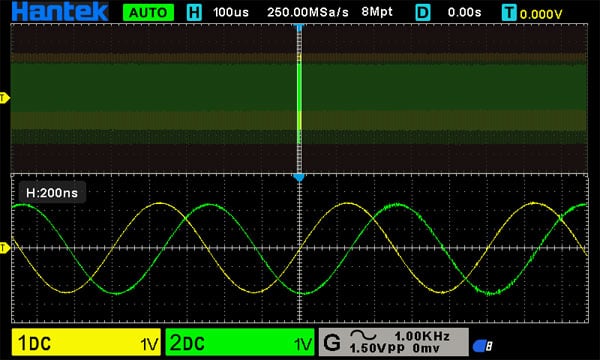

• Horizontal
  – Scale range: 2ns/div-100s/div 1, 2, 5

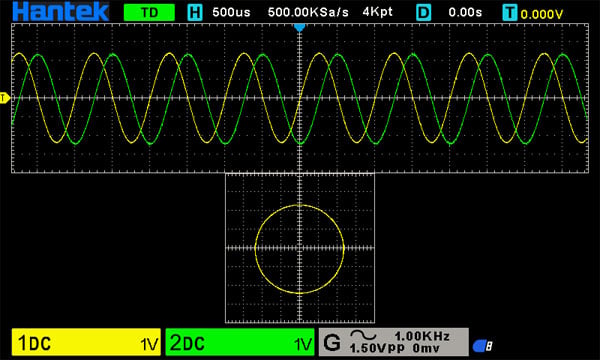

  – Time base modes: Y-T, X-Y, Roll
  – Zer offset: ±0.5 div x minimum time base gear
  – Delta Time measurement accuracy (full bandwidth): Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200
  – Sampling rate and delay time accuracy: ± 50 ppm
• Vertical
  – Rising Time at BNC (typical): 3.5ns
  – Vertical resolution: 8-bit resolution, all channels sampled simultaneously
  – Vertical sensitivity: 2mV/div to 10V/div
  – Offset range: ≥ 200mV/div, ±1V; ＜200mV/div ±50V
  – Math: +, -, ×, ÷, FFT
  – FFT: Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
  – Bandwidth limit: 20 MHz
  – Low frequency response (-3db): at BNC ≤ 10Hz
  – Vertical gain accuracy: in “normal” or “average” acquisition mode, accuracy from 10V/div to 10mV/div is ±3%; in “normal” or “average” acquisition mode, accuracy from 5 mV/div to 2 mV/div is ±4%
• Trigger
  – Type: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
  – Trigger level range: ±5 divisions from the centre of the screen
  – Trigger modes: Auto, Normal, Single
  – Level: CH1~CH2 (±4 divisions from the centre of the screen)
  – Holdoff range: 8ns~10s
  – Trigger level accuracy: CH1/CH2: 0.2div × volts/div within ± 4 divisions from the centre of the screen; EXT(Only With AWG Model) ±（set value× 6%+40mV)
  – Edge trigger: Slope: Rising edge, falling edge, rising or falling edge // Trigger source: CH1, CH2
  – Pulse width trigger: polarity: positive and negative / conditions (when): <, >, !=, = / signal source: CH1, CH2 / pulse width range: 8ns ~ 10s / accuracy 8ns
  – Video: signal source: CH1-CH2 / synchronisation: scan line, line number, odd field, even field, all fields
  – Slope: slope: rising, falling / condition (when): <, >, !=, = / signal source: CH1-CH2, time range: 8ns-10s / accuracy: 8 ns
• Measurement
  – Measurement cursor:
  Voltage difference between the cursors: difference between the cursors Delta V / time: Delta T / Reciprocal of Delta T in Hertz (1/Delta T)
• Automatic measurement: Frequency, Period, Mean, Peak-to-Peak, Cycle RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF

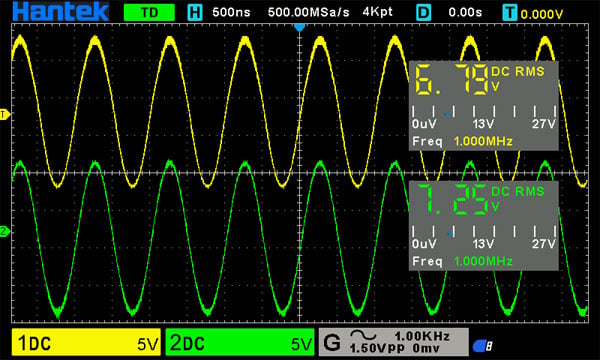

• DVM:
  Data source: CH1, CH2 / DC RMS
  Measurement type: CH1, CH2 / DC, RMS / AC RMS / DC
  Frequency counter: 6-bit hardware frequency counter
• Display
  – 7″ TFT, 16 million colours (24 bits true colour)
  – Resolution: 800×480
  – Persistence time: minimum 1s, 5s, 10s, 30s, infinite
  – Display type: dot, vector
  – Display brightness: adjustable
  – Grid type: adjustable
  – Grid brightness: adjustable

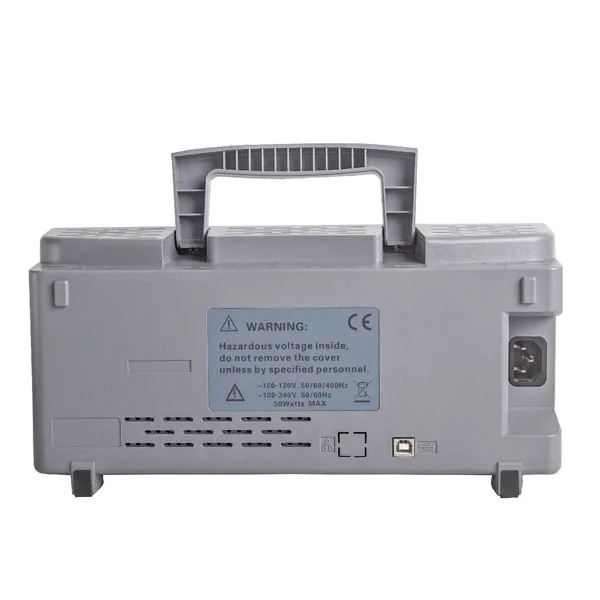

• Interface: USB Host, USB Device
  – Probe compensation output
  – Output voltage (typical): about 2 Vpp into a 1 Mohm load
  – Frequency (typical): 1 kHz
• Power supply
  – Supply voltage: 120-240 VAC RMS (± 10%), 45 Hz to 66Hz, CAT II
  – Power consumption: < 30W
  – Fuse: T, 3.15A – 250 V, 5×20 mm
• Miscellaneous
  – Operating temperature: 0°C to +50°C (32~122°F)
  – Storage temperature: -40°C to +71°C (-40°F to +159.8°F)
  – Humidity: at 40°C or below: = 90% relative humidity; from 41°C to +50°C) = 60% relative humidity
  – Operating altitude: below 3,000 m (10,000 feet)
  – Dimensions (mm): 318x110x150
  – Weight: 1.9 kg

• User manual in English
