Description

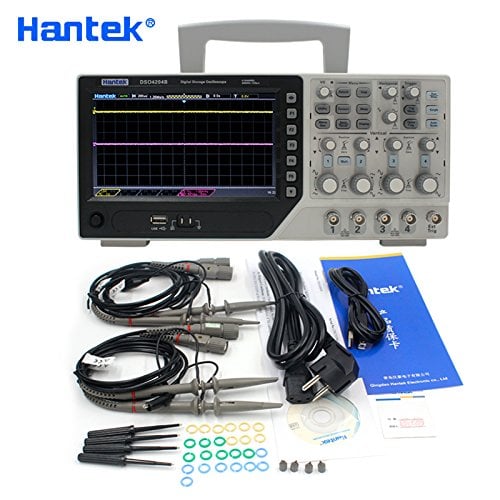

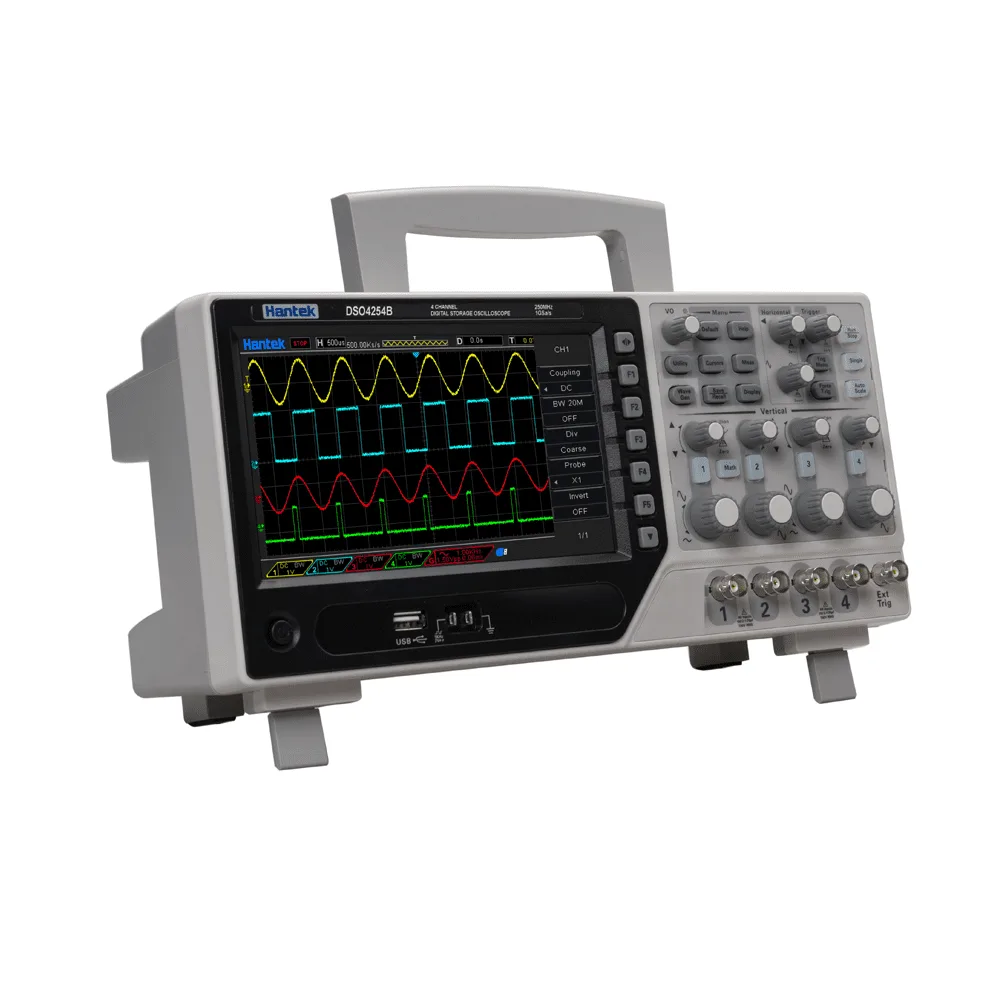

High-performance bench oscilloscope. It has a large 7″ colour TFT display with 64,000 colours, four channels with 200 MHz bandwidth, sample rate (Real Time): 1 GSa/s, record length up to 64 KB, multiple automatic measurements, built-in FFT (Fast Fourier Transform) function, several trigger modes (edge/pulse width/line selectable video/slop/overtime etc), software for real-time analysis on a PC and a USB host port. The software lets you export the screens as Bitmap files, print them, save them in .wfm format and open them again. Box contents: oscilloscope, 4 oscilloscope probes (200 MHz 1x, 10x attenuation, 1MΩ), installation CD and manual in English, USB A-B cable, BNC to BNC cable, mains cable.
Technical features
    • 7″ TFT display, 64,000 colours (resolution: 800×480)
    • Built-in FFT (Fast Fourier Transform) function.
    • Record length:
      – max sampling 64 KB on a single channel
      – max sampling 32 KB on two channels
    • Software for real-time analysis on a PC
    • USB host port.
  • Multiple automatic measurements
  • Four maths functions, including FF
  • Box contents: oscilloscope, 4 oscilloscope probes (200 MHz 1x, 10x attenuation, 1MΩ), installation CD and manual in English, USB A-B cable, BNC to BNC cable, mains cable.
Technical specifications
  • Acquisition
  • Rise Time (BNC, typical): ≤1.8ns
  • Sample rate and delay time accuracy: ±50ppm
  • Delta Time measurement accuracy (full bandwidth): Single-shot, Normal mode: ±(1 sample interval+100ppm*reading+0.6ns) >16 averages:±(1 sample interval+100ppm*reading + 0.4ns), Sample interval = s/div ÷ 200
  • A/D converter: 8-bit resolution, every channel sampled simultaneously
  • Vertical Scale (1X probe): 500μV/div~10V/div with BNC input
  • Positioning range: 500μV/div~20mV/div, ±400mV; 50mV/div~200mV/div, ±2V; 500mV/div~2V/div, ±40V; 5V/div~10V/div, ±50V
  • Selectable analogue bandwidth limit: 20MHz (typical)
  • Low-frequency response:  (-3db): ≤10Hz at BNC
  • DC gain accuracy:  ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 500μV/div
  • Acquisition rate (typical): up to 2000 waveforms per second per channel (normal acquisition mode, no measurements running)
  • Trigger modes: Auto and Normal
  • Trigger Level: CH1~CH4: ±4 divisions from screen centre; EXT:0~3.3V
  • Holdoff Range: 20ns~10s
  • Trigger level accuracy: CH1~CH4:0.2div*volts/div within ±4 divisions from screen centre; EXT:± (6% of setting + 40mV)
  • Trigger types: Edge,Pulse Width,Video,Slope,Overtime,Window,Pattern,Interval,Under Amp
  • Decoding type: (Standard): I2C,SPI,UART,LIN,CAN
  • Measurement cursors: Voltage difference between cursors: Delta V / Time difference between cursors: Delta T / Reciprocal of Delta T in Hertz (1/Delta T)
  • Automatic measurements: Frequency, Period, Mean, Pk-Pk, RMS, PeriodRms, Min, Max, RiseTime, FallTime, + Width, – Width, + Duty, – Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, PeriodAvg, FOVShoot, RPREShoot, BWidth, FRR, FFF, FRF, FFR, LRR, LRF, LFR and LFF
  • Display: 7″ TFT, 64,000 colours (resolution: 800×480)
  • Dimensions: 318 x 110 x 150mm(L x W x H)
  • Weight: 2900g
Download

Technical details

Maximum real-time sample rate 1 GS/s
Bandwidth 200 MHz
Trigger modes edge/pulse width/line selectable video/slop/overtime etc
Sample rate (real time) 1GS/s
Acquisition modes Normal, Peak, Average and HR
Number of channels 4 channels + EXT
Input coupling DC, AC or GND
Input impedance 1MΩ±2%,20pF±3 pF
Probe attenuation 1X,10X
Supported probe attenuation factors 1X,10X,100X,1000X
Measurement category 300V CAT II
Maximum input voltage 300VRMS (10X)
Waveform interpolation (sin x)/x
Horizontal range (s/div) 2ns/div~100s/div, 1~2~5 sequence
