Collision Sensor for Robots

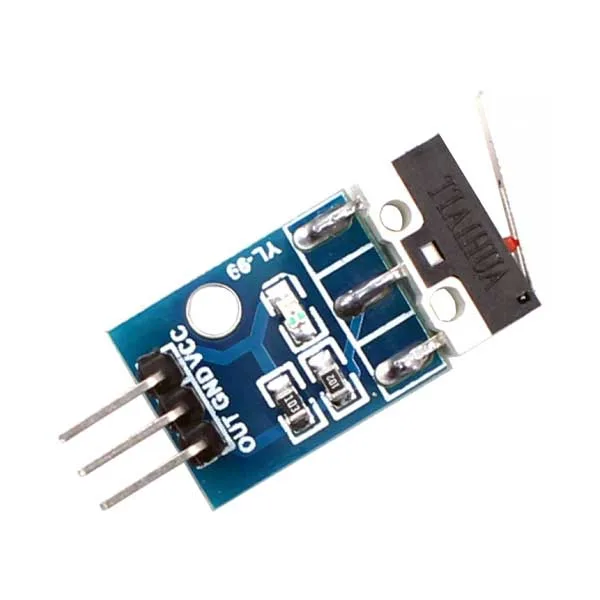

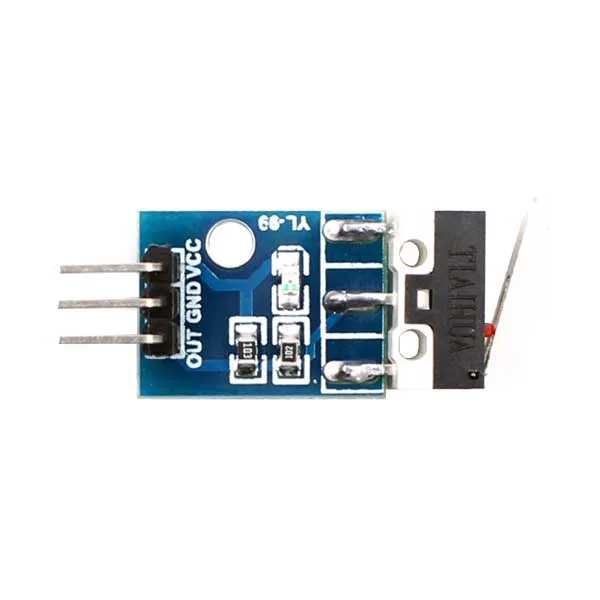

Built around a micro switch and a status LED, this small board is ideal for use as an anti-collision sensor on robots
Collision Sensor for Robots - Image 1
Collision Sensor for Robots - Image 3
Collision Sensor for Robots - Image 4

SKU 3085-COLLISIONSENSEAN 8219671093026Lighting: LEDItem type: Assembled, Shields & add-ons,

Description

Built around a micro switch and a status LED, this small board is ideal for use as an anti-collision sensor on robots. It has one M3 mounting hole. Supplied with a lead about 20 cm long, complete with connectors for VCC, GND and OUT. The OUT output is normally high when there is no collision (micro switch open), and low when a collision occurs (micro switch closed). Dimensions (mm): 25×13.5×7.
