DC/DC Converter, 3-pin, 3.3 V output

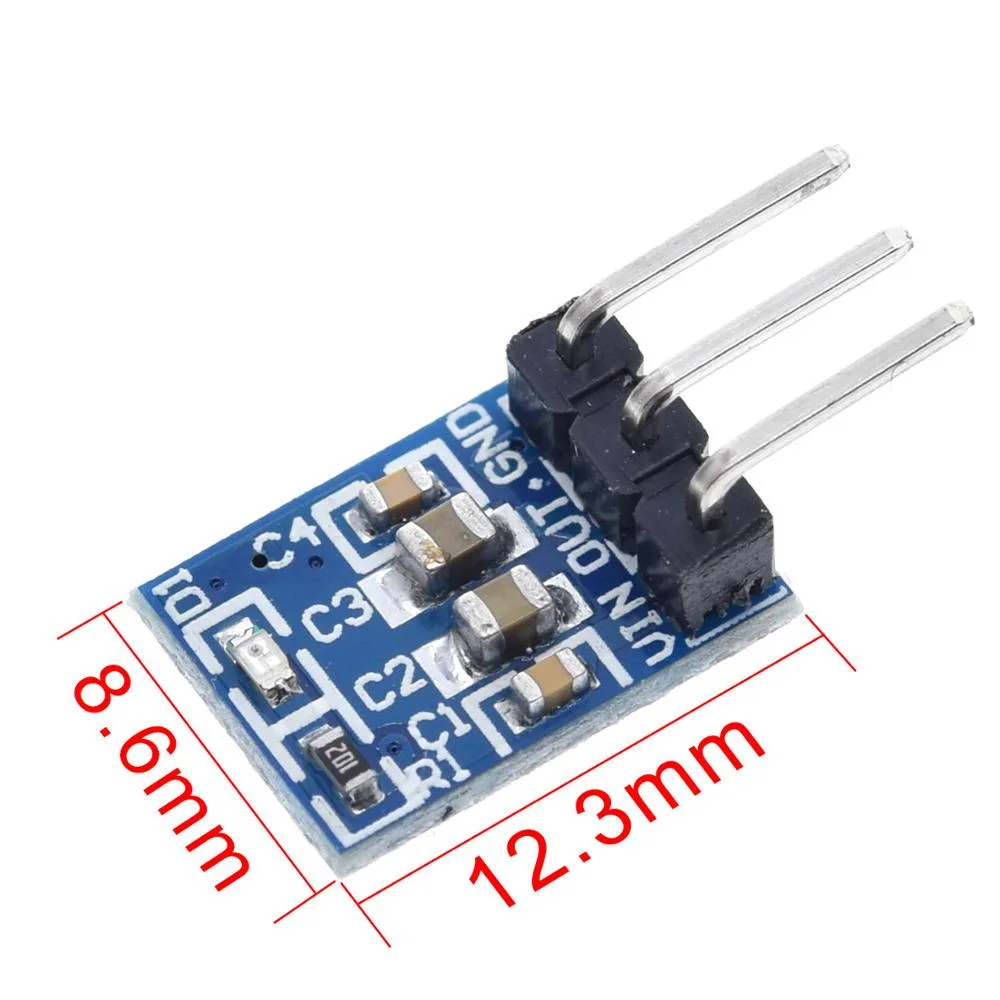

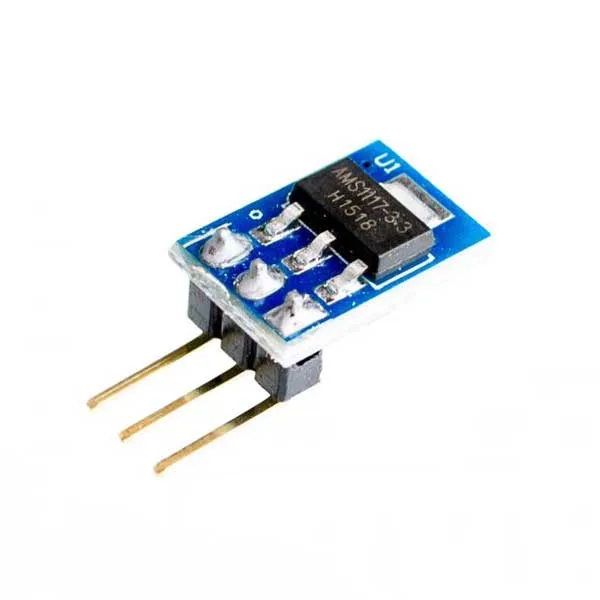

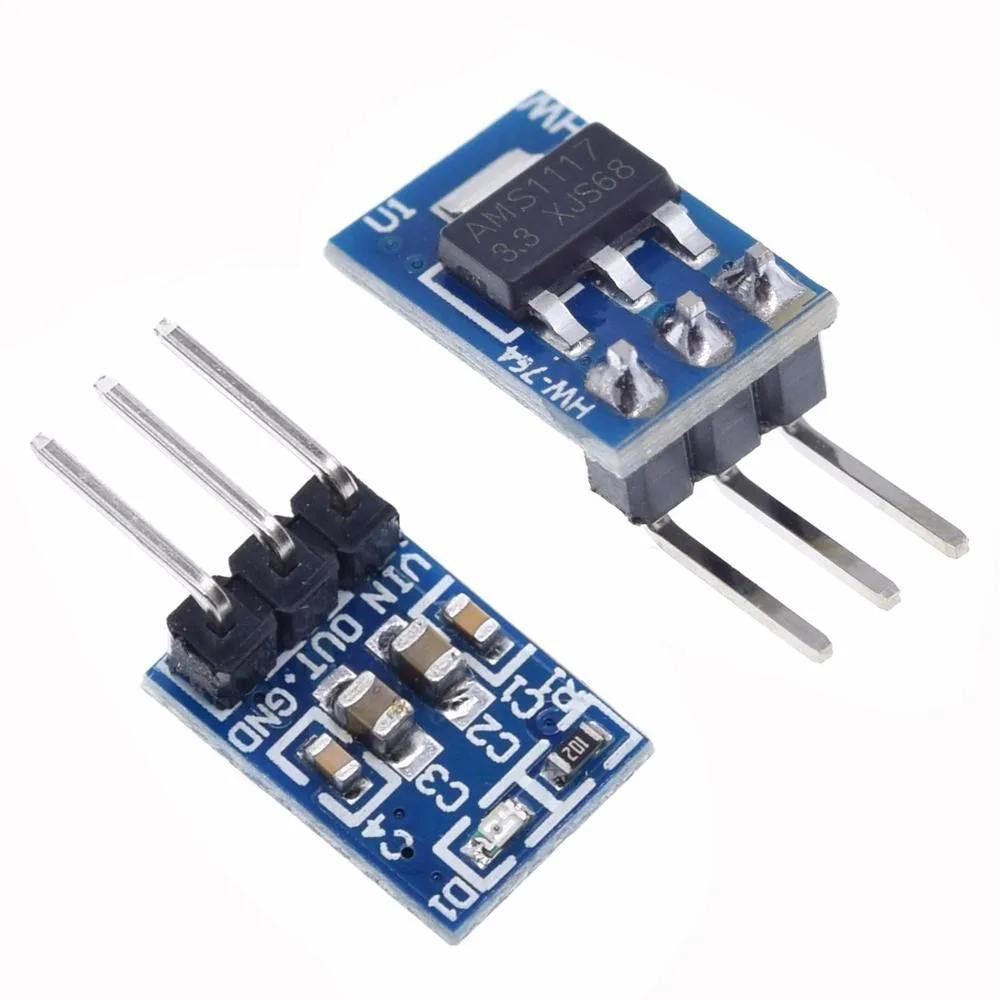

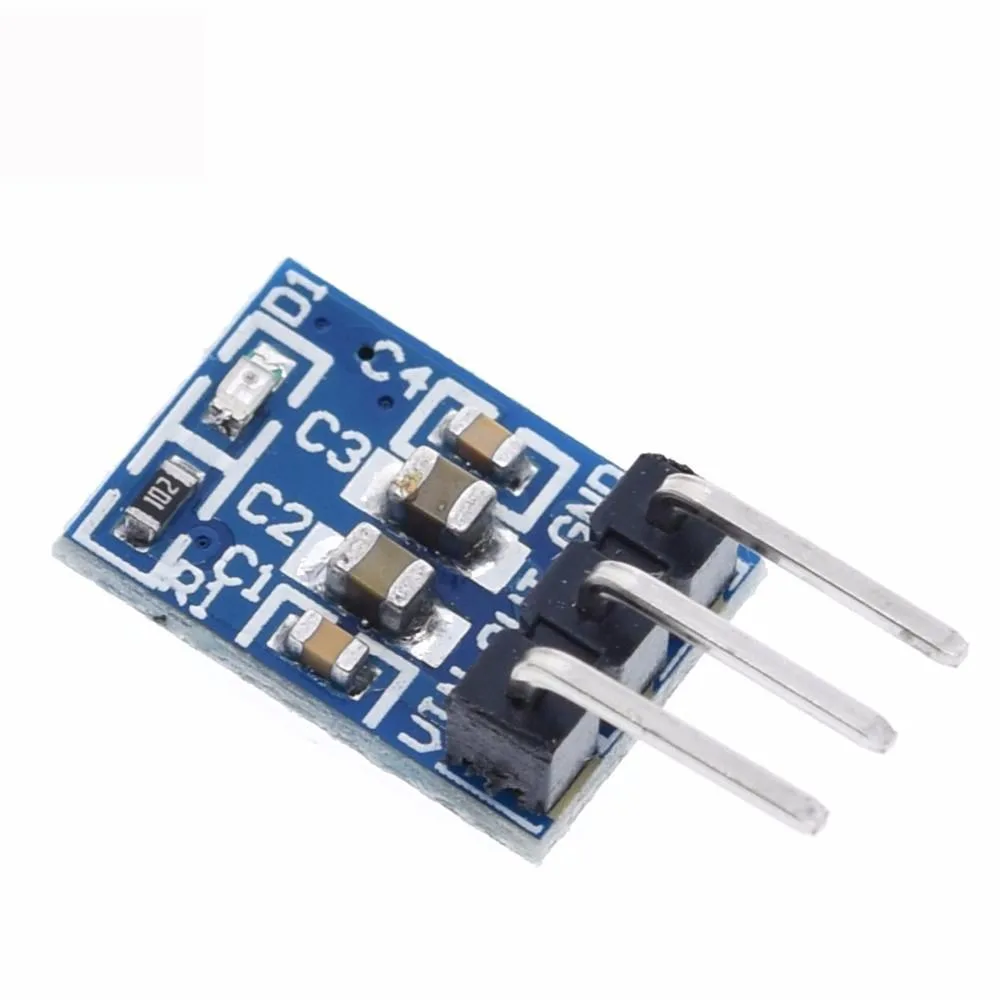

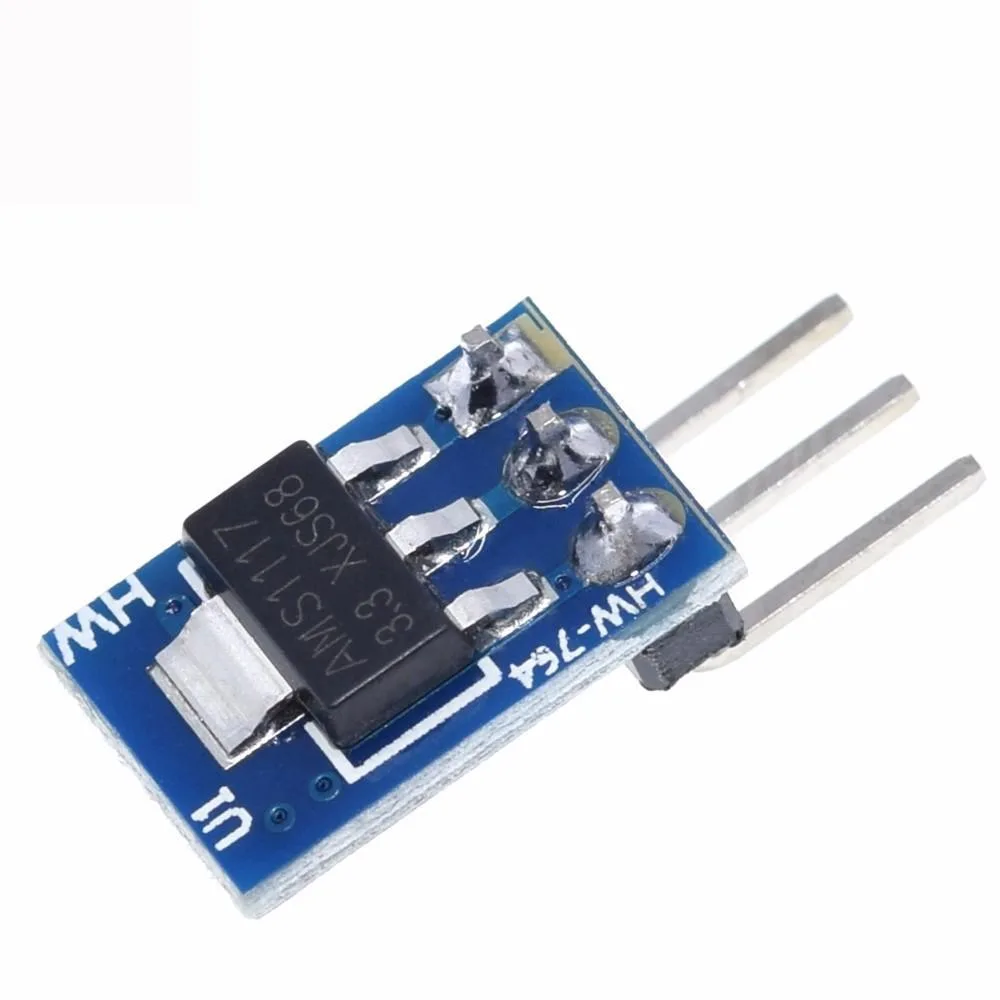

The linear DC/DC converter is an extremely compact device (12.3 x 8.6 x 4.5 mm) designed to convert an input DC voltage between 4.5 and 7 volts into a stable 3.3-volt output, thanks to the AMS1117-3.3 voltage regulator. The device can handle a maximum current of about 800 mA, ensuring reliable power for sensitive electronic devices.

The converter is ideal for integration into electronic projects where space is limited, thanks to its compact size. Its ability to convert a wide range of input voltages makes it a versatile device, suitable for various applications.

Technical specifications

• Voltage regulator: AMS1117-3.3
• Input voltage: from 4.5 V to 7 V (input voltage must be at least 1 V higher than output voltage)
