DC/DC CONVERTER, 5 V OUTPUT

Exceptionally small DC/DC converter (20.50 mm x 20.50 mm) that turns a DC voltage of between 1.1 and 4.5 volts into a 5 volt output

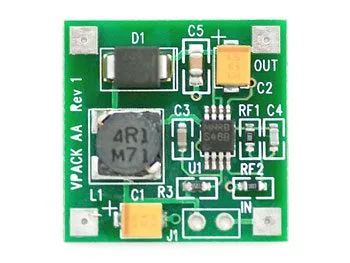

DC/DC CONVERTER, 5 V OUTPUT - Image 1

SKU 7300-5VDCDCEAN 8219671053655Output voltage: 5 VdcItem type: AssembledConversion type: Step-up

Description

DC/DC converter with particularly small dimensions (20.50 mm x 20.50 mm), capable of converting a DC voltage between 1.1 and 4.5 volts into a 5-volt output voltage. The maximum available current is about 300 mA.

Technical details

Input voltage from 1.1 to 4.5V
Output voltage 5 V
Output current about 300 mA
Output voltage ripple 150 mV peak-to-peak @ 135 kHz
Dimensions 20.50 x 20.50 x 3.4 mm
Weight 1.5 grams
