DC/DC Converter 5 V Output

Linear DC/DC converter in a particularly compact package (26 x 11 x 11.7 mm), converting a DC input of between 6 and 12 volts into a 5 volt output

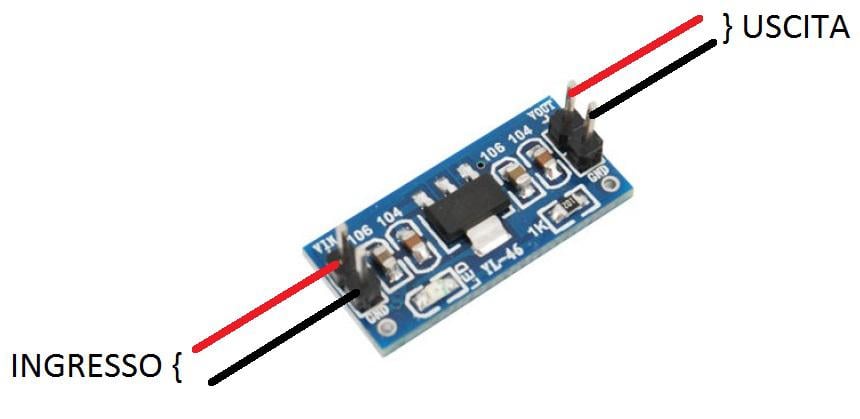

DC/DC Converter 5 V Output - Image 1

SKU 2846-CONVDCDC5VEAN 8219671060189Output voltage: 5 VdcItem type: AssembledConversion type: Step-down

Description

Linear DC/DC converter in a particularly compact package (26 x 11 x 11.7 mm), converting a DC input of between 6 and 12 volts into a 5 volt output. The maximum available current is about 800 mA.
Technical specifications

Measurements table:

Vin [V] Iin [A] Pin [W] Vout [V] Iout [A]

Pout [W]

 η [%]
7 0.11 0.77 4.98 0.1 0.5 65
12 0.11 1.32 4.96 0.1 0.5 38

Technical details

Input voltage 6 V to 12 V
Output voltage 5 V
Maximum current 800 mA
Dimensions (mm) 26x11x11.7
