DC/DC Converter, 5V-12V Input – ± 12V Output

DC/DC converter able to turn a DC voltage between 5 and 12 volts into a dual 12 volt output

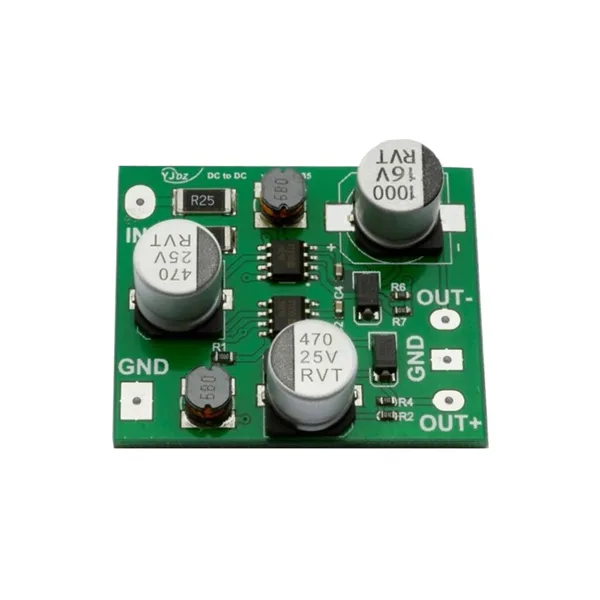

DC/DC Converter, 5V-12V Input - ± 12V Output - Image 1

SKU 2846-CONVDCDC5V12VEAN 8219671080088Output voltage: 12 VdcItem type: AssembledConversion type: Step-up & step-down

Description

DC/DC converter capable of converting a DC voltage between 5 and 12 volts into a dual 12-volt output voltage. The maximum available current is approximately 100 mA.

Technical specifications

Measurement table:

Vin [V] Iin [A] Pin [W] Vout+ [V] Iout+ [A] Pout+ [W] Vout- [V] Iout- [A] Pout- [W]
12 0.03 0.36 12.1 0.055 0.66 -12.0 0.055 0.66
5 0.08 0.4 12.1 0.055 0.66 -12.0 0.055 0.66

The circuit was tested by applying two 220 Ω resistors as load on each of the two outputs.

Technical details

Input voltage from 5 Vdc to 12 Vdc
Output voltage ± 12 Vdc
Maximum current 100 mA
Dimensions (mm) 42.5x35.6x12.3
Weight 11 grams
