DC/DC converter with output adjustable from 1.5 to 35 V

Step-Down switching DC/DC converter, particularly small (48.35 x 23.35 x 14 mm), able to turn a DC voltage between 3 and 40 volts into an output voltage from 1.5 to 35 volts (adjustable with a trimmer)

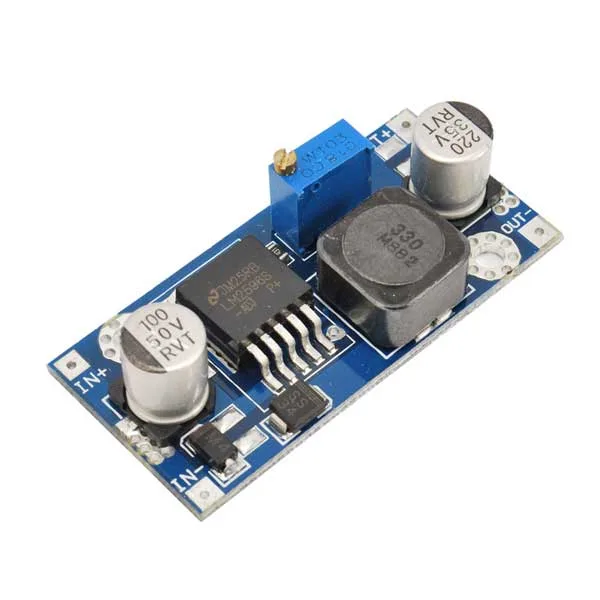

DC/DC converter with output adjustable from 1.5 to 35 V - Image 1

SKU 2846-MODULODCDCEAN 8057190730028Output voltage: Manually adjustableItem type: AssembledConversion type: Step-down

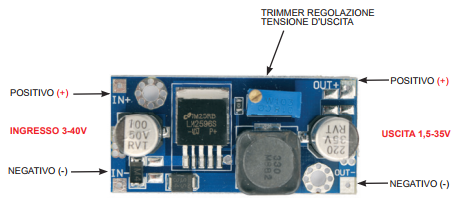

Description

Step-Down switching DC/DC converter, particularly small (48.35 x 23.35 x 14 mm), able to turn a DC voltage between 3 and 40 volts into an output voltage from 1.5 to 35 volts (adjustable with a trimmer). The maximum available current is about 3 A. The input voltage must exceed the output voltage by at least 2 volts.
Technical specifications

Measurement table:

Vin [V] Iin [A] Pin [W] Vout [V] Iout [A] Pout [W] η [%]
12 0.01 0.12 3.5 0.01 0.03 20
12 0.05 0.6 11.15 0.02 0.2 33
20 0.01 0.2 5 0.01 0.05 25
20 0.07 1.4 18.9 0.04 0.8 57

Technical details

Input voltage 3 V to 40 V
Adjustable output voltage 1.5 V to 35 V
Maximum current 3 A
Dimensions 48.35 x 23.35 x 14 mm
