DC/DC Step-Down Converter, 9V-35V to 5V 5A

Step-down DC/DC converter based on the Texas Instruments TPS40057 IC

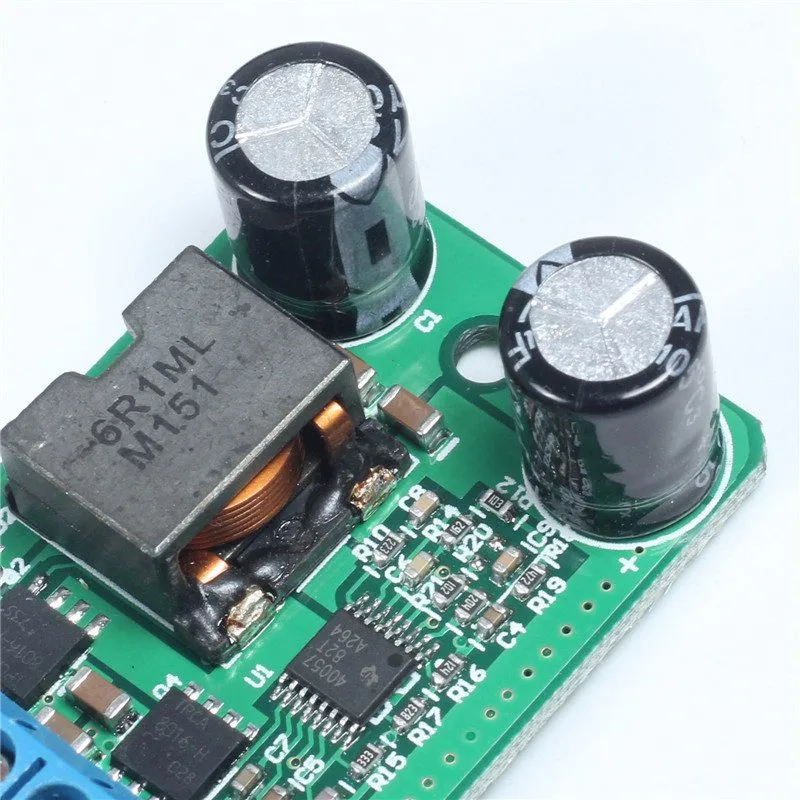

DC/DC Step-Down Converter, 9V-35V to 5V 5A - Image 1
DC/DC Step-Down Converter, 9V-35V to 5V 5A - Image 3

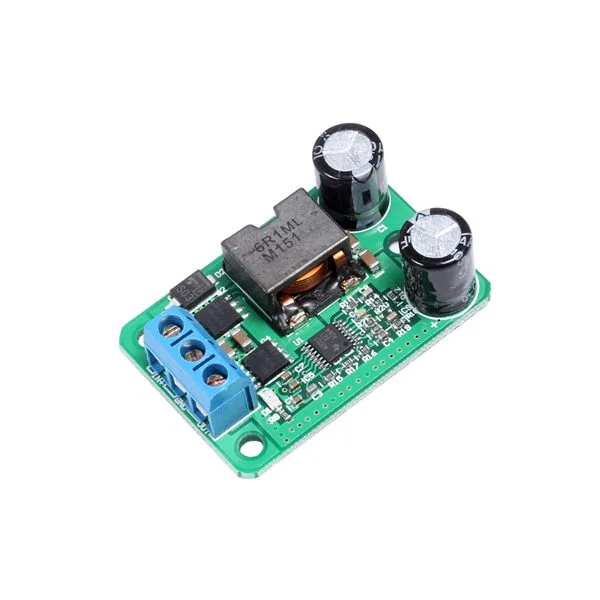

DC/DC Step-Down Converter, 9V-35V to 5V 5A - Image 4

SKU 2846-DCDCSTEPDOWNEAN 8219671080095Output voltage: 5 VdcItem type: AssembledConversion type: Step-down

Description

DC/DC Step-Down converter based on the TPS40057 IC from Texas Instruments. It converts a DC input voltage between 9 and 35 V into a 5 V DC output at 5 A. Particularly compact dimensions (45x31x16 mm).

Technical specifications

Measurement table:

Vin [V] Iin[A] Pin[W] Vout[V] Iout[A] Pout[W] η [%]
10 0.6 6 5.01 0.98 5 83
30 0.21 6.3 5.01 0.98 5 80

Technical details

Input voltage 9 Vdc to 35 Vdc
Output voltage 5 Vdc
Output current 5 A
Output power 25 W

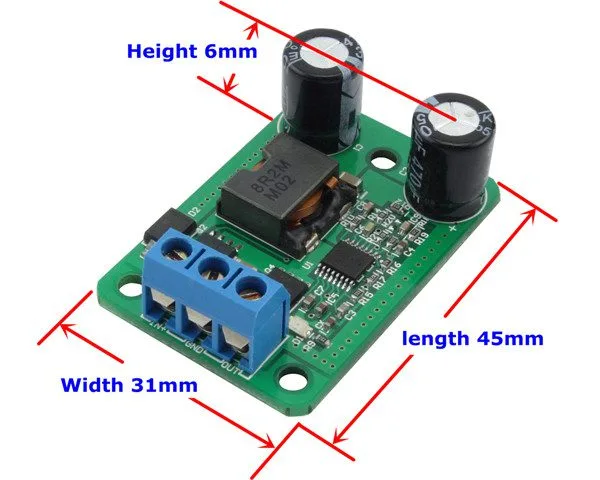

Dimensions (mm) 45x31x16
Weight 16 g
