DC/DC step-down converter with 5V output – 1A – 3 pins

Buck step-down converter module: it takes voltages from 5 to 40 V and gives a fixed 5 V output with current up to 1 A.

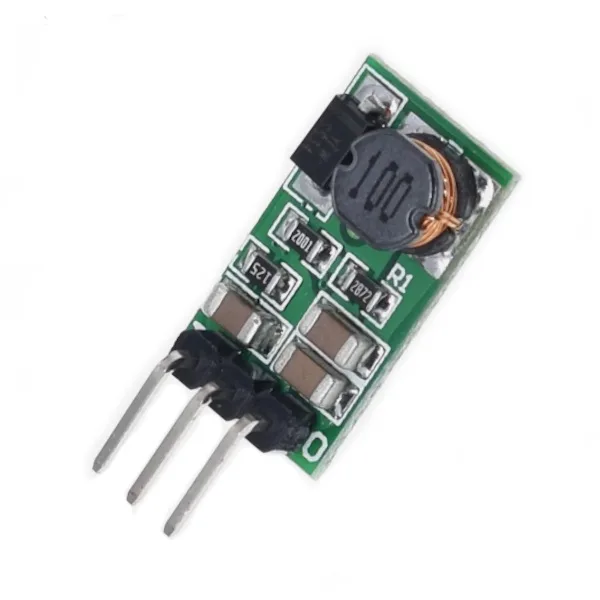

DC/DC step-down converter with 5V output - 1A - 3 pins - Image 1

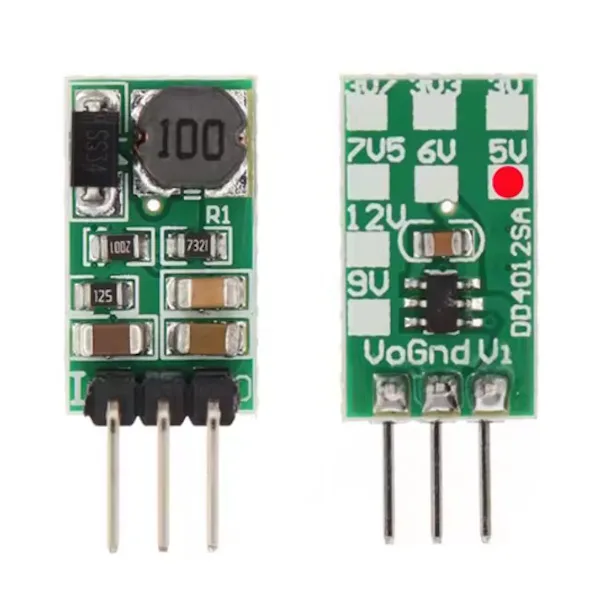

DC/DC step-down converter with 5V output - 1A - 3 pins - Image 3

SKU 2846-REG1ADC5VKEAN 8219671114387Output voltage: 5 VdcItem type: AssembledConversion type: Step-down

Description

This buck step-down DC-DC converter is ideal for bringing high voltages (up to 40 V) down to 5 V efficiently. With a stable output up to 1 A, it is perfect for powering microcontrollers, sensors, logic modules and other 5 V circuits. The module offers overload protection, high efficiency and a compact size, which makes it suitable for embedded projects, automation and powering electronic components. With its three terminals it is easy to fit into existing systems in place of traditional voltage regulators.
Technical specifications
  • Short-circuit and over-temperature protection: Yes

Technical details

Input voltage 6.6 V to 40 V
Output voltage 5 V
Output current max. 1 A
Operating frequency 550 KHz
Conversion efficiency 76-90%
Overcurrent protection Yes
Operating temperature -40°C to +85°C
Connector pitch 2.54 mm
Dimensions (mm) 22.3x10.2x6.7
Weight 2.5 grams
