DC/DC Step-Down Converter with LCD Display – 5-23V in, 0-16.5V out, 2A
DC/DC step-down converter that turns a DC input between 5 and 23 volts into a DC output from 0 to 16.5 volts, with a maximum current of 2 A (3 A peak)
SKU 2846-DCDISPAVDOWNEAN 8219671093439Output voltage: Manually adjustableItem type: AssembledConversion type: Step-downDC/DC converters
Description

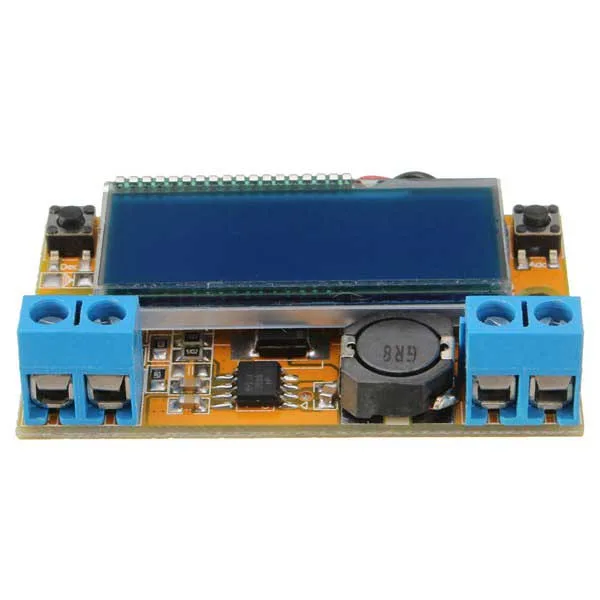

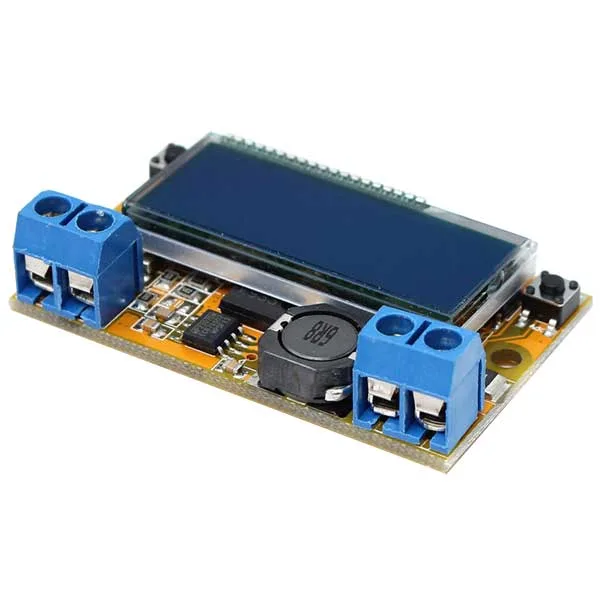

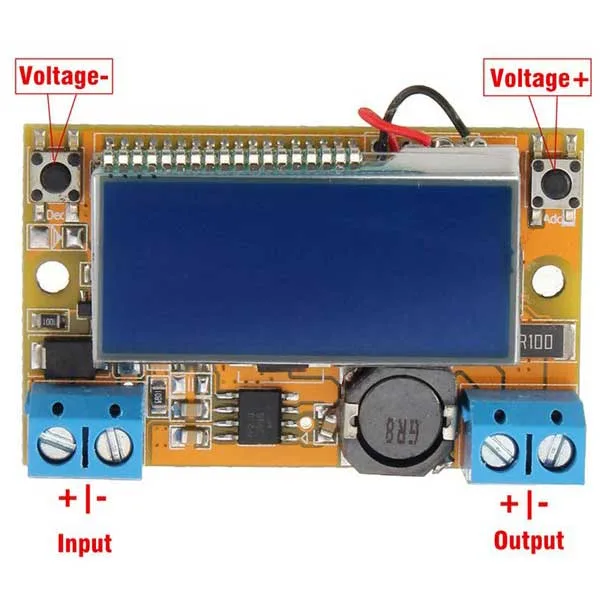

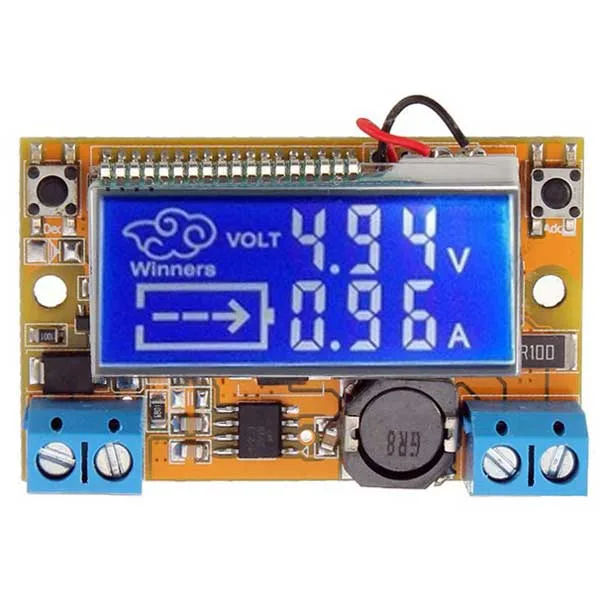

DC/DC step-down converter capable of converting a DC input voltage between 5 and 23 volts into a DC output voltage from 0 to 16.5 volts, with a maximum current of 2 A (3 A peak). The converter features two buttons to set the output voltage, an LCD display with white characters and blue backlight showing the output voltage and the current drawn by the load, and two screw terminals for input and output. The set output voltage is retained in memory even when power is removed. Dimensions (mm): 62x44x18, weight: approximately 42 grams.
Technical specifications
- Input reverse polarity protection: No, use a diode if necessary
- Dimensions (mm):
– display: 37.5×17
Technical details
| Display | STN LCD |
|---|---|
| Input voltage | from 5 Vdc to 23 Vdc |
| Output voltage | from 0 to 16.5 Vdc |
| Output current | 2 A (3 A peak) |
| Conversion efficiency | up to 95% |
| Connections | screw terminals |
| PCB | 50x30x12 |
| Weight | 42 grams |
