DC/DC Step-up and Step-down Converter

DC/DC converter able to work as a step-up, as a step-down and with output current limiting

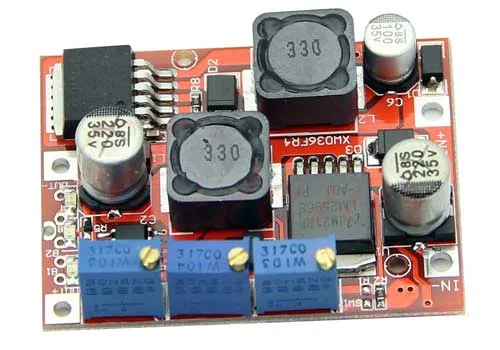

DC/DC Step-up and Step-down Converter - Image 1

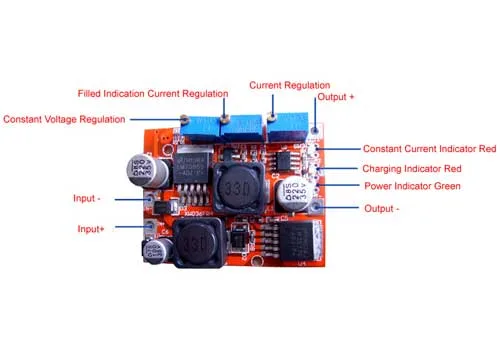

DC/DC Step-up and Step-down Converter - Image 3

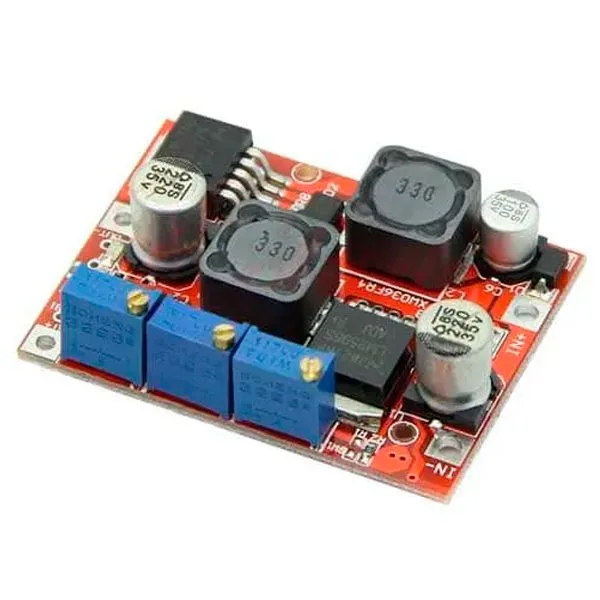

DC/DC Step-up and Step-down Converter - Image 4

SKU 2846-STEPUPDOWNEAN 8219671070614Output voltage: Manually adjustableItem type: AssembledConversion type: Step-up & step-down

Description

DC/DC converter that can operate as step-up, step-down, and with output current regulation. It converts a DC voltage between 4 and 35 volts into an output voltage from 1.25 to 25 volts (adjustable via trimmer). The maximum available current is about 2 A.

Drilling template

Technical details

Input voltage from 4 Vdc to 35 Vdc
Output voltage from 1.25 Vdc to 25 Vdc (adjustable)
Current range from 0 to 2 A (adjustable)
Conversion efficiency 80%
Dimensions (mm) 50x37.5x14
Operating temperature from -40°C to +85°C
