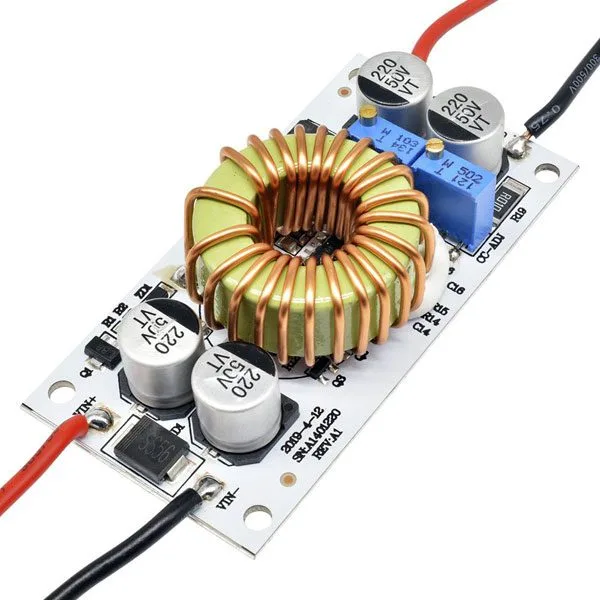

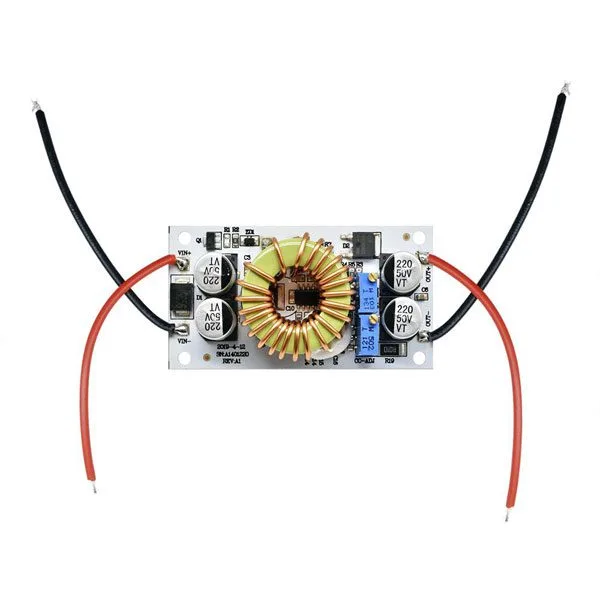

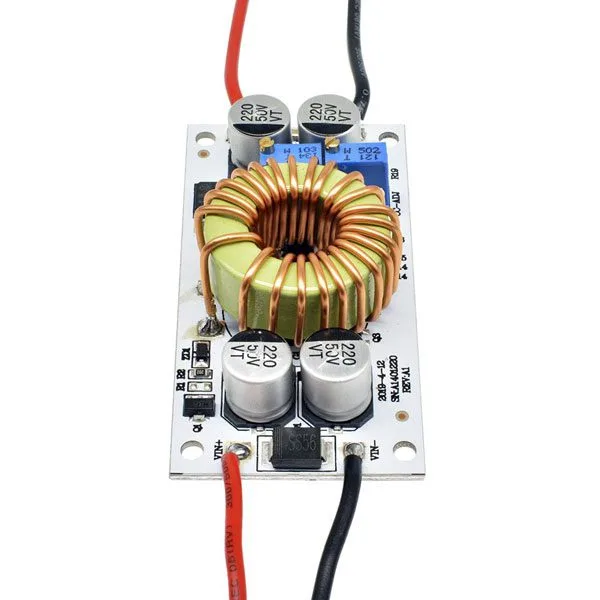

DC/DC Step-Up Converter with 10V-50V Output, 250W
Powerful DC/DC step-up converter capable of converting a DC input voltage between 8.5 and 48 volts into an output voltage from 10 to 50 volts, with a maximum current of about 10 A
SKU 8300-250WDCDCSUPEAN 8219671114387Output voltage: Manually adjustableItem type: AssembledConversion type: Step-upDC/DC converters
Description
Powerful DC/DC step-up converter capable of converting a continuous input voltage between 8.5 and 48 volts into an output voltage from 10 to 50 volts with a maximum current of about 10 A. It features overcurrent protection, input reverse polarity protection, and trimmers for adjusting output voltage and current.
Note: not suitable for inductive loads. The product works only as a voltage booster (step-up), so if powered, for example, at 16 V, you can get 50 V at the output, but not the reverse. Do not short-circuit the output to adjust the current.
Technical specifications
- Output current (adjustable): max. 10 A (if above 6 A, more heat dissipation is required with a heatsink, fan, etc.)
Technical details
| Input voltage | from 8.5 V to 48 V |
|---|---|
| Input current | max. 10 A |
| Adjustable output voltage | from 10 V to 50 V |
| Operating frequency | 150 KHz |
| Conversion efficiency | up to 96% |
| Overcurrent protection | Yes |
| Input reverse polarity protection | Yes |
| Operating temperature | from -20°C to +85°C |
| Dimensions (mm) | 70x36x18 |
| Weight | 64 grams |
