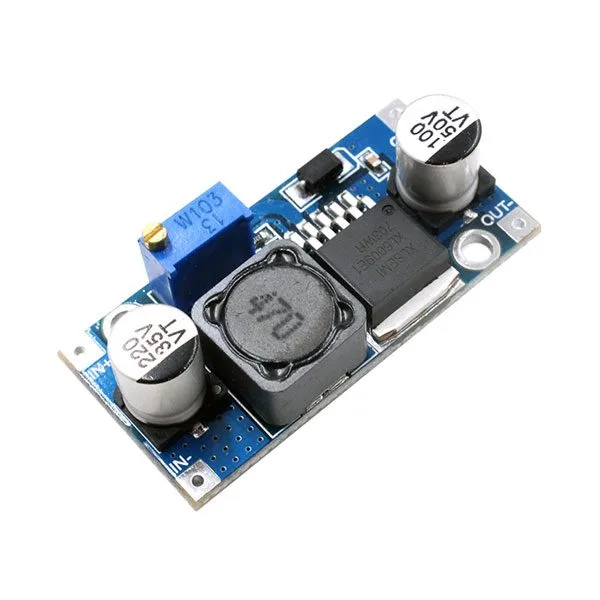

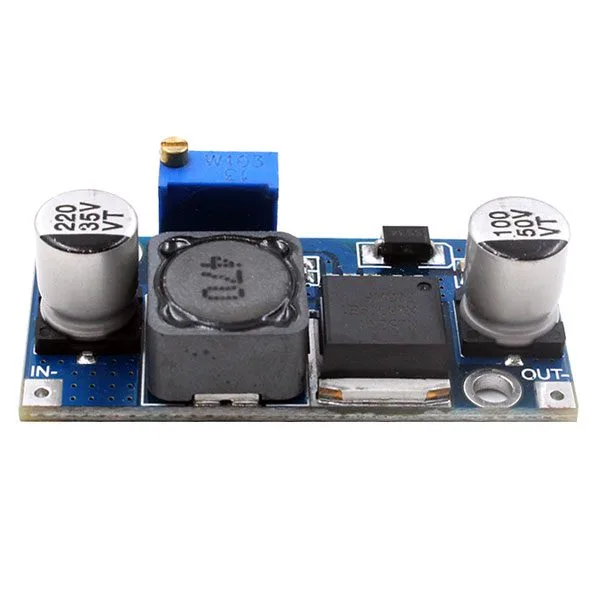

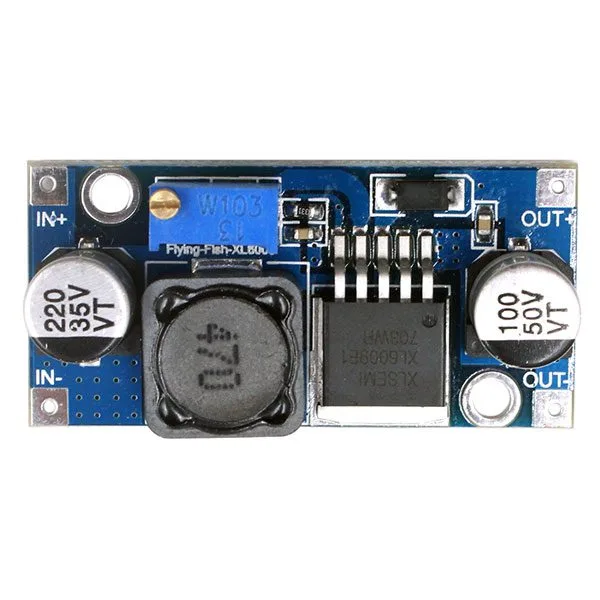

DC/DC Step-Up Converter with 5-35 V Output

Description

DC/DC step-up converter with particularly compact dimensions (43x21x14 mm), capable of converting a DC voltage between 3 and 30 volts into an output voltage from 5 to 35 volts (adjustable via trimmer).

Technical specifications

• Some references between input voltage, output, and current:
  – Input: 5 volts / Output: 12 volts / Current: 0.8 A – 9.6 watts
  – Input: 7.4 volts / Output: 12 volts / Current: 1.5 A – 18 watts
  – Input: 12 volts / Output: 15 volts / Current: 2 A – 30 watts
  – Input: 12 volts / Output: 16 volts / Current: 1.8 A – 30 watts
  – Input: 12 volts / Output: 18 volts / Current: 1.6 A – 28.8 watts
  – Input: 12 volts / Output: 19 volts / Current: 1.5 A – 28.5 watts
  – Input: 12 volts / Output: 24 volts / Current: 1 A – 24 watts
  – Input: 3 volts / Output: 12 volts / Current: 0.4 A – 4.8 watts
• Conversion efficiency:
• Switching frequency: 400 kHz
• Operating temperature: from -40°C to +85°C
• Dimensions (mm): 43x21x14
