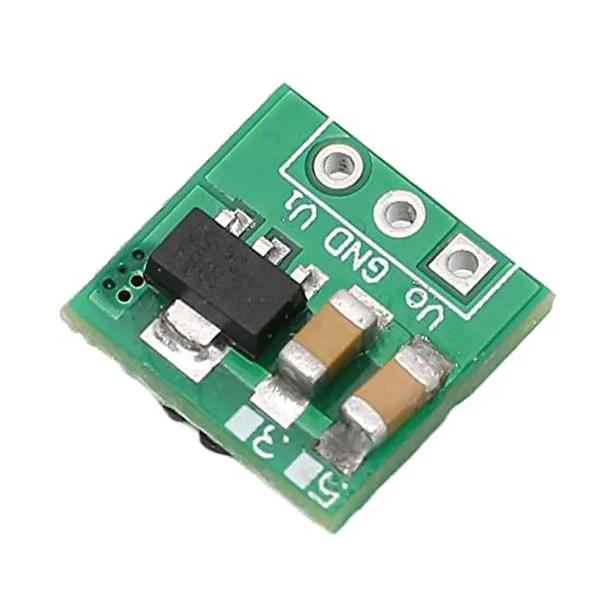

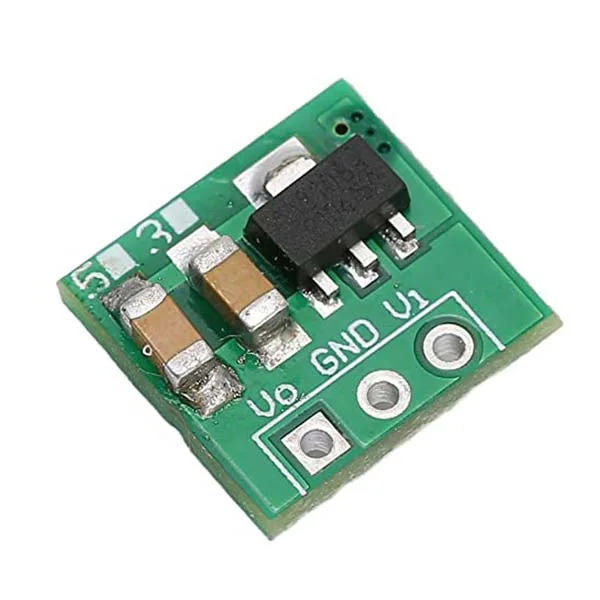

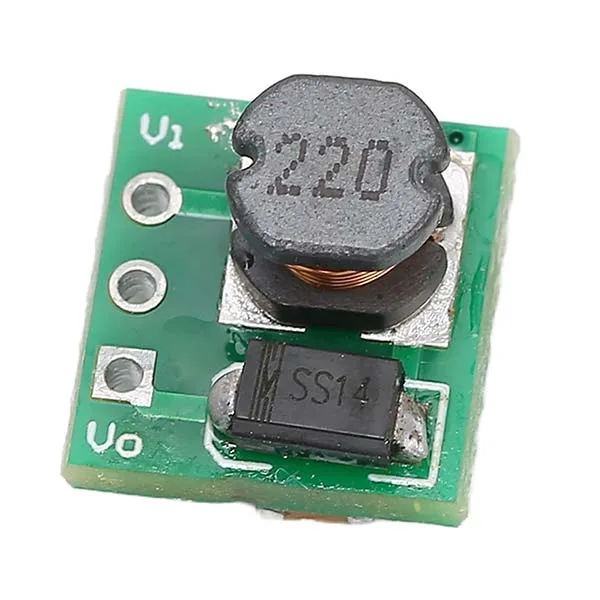

DC-DC Step-Up Regulator Module 5V

Description

DC-DC Step-Up module able to convert voltages from 0.9 V up to 5 V into a stable 5 V output, with a maximum current of 480 mA, providing reliable power even when the batteries are almost flat.

The output current it can deliver adapts automatically to the input voltage: 1–1.5 V -> 40–100 mA, 1.5–2 V -> 100–150 mA, 2–3 V -> 150–380 mA and above 3 V -> 380–480 mA. With a working frequency of 150 kHz and a typical efficiency of 85%, this mini module is ideal for powering microcontrollers, sensors, LED lamps or any portable electronic device.

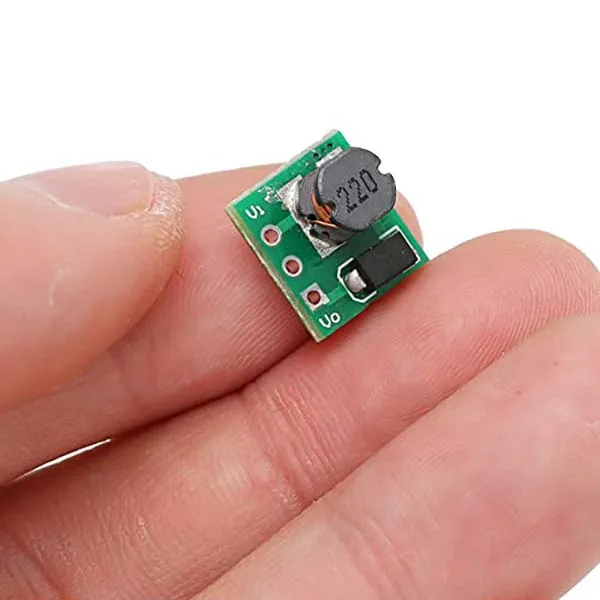

Its compact size of 11 × 10.5 × 7.5 mm and its pin pitch of 2.54 mm make it easy to fit into any DIY or professional electronics project.

Technical specifications

• Type: DC-DC Step-Up regulator module (Boost Converter)
• Output current according to input voltage:
  – 1.0 – 1.5 V -> 40–100 mA
  – 1.5 – 2.0 V -> 100–150 mA
  – 2.0 – 3.0 V -> 150–380 mA
  – above 3.0 V -> 380–480 mA
