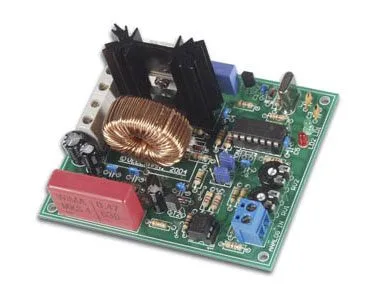

DC Voltage Controlled Dimmer for Lamp Brightness
SKU 8220-K8064EAN 5410329324537Item type: KitControllers & drivers
Description
This DC dimmer lets you adjust brightness precisely and effortlessly, giving you complete control over the atmosphere of your home or office.
Our dimmer features an opto-isolated control input, ensuring a safe and stable connection. The maximum reset adjustment ensures optimal brightness for your halogen and incandescent lamps, allowing you to create the perfect lighting for any occasion.
Thanks to advanced “Soft start” and output protection technologies, our dimmer guarantees reliable and safe operation. You won’t have to worry about potential overloads or damage to your lamps.
The built-in LED indicator provides immediate visual feedback on the set brightness, allowing you to precisely adjust the desired light level.
Technical details
| Control voltage | 0 to 12 VDC |
|---|---|
| Maximum control input draw | 2.25 mA |
| Interference suppression | per EN55015 |
| Operating voltage | 230-240 VAC |
| Maximum output load | 750 W |
| Dimensions | 90 x 75 x 40 mm |
