Development board with ATmega2560
Compact board built around the Atmega2560 microcontroller
SKU 2846-MEGA2560PRODBEAN 8219671109475Item type: Assembled, BoardArduino compatible
Description

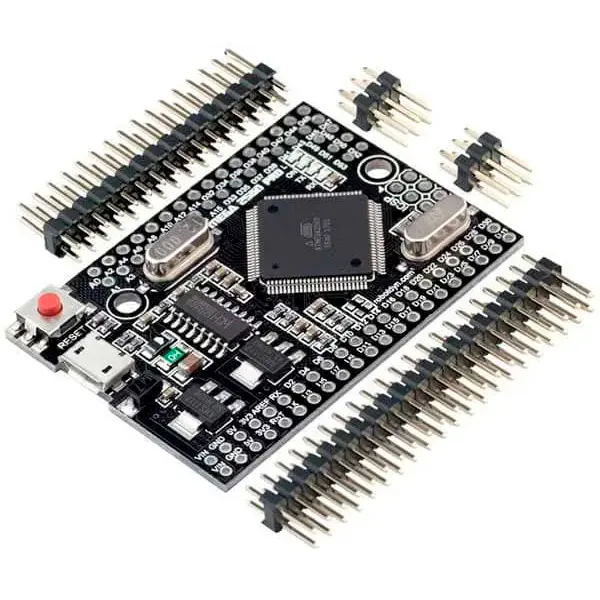

Compact electronic board based on the ATmega2560 microcontroller. It features 54 digital input/output pins (14 of which can be used as PWM outputs), 4 UARTs (serial ports), 16 analog inputs, a 16 MHz crystal oscillator, a micro USB connector with a USB-TTL converter chip that allows connecting the microcontroller to a PC, an ICSP header, and a reset button. The board can be powered directly via the Micro USB connector or via the VIN pin.
Warning! The board is supplied fully assembled except for the strip connectors.
Technical specifications
Click on the image to enlarge
- Supply voltage (via VIN and GND pins): 9 to 12 VDC
Documentation and useful links
Technical details
| Microcontroller | ATmega2560 |
|---|---|
| Operating voltage | 5 V – 220 mA |
| Digital I/O | 54 (14 of which can be used as PWM outputs) |
| Analog inputs | 16 |
| for the 5 V output | approx. 800 mA |
| for the 3.3 V output | approx. 800 mA |
| Flash memory | 256 kB (8 kB used by the bootloader) |
| SRAM | 8 kB |
| EEPROM | 4 kB |
| Clock | 16 MHz |
| USB-TTL converter chip | CH340 |
| Operating temperature | -40°C to +85°C |
| Dimensions (mm) | 54x38x5.5 |
