DIMMER FOR ELECTRONIC TRANSFORMER

Dimmer for the K8006 kit, for use with an electronic transformer.

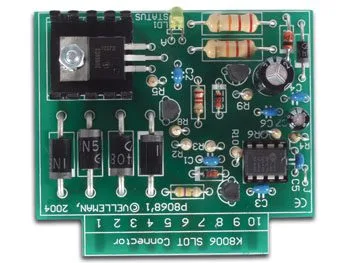

DIMMER FOR ELECTRONIC TRANSFORMER - Image 1

SKU 8220-K8068EAN 5410329328719Item type: Kit

Description

Dimmer for the K8006 kit, usable with an electronic transformer.

Features

  • “PLUG-IN” module to be used with the kit for modular home lighting control K8006
  • Ideal for incandescent lamps, halogen lamps connected to the mains, and low-voltage halogen lamps powered via electronic transformers.
  • Inductorless and filterless, coolMOS™ FET-transistor technology
  • For phase control
  • A short press of the ON/OFF button turns the device on or off, a long press activates the dimming function
  • “Soft-Start” technology to increase lamp life
  • Non-volatile memory to store the last used light intensity
  • Reduced harmonic distortion (less EMI), in accordance with EN55015
  • Status and error LED indicators

Technical details

Supply voltage 110-125VAC or 220-240VAC (50/60Hz)
Maximum load 300W/230V or 150W/115V, 0-98% adjustable
Dimmer cycle speed +/- 5 sec
PCB dimensions 65 x 57 x 20mm (2.5" x 2.2" x 0.8")
