DIMMER FOR RGB LED STRIPS

Drives RGB LED light strips

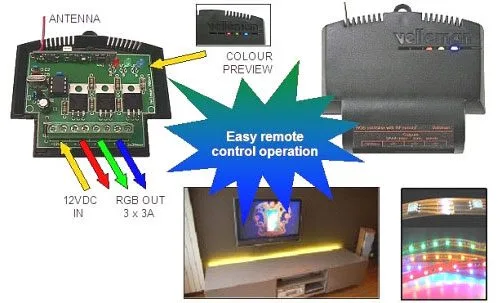

DIMMER FOR RGB LED STRIPS - Image 1

SKU 8220-VM161EAN 5410329419585Item type: Assembled

Description

Drives RGB LED light strips. With the remote control (NOT INCLUDED) you can pick one of the seven colour shades available and set its brightness. Ideal for creating striking colour lighting effects. The controller works with the VM118R and K8074 remote controls, which have to be bought separately.



FEATURES

  • 3 outputs with power MOSFETs: 12 V – 3 A
  • Ideal for use with common anode RGB LED strips
  • Up to 8 radio remote controls can be stored
  • 7 colour shades (red, green, blue, yellow, cyan, magenta and white)
  • Brightness set over 10 levels

Technical details

LED PWM frequency 300 Hz
Power supply 12 V / 9 A max
TX/RX working frequency 433 MHz
Dimensions 80 x 70 x 23 mm
