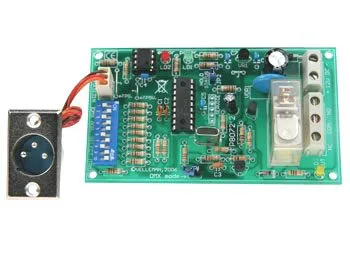

DMX relay board for lighting control

Description

The DMX relay board allows you to activate and deactivate a relay using the DMX protocol, which makes it particularly suitable for turning lights or other devices on/off.

The relay is activated when the DMX value is equal to or greater than 140, while it is deactivated if the value is 120 or lower.

The board has a dip-switch that allows you to assign an address to each device for a maximum of 512.
In case of loss of the DMX signal, the relay maintains its state.

The DMX relay board can handle a load of 8 A and requires a 12 Vdc power supply with a maximum consumption of 100 mA.

With its DMX-512 control flexibility, 3-pin XLR plug (included) and the ability to assign addresses to each board, this DMX relay board is an excellent choice for controlling lights and devices.

Features

• Possibility to assign an address to each board via dip-switch for a maximum of 512.
• Power supply voltage indicator LED
• LED indicator of relay status and error conditions.
• The relay maintains its state in case of loss of the DMX signal.
