Educational – Oscilloscope Kit
Single-channel mini oscilloscope kit
SKU 8220-EDU08EAN 5410329570736Brand: VellemanProduct type: Oscilloscopes & signal analysisOscilloscopes & dataloggers
Description

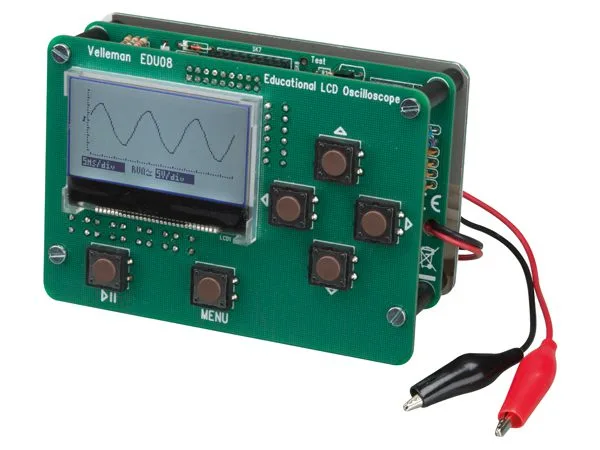

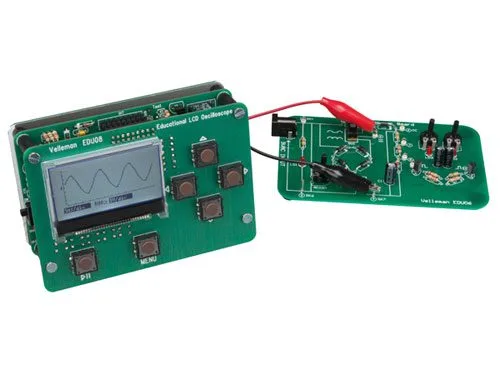

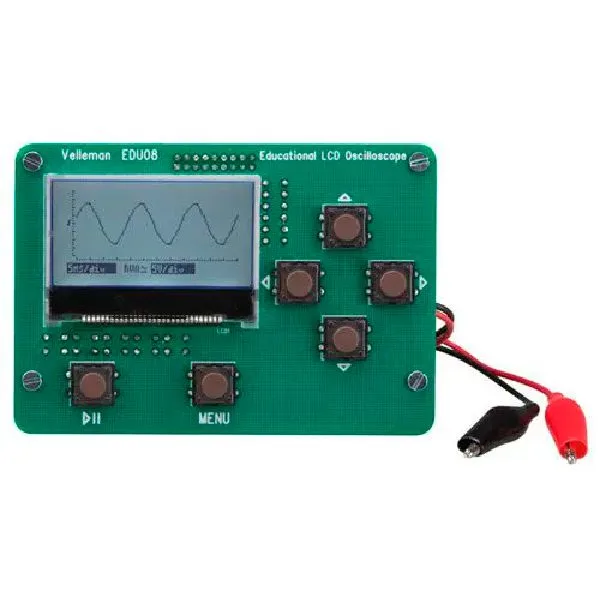

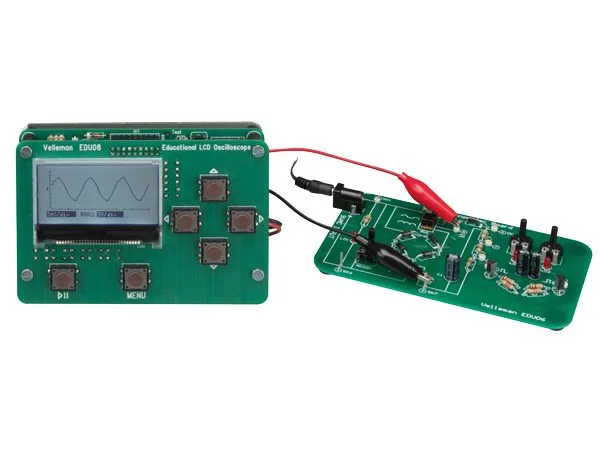

Mini single-channel oscilloscope in kit form. Equipped with an LCD display with a resolution of 64×128 pixels and white LED backlighting, 200 kHz bandwidth, 1 MS/s sampling rate (100 kS/s real-time), DC, AC + DC, true RMS, dBm, Vpp, min. and max. readings, test signal output 1.95 kHz/3.3 Vpp. This mini oscilloscope is particularly suitable for hobbyists interested in measuring and displaying electronic signals. It can also be used in combination with the Oscilloscope Tutor (EDU06).
Technical specifications
- Measurements can be performed up to: 100 kHz
- Readings: DC, AC + DC, true RMS, dBm, Vpp, min. and max.
- Readout markers: time and voltage
- Frequency reading: via markers
- Power supply: 4 AAA batteries (not included)
- Power saving mode: yes
- Dimensions (mm): 80x115x40
- Weight (with battery): 190 grams
Technical details
| High-contrast LCD display | 64 x 128 pixels with white LED backlighting |
|---|---|
| Maximum sampling rate | 1 MS/s for repetitive signals, 100 kS/s real-time |
| Input amplifier bandwidth | 200 kHz (-3 dB) |
| Input impedance | 100 kohm // 20 pF |
| Maximum input voltage | 30 V peak (AC + DC) |
| Input coupling | DC and AC |
| AD resolution | 8 bits |
| Run modes | run, single |
| Settable trigger level | in 16 steps |
| Time base range | in 15 steps, from 10 µs/div to 500 ms/div |
| Input sensitivity range | 6 steps, from 100 mV/div to 5 V/div |
| Test output | 1.95 kHz / 3.3 Vpp |
| Full auto set up for | Volt/div and time/div (or manual) |
| Sensitivity | up to 10 mV |
