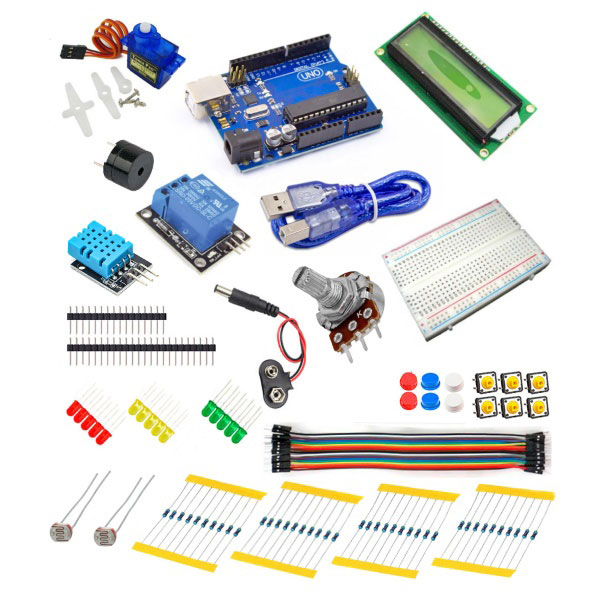

ELEARDUKIT1 – UNO R3 Basic Kit

• 01 pc – Uno R3 with Atmega328
• 01 pc – USB A / B cable – 30 cm
• 01 pc – Backlit 16×2 LCD display
• 01 pc – 9-gram RC micro servo – 23×12.5×30 mm
• 01 pc – 1-relay module, 5 VDC 10A
• 01 pc – Linear potentiometer 5 Kohm 1/8 watt
• 01 pc – Temperature and humidity sensor DHT11
• 01 pc – 12 mm buzzer without electronics
• 20 pcs – Dupont male-to-male jumpers
• 01 pc – 400-hole breadboard (8.2 x5.5 cm)
• 15 pcs – LEDs in 3 colours (5 red, 5 yellow, 5 green)
• 10 pcs – 220 ohm resistors
• 10 pcs – 1 Kohm resistors
• 10 pcs – 10 Kohm resistors
• 10 pcs – 100 Kohm resistors
• 02 pcs – 5516 photoresistor (min – max) 5~10 Kohm
• 06 pcs – PCB pushbutton with coloured caps
• 01 pc – 9V battery connector
• 01 pc – 40-way pin strip

Uno R3 is an electronic board compatible with the Arduino UNO R3 and based on the Atmega328 microcontroller. It has 14 digital inputs/outputs (6 of which can be used as PWM outputs), 6 analogue inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header and a reset button. It carries everything needed to support the microcontroller; to get started, just connect it to a computer with a USB cable, or power it from an AC/DC adapter or a battery. It uses the Atmega16U2 USB-to-serial converter programmed as a USB-to-serial converter.

• Power supply:
  – 7 to 12 V (via the plug)
  – 5 V (via the USB port)
• DC current for the 3.3 V pin: 50 mA

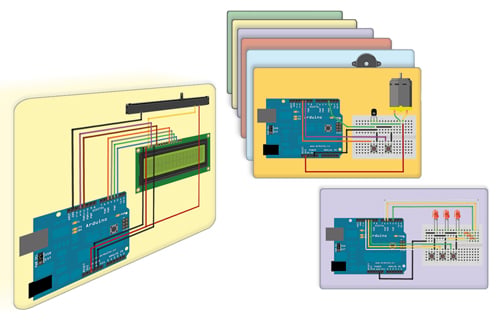

The examples provided include both projects you can build with the components in this kit and projects that use other components not supplied in the kit.
