ESP32-CAM Programming Interface

USB (Type C) programming interface for the ESP32-CAM. Connect the module to your PC over USB to upload sketches and get the most out of the board.

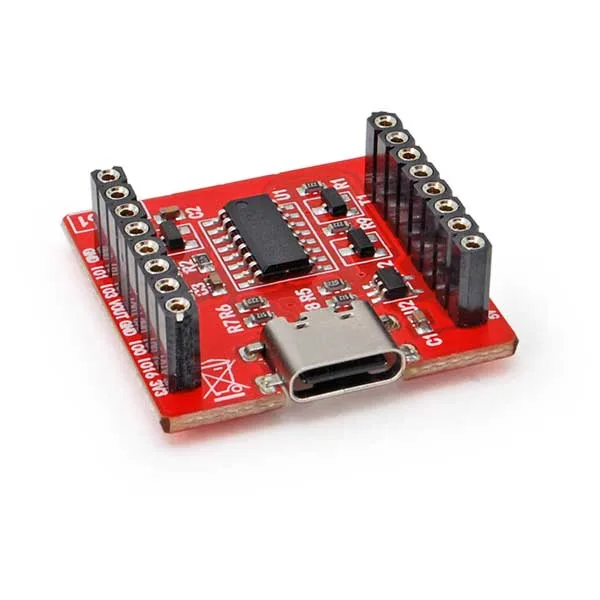

ESP32-CAM Programming Interface - Image 1

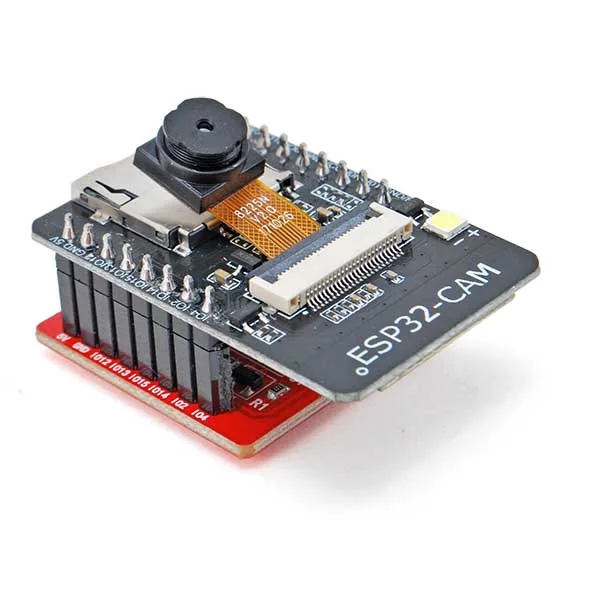

ESP32-CAM Programming Interface - Image 3

SKU 7100-FT1661MEAN 8219671070515Item type: Assembled, Shields & add-ons

Description

This ESP32-CAM USB programmer is the ideal way to interface and program the ESP32-CAM module over a USB Type C connection, using the Arduino IDE 2.0.3 environment or later. With this board, no external devices are needed to complete the programming.

Designed to adapt the native UART interface of the ESP32-CAM module to the more common and versatile USB interface, the ESP32-CAM USB Programmer handles the control signals such as RTS and DTR so as to put the camera module into programming mode.Solder-it-yourself kit

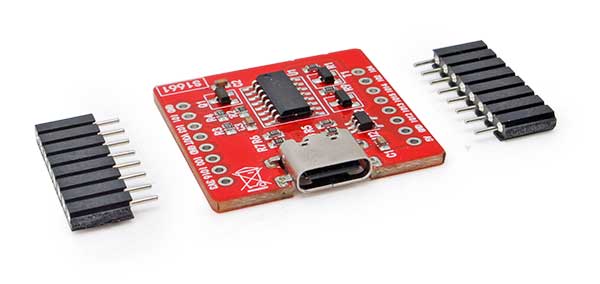

FT161M - programming interface for ESP32-CAM
The module is supplied with the header strips to be soldered

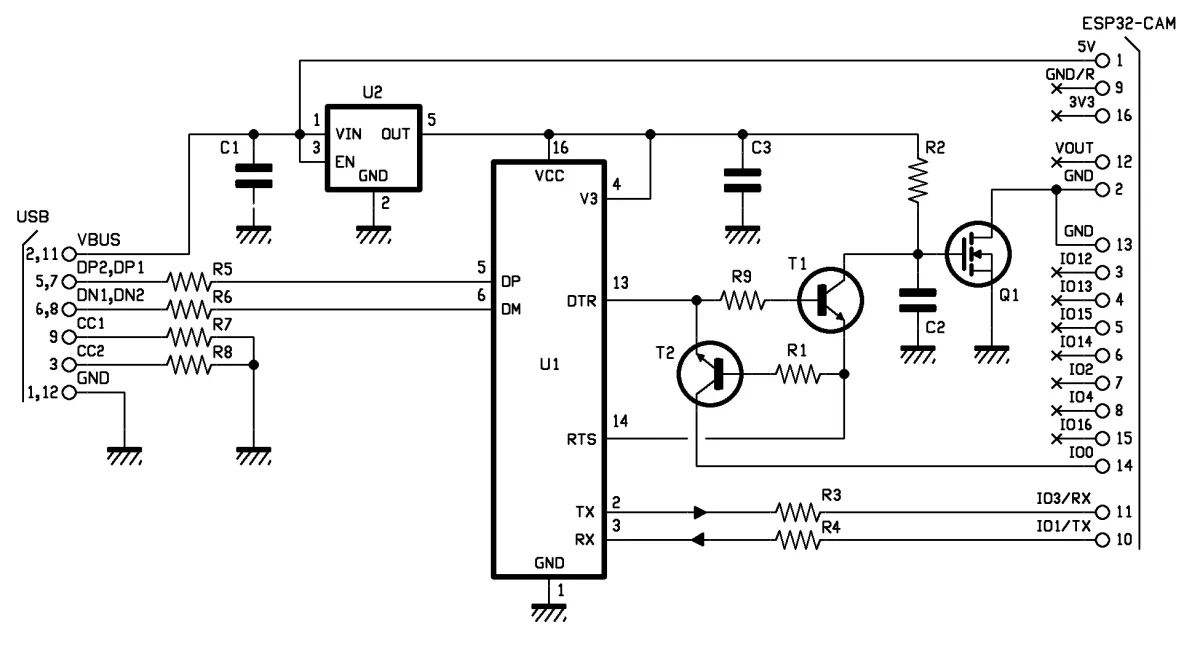

Circuit diagram

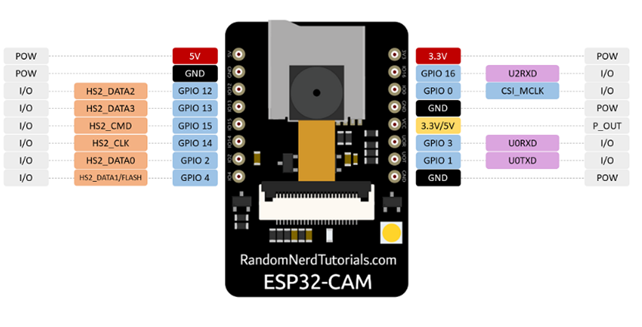

ESP32-CAM module pinout
pinout ESP32-CAM

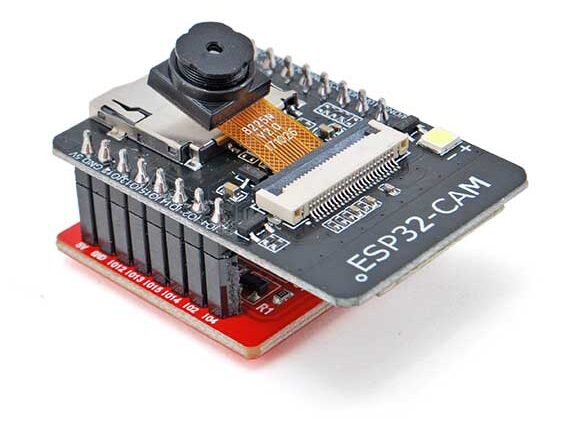

The ESP32-CAM module fitted on the FT1661M interface

The ESP32-CAM module must be purchased separately
The ESP32-CAM module must be purchased separately

Technical details

Power supply 5V
USB driver CH340C
Dimensions 28x28x9mm
Weight 5g
