Microduino Core ATMEGA32U4

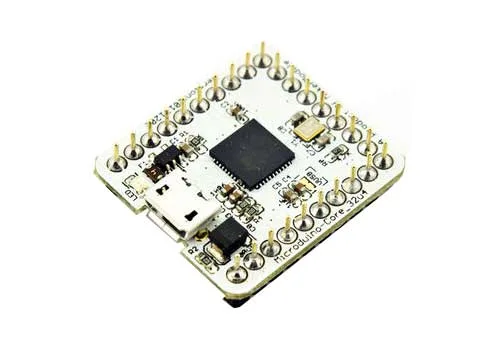

Microduino Core USB is a tiny (28x25.4 mm) board built around the 8-bit Atmega32U4 microcontroller
SKU 3080-MDUINOCOREUSBEAN 8219671070485Item type: Assembled, BoardArduino compatible, Development systems
Description
Microduino Core USB is a very small (28 x 25.4 mm) electronic board based on the 8-bit Atmega32U4 microcontroller. Compatible with Arduino Leonardo, it features a USB connection, 20 digital input/output pins (8 of which can be used as PWM outputs), 6 analog inputs, 32 kB of Flash memory (4 kB used by the bootloader), 1 hardware serial port, 1 virtual USB serial port, a 16 MHz oscillator crystal, and a male/female connector for stacking modules. For programming, use the same Arduino IDE.
Technical specifications
- DC current for 3.3 V pin: 50 mA
- Serial:
– hardware – RX0, TX1
– virtual USB serial port - Five external interrupts:
– interrupt 4: D2
Documentation and useful links
Technical details
| Microcontroller | Atmega32U4 |
|---|---|
| Power supply | 5 Vdc / 3.3 Vdc |
| Digital I/O | 20 (8 of which can be used as PWM outputs) |
| Analog inputs | 6 |
| DC current per I/O pin | 40 mA |
| Flash memory | 32 kB (4 kB used by the bootloader) |
| SRAM | 2.5 kB |
| EEPROM | 1 kB |
| Clock speed | 16 MHz (5V) - 8 MHz (3.3V) |
| I²C interface | SDA, SCL |
| interrupt 0 | SCL |
| interrupt 1 | SDA |
| interrupt 2 | D0 |
| interrupt 3 | D1 |
