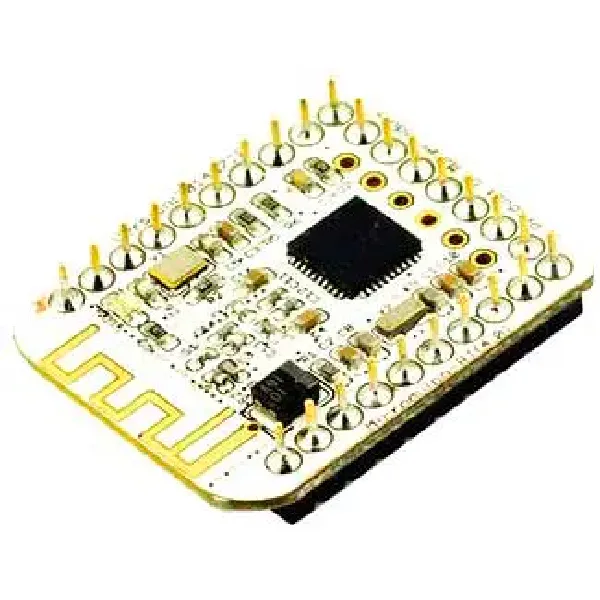

Microduino Bluetooth Shield
Based on the Texas Instruments CC2540 chip, this shield adds a Bluetooth interface with transparent transmission to Microduino modules
SKU 3080-MDUINOBTEAN 8219671070508Item type: AssembledArduino compatible, Development systems
Description

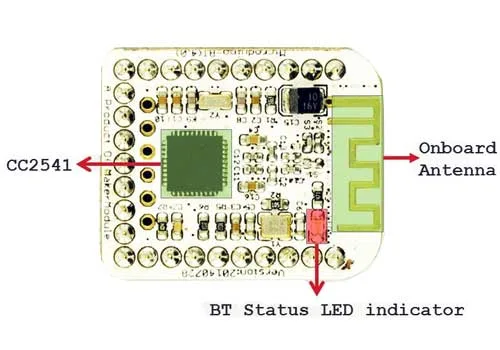

Based on the Texas Instruments CC2540 chip, this shield adds a Bluetooth interface with transparent transmission to Microduino modules. It supports AT commands, device name, and pairing code. It features an onboard PCB antenna, status LED, and male/female connectors for stacking modules. Compatible with the Arduino IDE. Dimensions (mm): 30.5×25.5×7.5.
Technical details
| Power supply | 3.3 Vdc 50 mA |
|---|---|
| Bluetooth protocol | Bluetooth V4.0 BLE |
| Frequency | 2.4 GHz ISM band |
| Modulation | GFSK (Gaussian Frequency Shift Keying) |
| Transmission power | 4dBm |
| Sensitivity | -84dBm at 0.1% BER |
| Communication form | serial transmission |
| Asynchronous | 6 kbps |
| Synchronous | 6 kbps |
| Status indicator | LED |
