Microduino Wi-Fi CC3000 Shield
Microduino shield based on the Texas Instruments CC3000 2.4 GHz Wi-Fi chip
SKU 3080-MDUINOWIFIEAN 8219671070522Item type: AssembledArduino compatible, Development systems
Description

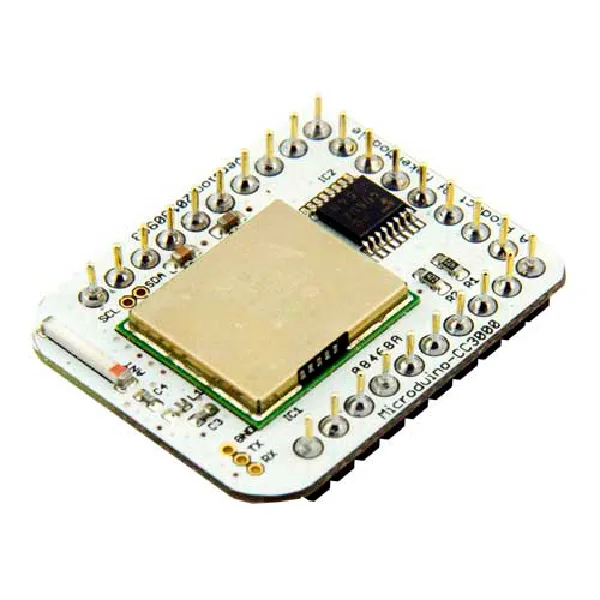

Shield for Microduino based on the 2.4 GHz CC3000 Wi-Fi chip from Texas Instruments. Compatible with the 802.11 b/g standard, it features a TCP/IP IPv4 stack, ceramic antenna on PCB, and male/female connector for stacking modules. Ideal for wireless sensor networks, home automation, building automation, and custom applications. Power: 3.3 Vdc or 5 Vdc, dimensions (mm): 31.8×25.5×7.5.
Technical specifications
- Wireless Network Processor
- IEEE 802.11 b/g
- Integrated TCP/IP IPv4 stack
Technical details
| Power | 3.3 Vdc or 5 Vdc |
|---|---|
| dimensions (mm) | 31.8x25.5x7.5 |
| Tx power | 11 Mbps CCK with +18dBm |
| Rx sensitivity | 11 Mbps CCK with -82dBm |
| Flash | 2 Kbytes |
| RAM | 250 bytes |
| Operating temperature | -20°C to +70°C |
