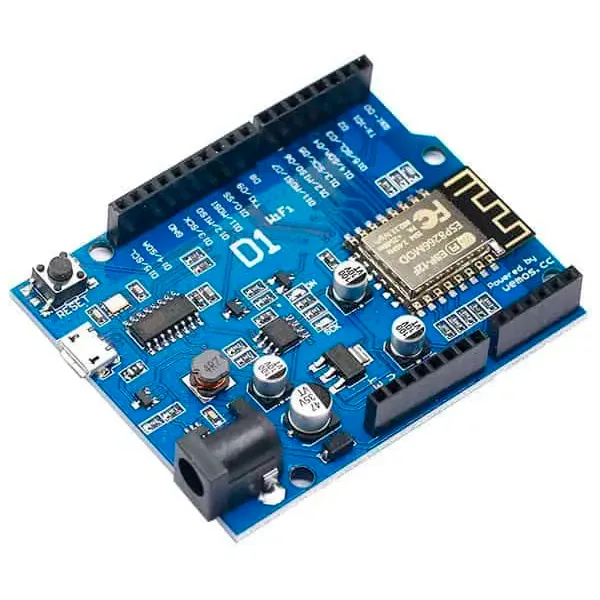

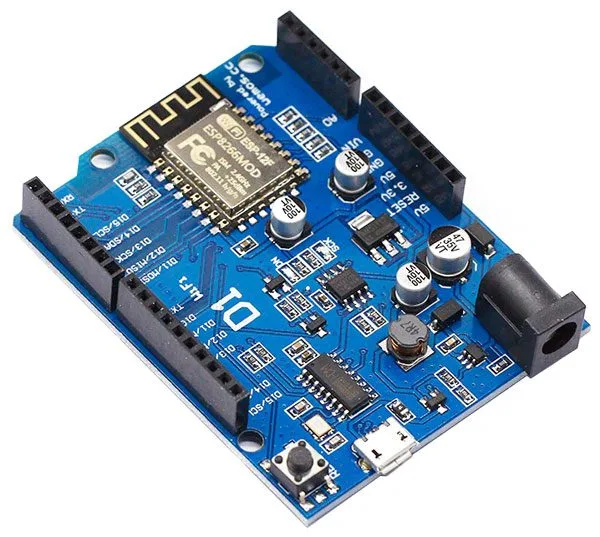

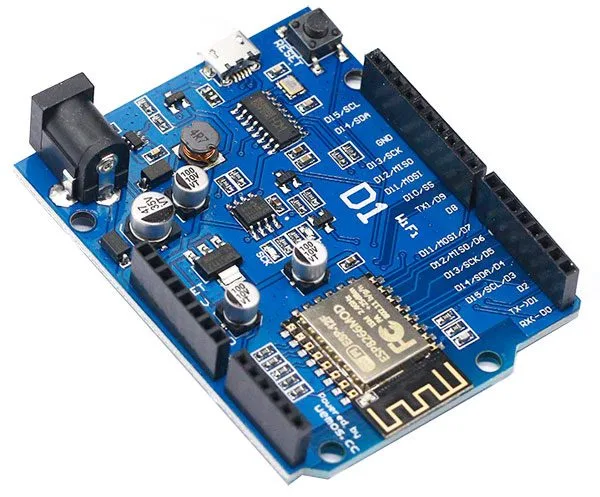

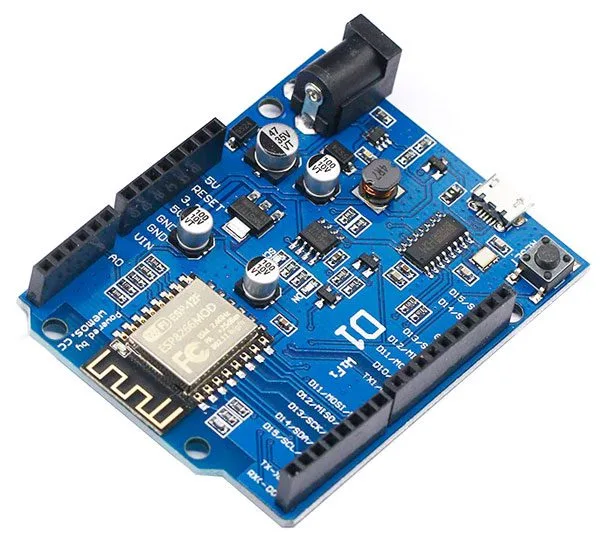

ESP8266 Board, Arduino Compatible
SKU 8300-YC008EAN 8219671102681Item type: Assembled, BoardArduino compatible, ESP8266 / ESP32, IoT (Internet of Things)
Description
Based on the ESP8266 Wi-Fi module and with an Arduino Uno-compatible form factor, this board lets you build applications that need Wi-Fi connectivity and the ease of use of Arduino. The ESP8266 is a small Wi-Fi transceiver module compatible with the 802.11 b/g/n standard at 2.4 GHz, featuring an integrated TCP/IP stack, 19.5 dBm output power, data interfaces (UART / HSPI / I2C / I2S / Ir Remote Control GPIO / PWM), and a PCB antenna. Programmable via the Arduino IDE, the board has 11 digital I/Os with interrupt/PWM/I2C/one-wire (except D0), 1 analog input (max. 3.3 V), a micro USB connector, a reset button, a 9 to 24 V power input, and a 5 V 1 A output. Dimensions (mm): 69×53.5×12, weight: 22 grams.
ESP8266 Module Technical Specifications
- Data interfaces: UART / HSPI / I2C / I2S / Ir Remote Control GPIO / PWM
- Weight: 3 grams
ARDUINO IDE
Through the Arduino IDE you can select the board, communication speed, CPU frequency, etc. You can also use the example sketches (EXAMPLES folder).
Technical details
| Model | ESP8266-12F |
|---|---|
| Wireless standard | 802.11 b/g/n |
| Frequency range | 2.4 GHz - 2.5 GHz (2400M-2483.5M) |
| Wi-Fi modes | Station / SoftAP / SoftAP+station |
| Stack | Integrated TCP/IP |
| Output power | 19.5 dBm in 802.11b mode |
| Security modes supported | WPA / WPA2 |
| Encryption | WEP / TKIP / AES |
| AT commands supported | yes |
| Power supply | 3 Vdc to 3.6 Vdc (3.3 Vdc recommended) |
| Current consumption | 80 mA average - standby < 1 mW |
| Operating temperature | -40°C to +125°C |
| Certifications | FCC / CE / TELEC |
| Dimensions (mm) | 24x16x3 |
