I/O Side Panel for Mini Lab

The input/output side panel is designed to be used as an add-on for the Totem Mini Lab
I/O Side Panel for Mini Lab - Image 1

SKU 7265-TOTEMIOSIDEEAN 8219671110211Item type: Assembled

Description

The input/output side panel is designed to be used as an add-on for the Totem Mini Lab. It carries a handful of parts that are usually awkward to fit on a breadboard. Potentiometers and relays, for instance, are not only fiddly to insert but can even damage the breadboard contacts.

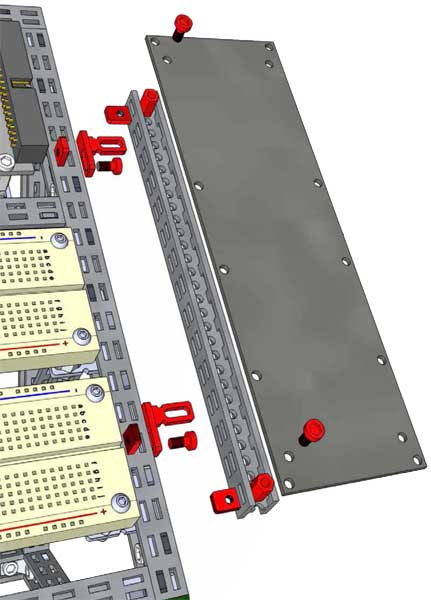

The kit includes all the mechanical parts and the tools needed to fit the side panel to the Totem Mini Lab frame, ready to use.

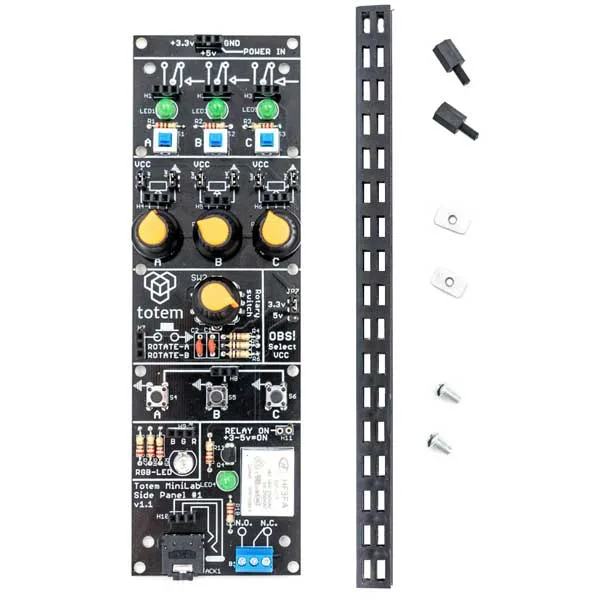

This side panel puts the following parts within easy reach:

  • 3 pushbutton switches with LED indicators.
  • 3 potentiometers, 10 kOhm.
  • 1 rotary encoder.
  • 3 pushbuttons.
  • 1 RGB LED.
  • 1 audio jack socket, 3.5 mm.
  • 1 relay, 10 A / 250 V, with status LED
