Linear Bench Power Supply 0-30 V/5 A
Bench power supply with output voltage adjustable from 0 to 30 Vdc and a maximum current of 5 A
SKU 8220-LABPS3005NEAN 5410329643027Output voltage: Manually adjustableBench power supplies
Description
|

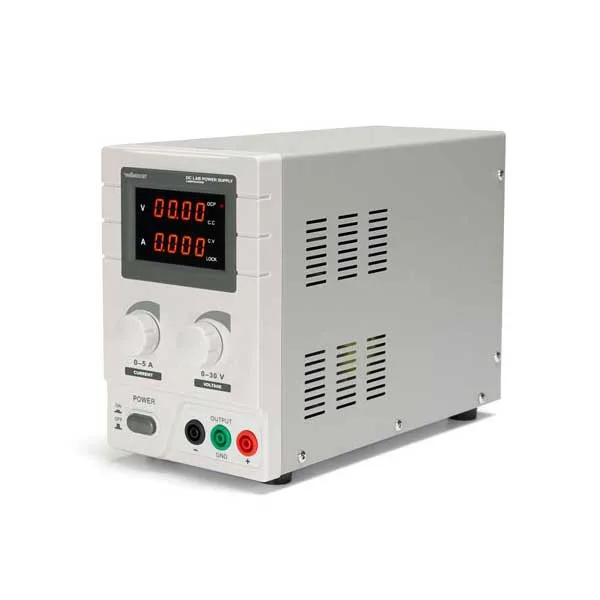

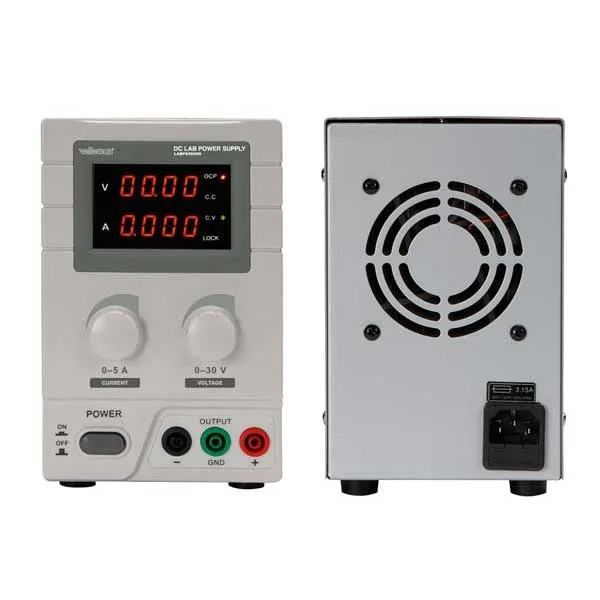

Bench power supply with output voltage adjustable from 0 to 30 Vdc and a maximum current of 5 A. It has a twin LED display showing voltage and current, coarse and fine voltage and current adjustment, protection modes: voltage or current limiting, and a low-noise, temperature-controlled cooling fan. Colour: grey. |
| Technical specifications |
|
Technical details
| Colour | grey |
|---|---|
| Power supply | 220 VAC (± 10 %) 50/60 Hz |
| Voltage | 0-30 Vdc, adjustable |
| Current | 0-5 A, adjustable |
| Power | 150 W max |
| Power factor | (cos phi): 0.82 |
| Resolution | 10 mV / 1 mA |
| Fuse | 3.15 A / 250 V |
| Ripple voltage | =/< 1.0 mV (rms) |
| Ripple current | 3 mA (rms) |
| Operating temperature | 0 to +40°C, < 90% relative humidity |
| Dimensions | 117 x 190 x 270 mm |
| Weight | 4.8 kg |
