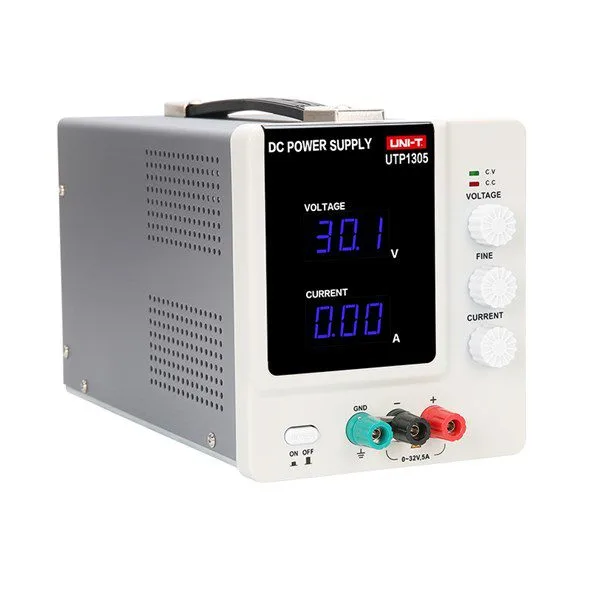

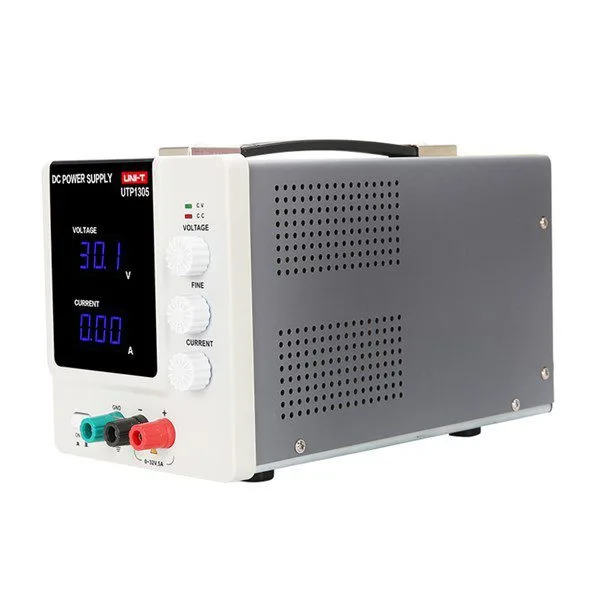

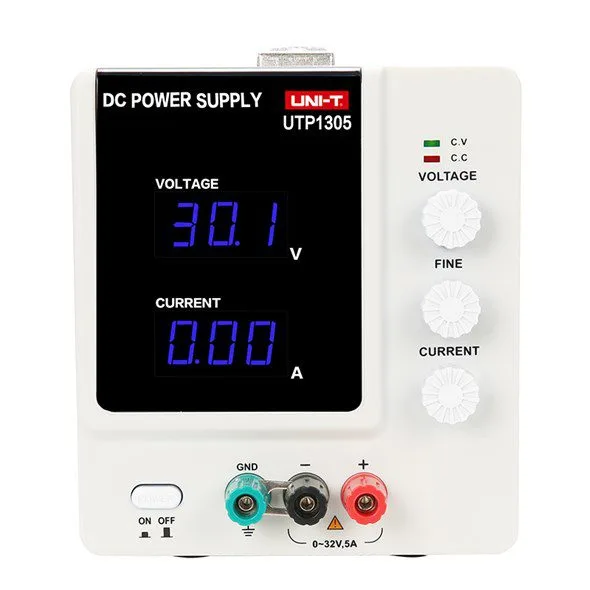

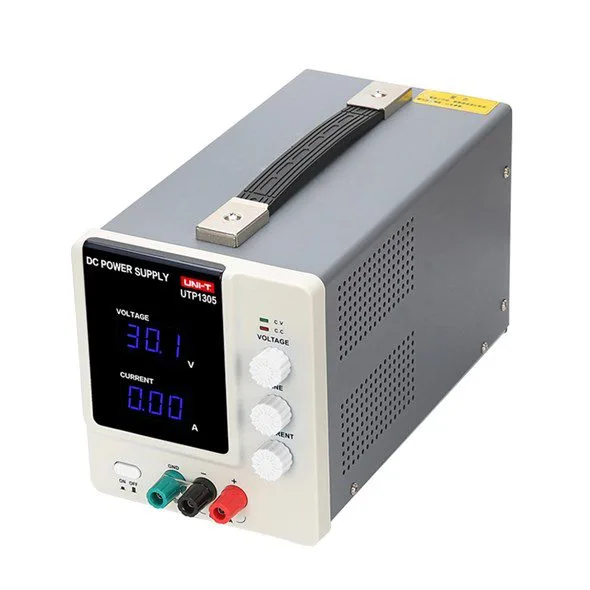

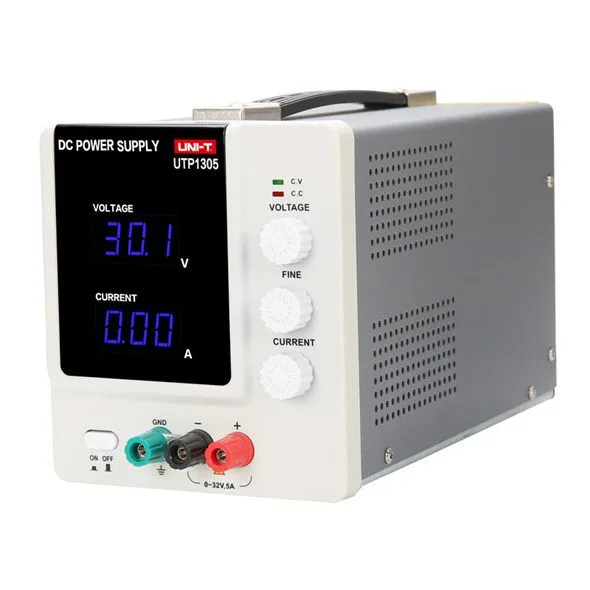

Linear bench power supply 0-32 V/5 A, UNI-T
Bench power supply with output voltage adjustable from 0 to 32 Vdc and a maximum current of 5 A
SKU 8240-TP178EAN 6935750513071Output voltage: Manually adjustableBench power supplies
Description
Laboratory power supply with adjustable output voltage from 0 to 32 Vdc and maximum current of 5 A. It features a dual LED display for voltage and current, fine and coarse voltage and current adjustments, protection modes: voltage or current limiting, and a low-noise, temperature-controlled cooling fan.
Technical specifications
- Output voltage 0-32V
- Output current 0-5A
- Load regulation:
– Voltage <= 0.01% 3mV
– Current <= 0.2% + 3mA - Fine regulation:
– Voltage <= 0.01% + 3mV
– Current <= 0.1% + 5mA
Technical details
| Ripple voltage | 1mV rms |
|---|---|
| Ripple current | 3mA rms |
| Power supply | 230Vac, 50-60Hz |
| Weight | 6kg |
| Dimensions | 145x175x284mm |
