Linear bench power supply, 2 outputs 0-30 V / 0-5 A plus fixed 5 V / 3 A output

Linear bench power supply with two outputs adjustable in voltage and current (0 to 30 VDC / 0 to 5 A) and a fixed 5 VDC / 3 A output

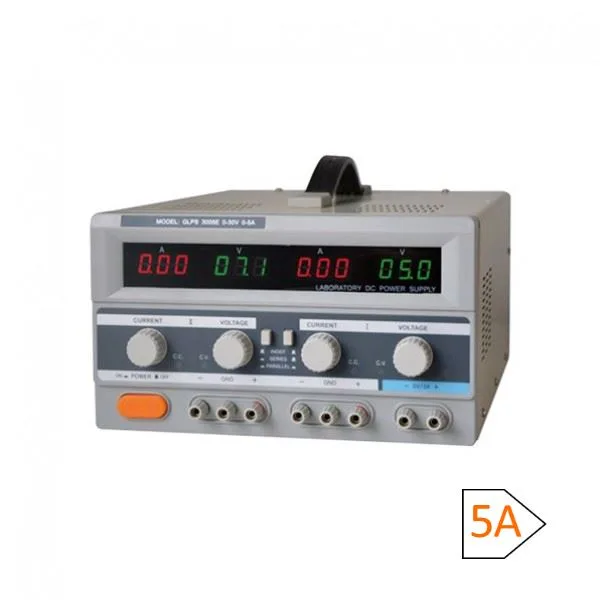

Linear bench power supply, 2 outputs 0-30 V / 0-5 A plus fixed 5 V / 3 A output - Image 1
Linear bench power supply, 2 outputs 0-30 V / 0-5 A plus fixed 5 V / 3 A output - Image 3
Linear bench power supply, 2 outputs 0-30 V / 0-5 A plus fixed 5 V / 3 A output - Image 4
Linear bench power supply, 2 outputs 0-30 V / 0-5 A plus fixed 5 V / 3 A output - Image 5

SKU 8400-AL2X3005EAN 5410329595258Output voltage: Manually adjustable

Description

Bench power supply with dual output adjustable in voltage and current (0 to 30 VDC / 0 to 5 A) and a fixed 5 VDC / 3 A output. Features a backlit LCD display for voltage and current, voltage and current adjustments, overcurrent protection, low ripple and noise. Two channels can be connected in series or in parallel using a switch. It reliably maintains set values regardless of fluctuations in the supply voltage or the connected load.

Technical details

Power supply 220 VAC - 50 Hz
Voltage 0 to 30 VDC
Current 0 to 5 A
Fixed output 5 VDC / 3 A
Ripple voltage < 1 mV
Mains protection fuse
Dimensions (mm) 360x265x165
Weight 10 kg
