LoRa HAT for Raspberry Pi – 433 MHz

LoRa HAT for Raspberry Pi - 433 MHz - Image 1

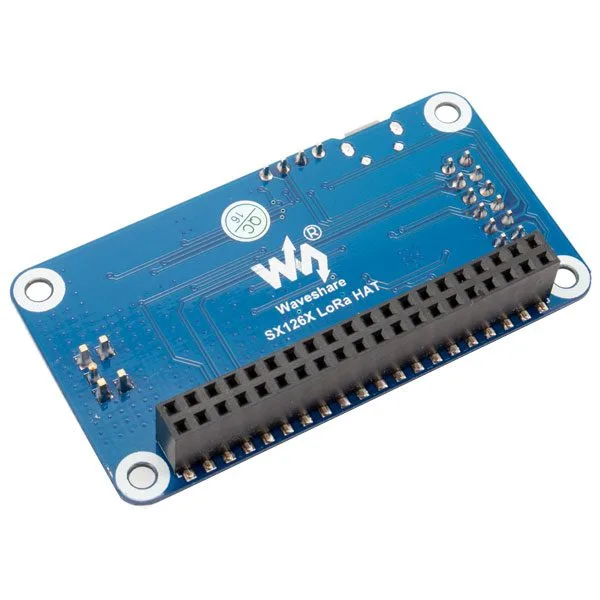

LoRa HAT for Raspberry Pi - 433 MHz - Image 3
LoRa HAT for Raspberry Pi - 433 MHz - Image 4

SKU 2850-SX1268LORA433EAN 8219671109314Item type: Assembled

Description

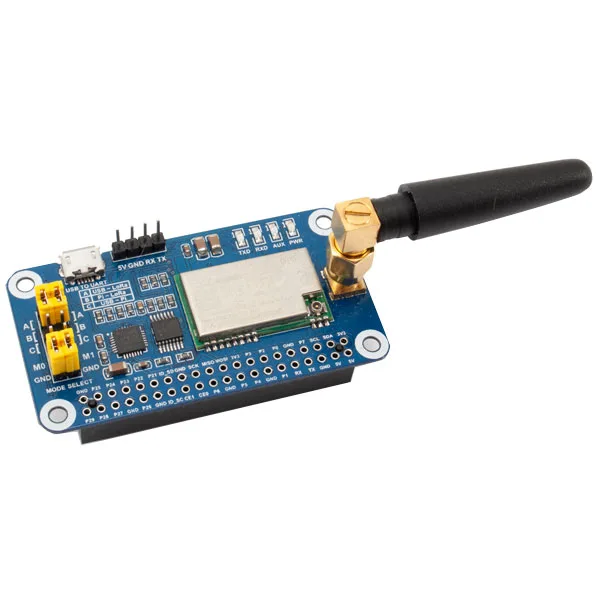

Designed to work with Raspberry Pi and based on the SX1268 module at 433 MHz, the LoRa HAT provides two-way data transmission up to 5 km over the serial port. It supports automatic retransmission, low-power modes such as deep sleep and Wake on Radio (ideal for battery-powered applications), wireless parameter configuration, RSSI signal strength indication and the LBT function, which can be used to avoid interference. It has a 40-pin GPIO connector for Raspberry Pi, a CP2102 chip for serial debugging, a UART control port for connecting host boards such as Arduino / STM32 and 4 status LEDs: UART RXD and TXD, AUX and PWR.

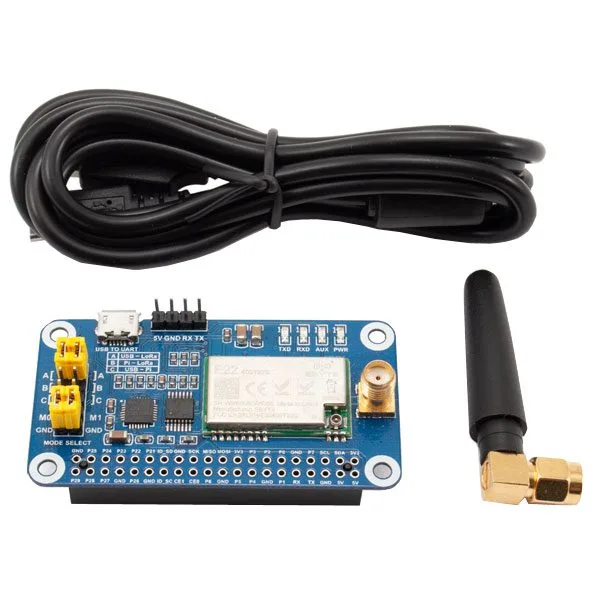

The package includes: LoRa HAT, antenna and USB to micro USB cable.

Please note! The Raspberry Pi is not included.
Features
  • 40-pin GPIO connector for Raspberry Pi
  • CP2102: USB to UART converter, for serial debugging
  • UART control port, for connecting host boards such as Arduino / STM32
  • 4 status LEDs: UART RXD and TXD, AUX and PWR
  • LoRa spread spectrum modulation technology, up to 84 signal channels available, longer communication range, better interference immunity
  • Low-power modes such as deep sleep and Wake on Radio, ideal for battery-powered applications
  • Supports the LBT function, which can be used to avoid interference
  • Supports RSSI signal strength indication, to assess signal quality
  • Supports wireless parameter configuration
  • Development resources and manual available (examples for Raspberry Pi / STM32)
Specifications
  • Range: 5 km (clear sky, 2.5 m height, 5 dBi antenna gain, 2.4 kbps radio data rate)
  • Dimensions (mm): 65×30.5×15
  • Operating temperature: -40°C to + 85°C
Documentation and useful links

Technical details

RF module SX1268
Frequency 433 MHz
Antenna 433 MHz antenna (2dBi)
Transmit power 22dBm (10/13/17/22dBm programmable)
Receive sensitivity -147dBm
Power supply 5 VDC
transmitting 110 mA
receiving 11 mA
sleep 2 µA
Communication interface UART (TTL level)
Logic level 3.3V/5V
Baud rate 1200bps ~ 115200bps (9600bps default)
Packet length 240 bytes (32/64/128/240 bytes – programmable)
Buffer 1000 bytes
