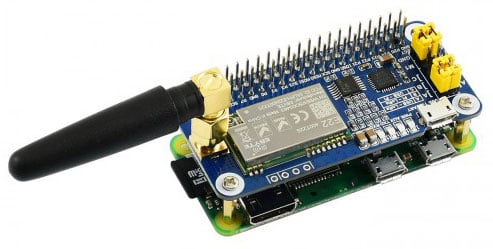

LoRa HAT for Raspberry Pi – 868 MHz

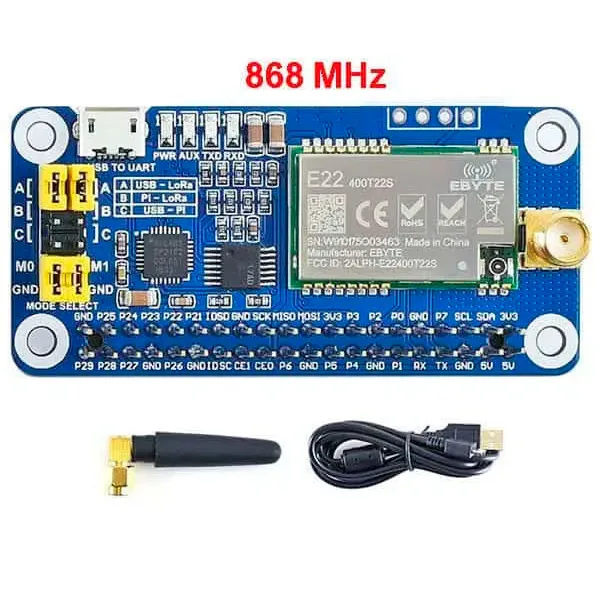

The package includes: LoRa HAT, antenna and USB to micro USB cable.

Please note! Raspberry Pi is not included.

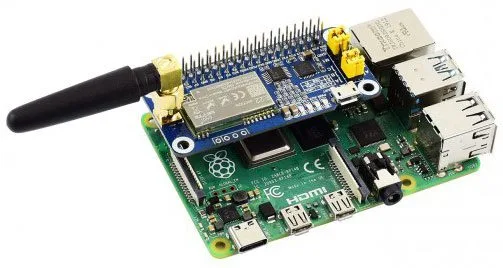

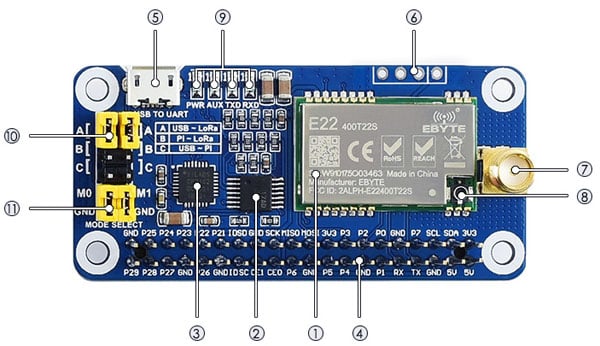

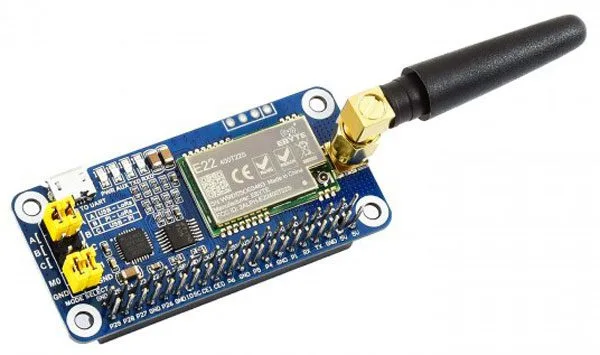

1. 74HC125V: level translator
2. 40-pin connector for Raspberry Pi
3. USB TO UART port
4. UART pads for connecting host boards such as STM32 / Arduino
5. SMA antenna connector
6. IPEX antenna connector
7. UART selection jumper
   – A: control the LoRa module through USB TO UART
   – B: control the LoRa module through Raspberry Pi
   – C: access Raspberry Pi through USB TO UART
8. LoRa mode selection jumper

• 40-pin GPIO connector for Raspberry Pi
• CP2102: USB to UART converter, for serial debugging
• UART control port, for connecting host boards such as Arduino / STM32
• 4 status LEDs: UART RXD and TXD, AUX and PWR
• LoRa spread spectrum modulation technology, up to 81 signal channels available, longer communication range, better interference immunity
• Low-power features such as deep sleep and Wake on Radio, ideal for battery-powered applications
• Supports the LBT function, which can be used to avoid interference
• Supports RSSI signal strength indication, to assess signal quality
• Supports wireless parameter configuration
• Development resources and manual available (examples for Raspberry Pi / STM32)

• Current consumption:
  – receiving: 11 mA
  – Sleep: 2 µA
• Communication interface: UART (TTL level)
• Logic level: 3.3V/5V
• Baud rate: 1200bps ~ 115200bps (9600bps default)
• Packet length: 240 Byte (32/64/128/240 Byte – programmable)
• Buffer: 1000 Byte
• Range: 5 km (clear sky, altitude 2.5 m, antenna gain 5 dBi, air data rate 2.4 kbps)

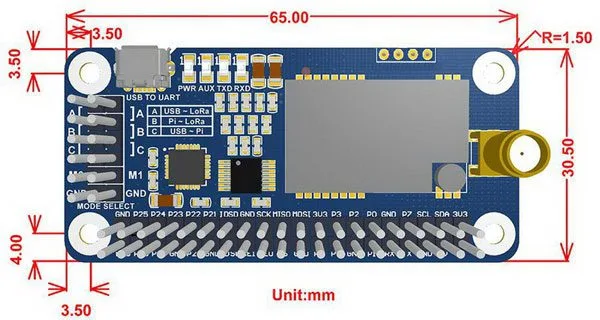

• Dimensions (mm): 65×30.5×15
• Operating temperature: from -40°C to + 85°C

• www.waveshare.com/wiki/SX1262_868M_LoRa_HAT
