Maqueen Lite Robot – Green

Description

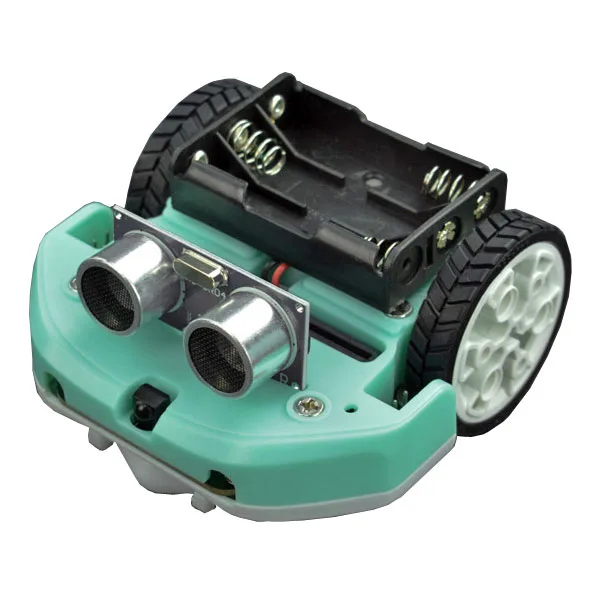

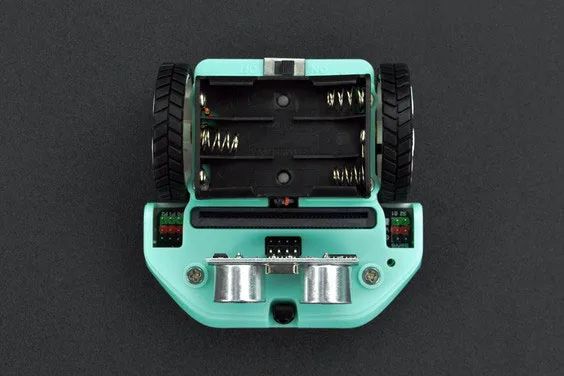

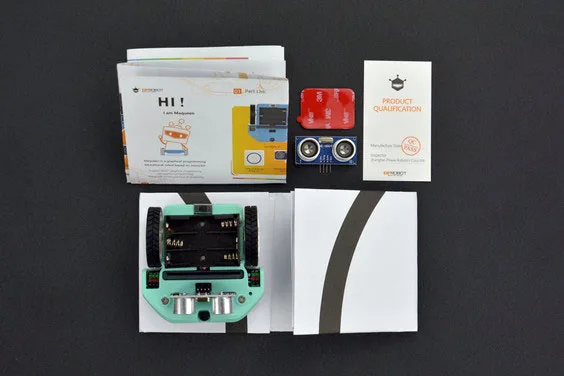

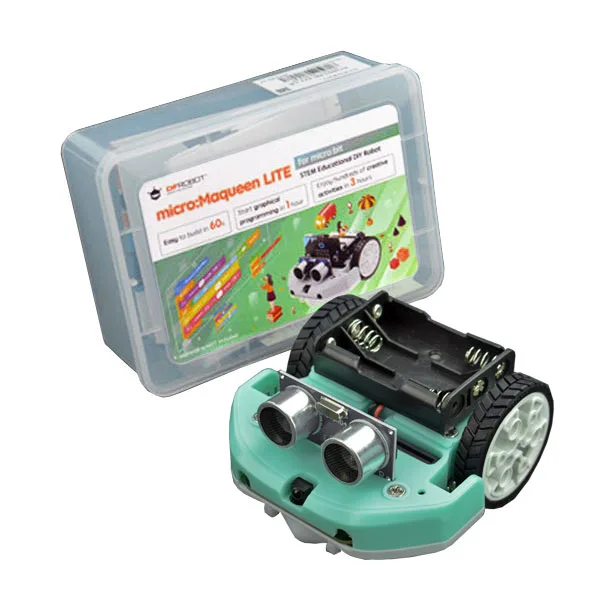

Maqueen Lite is a programmable educational mini robot based on the micro:bit (not included, see related products). It features a connector for inserting the micro:bit board, 2 miniature motors with metal gears, 2 ABS wheels with eco-friendly rubber tires, 2 infrared sensors for line following, a buzzer, an infrared receiver, 2 LED lights, 4 RGB LEDs, an ultrasonic distance sensor, a battery holder, and a line-following map.

Maqueen Lite is compatible with micro:bit V1 and V2 (not included) and can be programmed using the Mind+ graphical programming platform by DFRobot or MakeCode.

The robot comes fully assembled! You will only need to add the batteries and the micro:bit board (sold separately) and program it with one of the many examples available on the Wiki page.

LED Lights and RGB Lights

Follows the Light Source

Line Following

Technical Specifications

• 2 infrared sensors for line following
• Buzzer
• Infrared receiver (NEC encode)
• 2 LED lights (high/low level control)
• 4 RGB ambient LEDs (16 million colors)

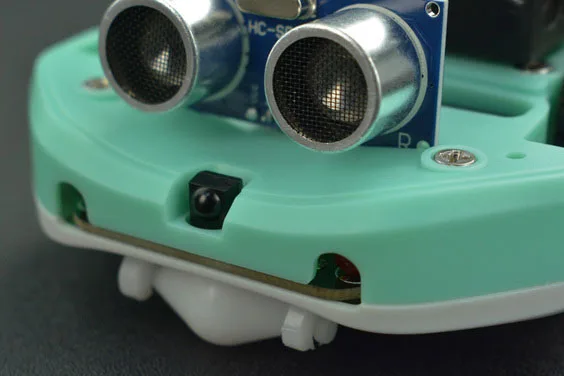

• Ultrasonic distance sensor
• I²C interface (3.3V)
• 2 RC Servo connectors (S1 S2)
• 3 Gravity Expansion Ports (P0, P1, P2)
• 2 Motors:
  – Metal gears

Documentation and Useful Links

• Product wiki
