Metal Micro Gearmotor 12V – 30 rpm

Metal micro gearmotor, suited to building robots, automated mechanisms and the like.

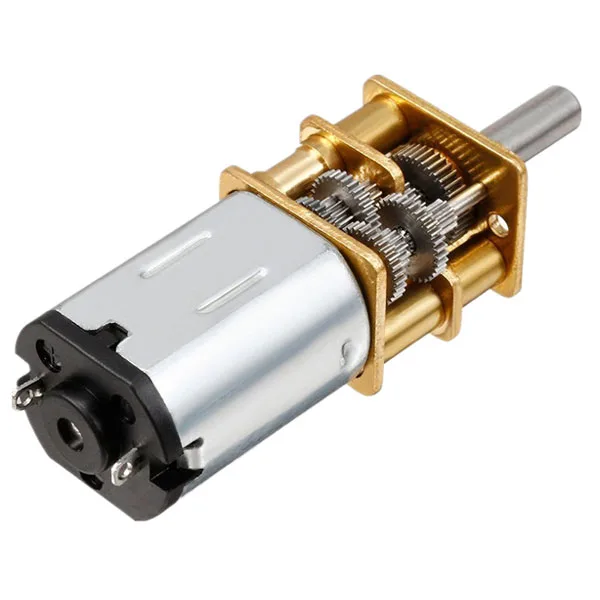

Metal Micro Gearmotor 12V - 30 rpm - Image 1

SKU 8300-MMG12V30EAN 8219671076869Item type: Assembled

Description

Metal micro gearmotor running on 12 Vdc, with a speed of 30 rpm and a 298:1 reduction ratio. Metal “D”-shaped output shaft 9.27 mm long; the brass face plate has two threaded holes for M1.6 mounting screws (1.6 mm diameter, 0.35 mm thread pitch). It weighs about 10 grams. Direction of rotation set by the supply polarity. Particularly suited to building robots, automated mechanisms and the like.
Dimensions (mm)
click to enlarge

Technical details

Nominal voltage 12 Vdc
Reduction ratio 298:1
Maximum torque 1.2 kg·cm
No-load speed 30 rpm
Stall current 170 mA
No-load consumption 60 mA
Operating temperature -20°C to +60°C
Weight about 10 grams
