Metal micro gearmotor 12V – 500 rpm

Metal micro gearmotor suited to building robots, automated mechanisms and the like.

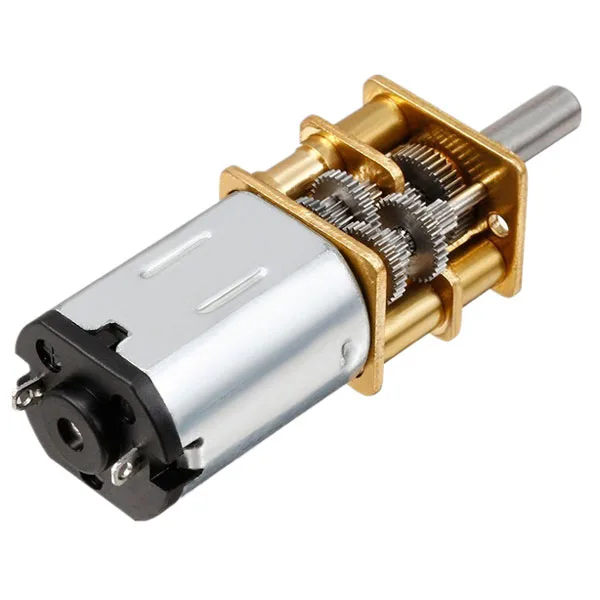

Metal micro gearmotor 12V - 500 rpm - Image 1

SKU 8300-MMG12V500EAN 8219671076869Item type: Assembled

Description

Metal micro gearmotor running at 12 Vdc with a speed of 500 rpm and a 100:1 reduction ratio. Metal “D” shaped shaft, 9.27 mm long; the brass faceplate has two threaded holes for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch). It weighs about 10 grams. Direction of rotation follows the polarity. Particularly suited to building robots, automated mechanisms and the like.
Dimensions (mm)
click to enlarge

Technical details

Nominal voltage 12 Vdc
Reduction ratio 100:1
Maximum torque 1 kg·cm
No-load speed 500 rpm
Stall current 1800 mA
No-load consumption 115 mA
Operating temperature -20°C to +60°C
Weight about 10 grams
