Metal Micro Gearmotor 6V – 100 rpm

Metal micro gearmotor, made for building robots, automated mechanisms and the like.

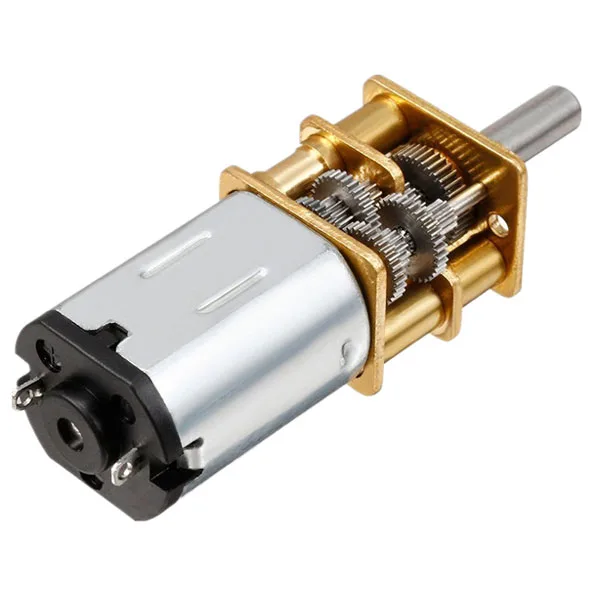

Metal Micro Gearmotor 6V - 100 rpm - Image 1

SKU 8300-MMG6V100EAN 8219671076869Item type: Assembled

Description

Metal micro gearmotor running at 6 Vdc, with a speed of 100 rpm and a 100:1 reduction ratio. Metal “D” shaped shaft, 9.27 mm long; the brass face plate has two threaded holes for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch). It weighs about 10 grams. Direction of rotation follows the polarity. Particularly suited to building robots, automated mechanisms and the like.
Dimensions (mm)
click to enlarge

Technical details

Nominal voltage 6 Vdc
Reduction ratio 100:1
Maximum torque 0.3 kg·cm
No-load speed 100 rpm
Stall current 195 mA
No-load consumption 20 mA
Operating temperature -20°C to +60°C
Weight about 10 grams
