Musical flash generator

A safe circuit, since it runs at low voltage

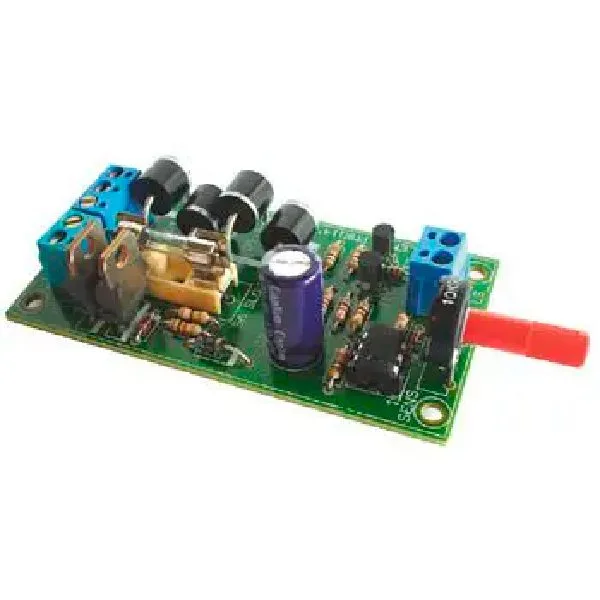

Musical flash generator - Image 1

SKU 8220-MK114EAN 5410329001148Item type: Kit

Description

Safe circuit because it is operated at low voltage. It makes a lamp flash in time with the music. Also usable with halogen lamps. Connect it in parallel to the speaker from which the audio comes: this input is opto-isolated. Sensitivity is adjustable. It can be used in a car if the lamp is isolated from the chassis.

Technical details

Input sensitivity 2W - 60W
Maximum connectable load 50W / 12V or 100W / 24V
Power supply 12V - 24V DC or AC
Dimensions 45 x 88mm (1.8" x 3.5")
